Preset Lua extension

This document describes the Preset Lua Extension for the Electra One MIDI Controller firmware. The extension introduces procedural programming capabilities to Electra One presets.

Lua is a lightweight scripting language. You can find detailed information on the Official Lua site. Alternatively, you can follow our Lua Crash Course — a short tutorial designed specifically for musicians and non-programmers.

With the Electra Preset Lua extension, you can use the Lua programming language inside Electra One MIDI controllers to easily create, manage, and customize MIDI and music-related actions.

OSC is the one place where a model differs in what it can do rather than in a number: the module is there on every model, so a preset using it loads and runs anywhere, but only the mk3 has a network behind it. :::

A brief overview

With the Electra One Preset Lua extension, you can extend and customize your presets by adding Lua functions. It allows you to create features and behaviors that simply wouldn't be possible without it. Here are just a few examples of what you can do:

Send and receive MIDI messages.
Trigger Lua functions when control values change.
Format display values.
Modify the visibility, location, name, and color of controls.
Create and remove controls, groups, devices, overlays and whole presets.
Execute custom patch dump request calls.
Craft your own SysEx parsers.
Calculate checksums and generating custom SysEx template bytes.
Run Lua functions based on MIDI clock and transport control.
Create sequences of MIDI data, clock messages, and MIDI LFOs.
Visualize MIDI data on the controller's screen, and draw controls of your own.
Record, edit and play back captures and snapshots.
Send and receive Open Sound Control over the network, on the mk3.

The core idea behind this extension is to clearly separate the static data defined in the declarative JSON preset from the dynamic processing handled at runtime through Lua scripting. The JSON preset acts as the foundation, pre-loading all pages, lists, devices, groups, and controls. Once the preset is loaded, the Preset Lua extension takes over, allowing you to manipulate these objects for specific purposes.

A script is not limited to what the preset file already holds: controls.create(), groups.create(), devices.create(), overlays.create() and presets.create() build new objects, and there are remove counterparts for them. A preset can even edit and save itself. Starting from a declarative preset is still the easier way to work — a control described in the file needs no code at all — but it is a starting point rather than a boundary.

The Lua environment

Each preset slot gets a Lua state of its own. The scripts of two presets never see each other's variables, and a preset running pinned in the background keeps its own state and its own memory.

Lua 5.4, built with 32-bit numbers (LUA_32BITS). An integer holds -2,147,483,648 to 2,147,483,647 exactly. A number with a fraction is a single-precision float, which carries about seven significant digits — so arithmetic that goes through a float stops being exact above 16,777,216, and a count of milliseconds kept as one loses whole milliseconds after about five hours.

Everything the firmware hands a script that is conceptually whole — a MIDI value, a control id, a page number, a constant, a millisecond count — arrives as an integer, so it prints without a trailing .0, can be used as a table key, and can be passed straight back to a function that insists on a whole number.

The standard libraries that are open:

module
base	`print`, `type`, `pairs`, `ipairs`, `tonumber`, `tostring`, `pcall`, `error`, `assert`, `select`, `setmetatable`, `dofile`, `loadfile`, `load`
`package`	`require`, and `package.path` - the search path it uses
`coroutine`
`table`
`string`	including `string.format`, `string.pack` and patterns
`math`
`debug`

io, os and utf8 are not open. There is no io.write, no os.time and no os.clock; use print() or logger.write() for output, and controller.uptime() or controller.micros() for time.

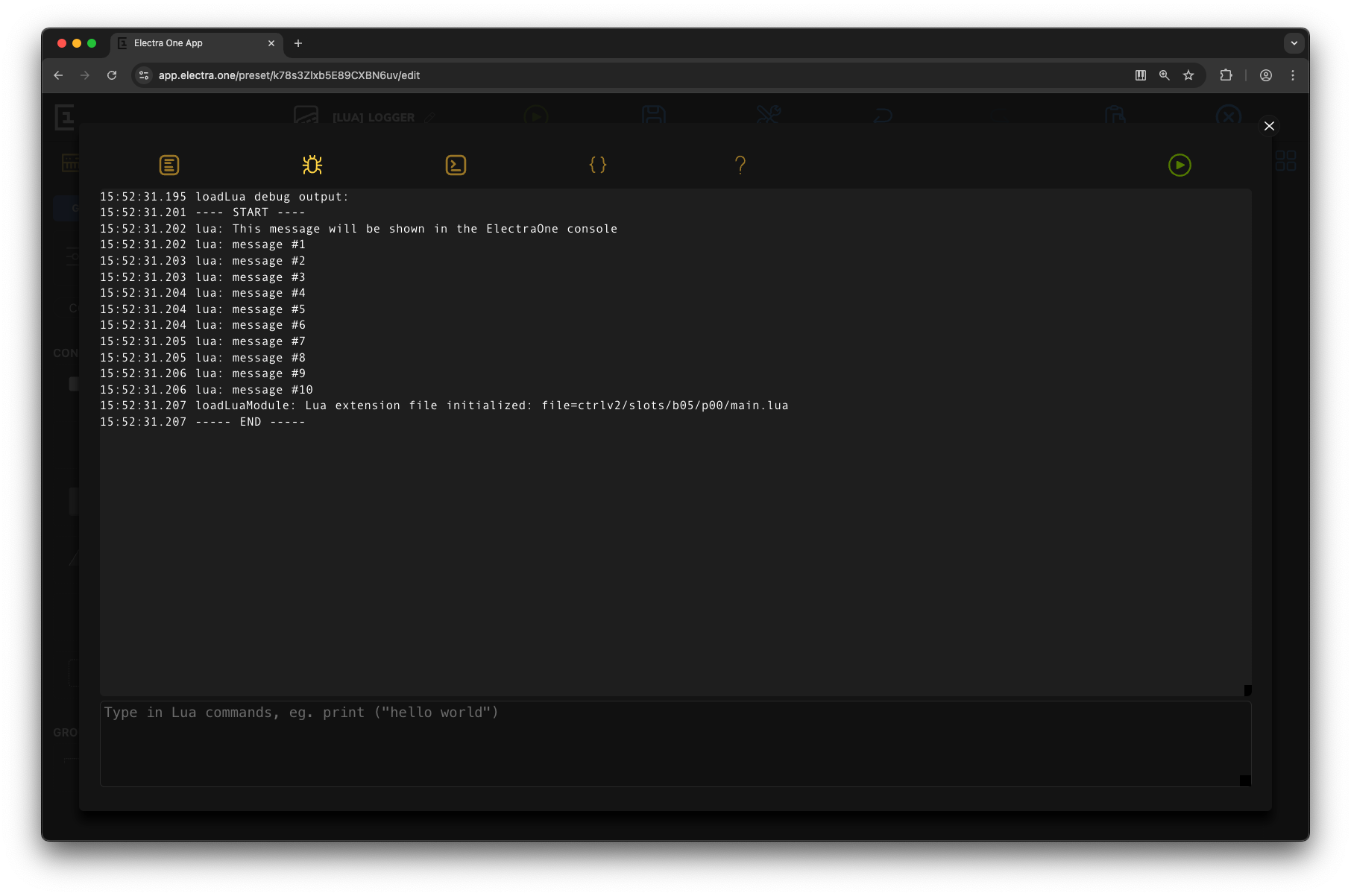

print() does not write to a console — it sends the text to the Electra One log, prefixed with lua:. See Logger.

Uploading the scripts

To enable Preset Lua extension functions within a preset, you must first upload a Lua script file. The uploaded script is then associated with the currently active preset. If a Lua script already exists for that preset, uploading a new one will overwrite it.

Uploading a script ends the state that was running — preset.onExit() is called — and starts the preset again with the new script.

Normally, each preset uses a single Lua script. If needed, you can upload multiple Lua script files that work together as one larger Lua project.

This document covers the single-file setup. Multi-file configurations are explained in a separate guide about Electra One’s file transfer and management protocol.

Uploading the scripts with the Preset Editor

You can create, edit, and upload Lua scripts directly from the Preset editor — the easiest and recommended way to work with Lua. If needed, you can also upload scripts to the Electra One MIDI Controller using a SysEx call.

Uploading the scripts with a SysEx call

0xF0 0x00 0x21 0x45 0x01 0x0C script-source-code 0xF7

Executing a Lua command with a SysEx call

This is a call that executes arbitrary Lua commands, effectively serving as an API endpoint for controlling Electra One presets from external devices and applications.

It allows you to remotely manage Electra One presets using Lua commands, offering a powerful way to interact with the controller from external sources.

The command runs in the Lua state of the preset on the screen, on the application thread, a moment after it arrives — it is queued like every other instruction from a host, not run inside the MIDI handler. A controller with no script on the screen writes a line to the log and does nothing.

A command of up to 320 bytes is carried inside the queued instruction. A longer one is copied to memory of its own first, which costs one allocation.

To optimize performance, it is better to use this SysEx call to trigger Lua functions defined in a previously uploaded Lua script, rather than sending large blocks of arbitrary Lua code.

0xF0 0x00 0x21 0x45 0x08 0x0D lua-command-text 0xF7

lua-command-text is a free-form string that holds the Lua command to be executed.

An example of the lua-command-text

lua

print ("Hello MIDI world!")

The structure of the script

The Electra One Preset Lua Extension script is organized into four distinct building blocks:

The Setup Section: This section is where you initialize and configure the settings and parameters needed for your script. It acts as the starting point for your script’s execution and often includes setup tasks like defining global variables, establishing MIDI connections, or configuring other necessary resources.
The Standard Functions: These are predefined functions included in the Electra One Preset Lua Extension scripting environment. They provide the core functionality for interacting with the MIDI controller and its features. Standard functions can be used to send and receive MIDI messages, manipulate controls, and manage various aspects of the controller's behavior.
The Standard Callbacks: Electra One provides a set of standard callback functions that allow your Lua script to respond to various events. These callbacks are invoked automatically by the system when specific events occur. For example, you can use callbacks to react to control value changes or button presses, adding dynamic and interactive behavior to your script.
The User Functions: These are custom functions that you define to extend the functionality of your Lua script. User functions allow you to implement unique behaviors, process data, and create specific responses to tailor the script to your needs. They give you the flexibility to customize the Electra One experience according to your requirements.

Once you understand and use these four building blocks, you’ll be able to create powerful Lua scripts that make your Electra One MIDI controller even more capable and flexible.

Let's use the following example to demonstrate it. It shows one group of controls at a time, chosen by the value of another control. The preset it belongs to has controls 20, 21, 22, 26, 27, 28, 32 and 33, and a control whose value names displayGroup as its Lua function.

lua

-- Display controls related to specific value of another control

-- define assignment of controls to groups
controlGroups = {
    [0] = { 20, 21, 22 },
    [1] = { 26, 27, 28 },
    [2] = { 32, 33 }
}

-- a function to hide all controls within the groups
function hideAllGroups(groups)
    for groupId = 0, #groups do
        for _, controlId in ipairs(groups[groupId]) do
            local control = controls.get(controlId)
            control:setVisible(false)
        end
    end
end

-- show given control group, laid out from the second slot of the page
function showGroup(groups, groupId)
    for i, controlId in ipairs(groups[groupId]) do
        local control = controls.get(controlId)
        control:setSlot(i + 1)
    end
end

-- the callback function called from the preset
function displayGroup(valueObject, value)
    hideAllGroups(controlGroups)
    showGroup(controlGroups, value)
end

-- a standard callback function to handle PATCH REQUEST event
function patch.onRequest(device)
    print("Requesting patches from device " .. device.id)
    midi.sendProgramChange(PORT_1, device.channel, 10)
end

-- set the initial state. group 0 is displayed
function preset.onReady()
    hideAllGroups(controlGroups)
    showGroup(controlGroups, 0)
end

print("Lua ext initialized")

The setup

The setup section includes all source code that exists outside of any specific function and runs in the global context of the script. In this section, you can perform various tasks such as calling standard functions, executing user-defined functions, initializing global variables, and setting up resources.

Below is an example of a typical setup section from a script:

lua

-- define assignment of controls to groups
controlGroups = {
    [0] = { 20, 21, 22 },
    [1] = { 26, 27, 28 },
    [2] = { 32, 33 }
}

print("Lua ext initialized")

The primary purpose of the setup section is to prepare your extension to handle application events later on. It is executed immediately after the preset is loaded.

The location of the setup code within the script does not affect its functionality — it does not have to be placed at the top. However, if you plan to call your own user-defined functions in the setup section, it’s recommended to either place the setup code after the function definitions or move it into the preset.onLoad() or preset.onReady() functions for better script organization. For more details, see the Preset Initialization section below.

There is one thing the setup section must do rather than may: any midi.onX callback has to be defined by the time the main chunk ends. Those callbacks are registered the moment the chunk returns, and one defined later — in onLoad(), in a timer, in another callback — is never registered and never runs.

The standard functions

Standard functions include functions from both the Lua standard libraries and the Electra One Extension libraries. They cover a wide range of tasks, such as printing messages, performing mathematical operations, sending and receiving MIDI messages, and interacting with user interface (UI) components.

You can find detailed descriptions of the Lua standard functions in the official Lua documentation, and descriptions of Electra-specific functions in the API reference at the end of this page.

As an example, the print function is a typical standard function you will use in your scripts:

lua

print("Lua ext initialized")

The standard callbacks

The Electra One Preset Lua Extension provides a set of predefined event handlers, often called callbacks. These callbacks are automatically triggered when specific events happen.

For example:

lua

-- a standard callback function to handle PATCH REQUEST event
function patch.onRequest(device)
    print("Requesting patches from device " .. device.id)
    midi.sendProgramChange(PORT_1, device.channel, 10)
end

In this code snippet, the patch.onRequest function is a standard callback that responds to the 'PATCH REQUEST' event. When the event occurs, this callback runs the actions you have defined: printing a text message and sending out a Program Change MIDI message.

Standard callbacks like this allow you to customize how your Lua script reacts to different events, making your Electra One MIDI controller more interactive and adaptable.

Most of them are named on a module — preset.onLoad, midi.onControlChange, patch.onRequest, timer.onTick, pages.onChange, parameterMap.onChange. Each is described with the module it belongs to, in the topic pages listed at the end.

The user functions

As a user, you have the creative freedom to define your own functions. In fact, you are encouraged to do so — user functions are the building blocks for creating more advanced and structured elements in your Lua script.

User functions help you organize your code and extend your script’s capabilities. They let you group specific tasks or behaviors together, making your scripts more modular, easier to manage, and easier to reuse.

For example, the displayGroup function from the earlier source code example is a user-defined function that is linked to a callback hook inside the preset JSON.

lua

-- the callback function called from the preset
function displayGroup(valueObject, value)
    hideAllGroups(controlGroups)
    showGroup(controlGroups, value)
end

A function named by the preset JSON has to be a global function, because the firmware looks it up by name. The local function form is for helpers the script calls itself.

Preset initialization

Some presets may require a carefully controlled sequence of actions during startup. The Electra One Preset Lua Extension gives you ways to run your own functions at different stages of the preset loading process. It’s important to understand the order in which these stages happen.

When a preset is read into a slot — at power on, or when you switch to a preset that is not already in memory — the following steps take place:

The preset file is read. Pages, devices, overlays, groups and controls are built, and every control value registers its parameter map entry, so the values are in place before any script runs.
Everything in the global context of your Lua script (outside of any function) is executed.
The midi.* callbacks the script defined are registered.
preset.onLoad() is called, if defined.
The parameter map makes its first pass: formatters run for every control value, and value functions do not - a control's function is for a change, and loading is not one.
preset.onReady() is called, if defined.
preset.onEnter() is called, if defined.

Switching back to a preset that is already in memory does not repeat any of that: only preset.onEnter() runs again. preset.onLeave() runs on the preset being left, and preset.onExit() when its Lua state is closed.

Which one to use

preset.onLoad() runs before the first pass, so nothing it sets is visible yet: it is meant to set up the global context - variables, tables, constants the rest of the script relies on. preset.onReady() runs after that pass, when the preset is in a known state, and is where start-up work belongs - pinning, starting a timer, requesting a patch. The Loading a preset section of the System architecture explains the sequence and what it means for a script.

The Presets and Events page describes the five lifecycle callbacks in full, including what happens to timers, MIDI callbacks and pinned presets at each step.

Threads and timing

Almost all of a preset's Lua runs on one thread — the application thread — and only one piece of a preset's script runs at a time. A preset's Lua state is held by a lock, so a timer tick cannot interrupt a MIDI callback half way through, and a script never has to guard its own variables.

Runs on
Application thread	the main chunk and the lifecycle callbacks; every `midi.*` callback; `patch.onRequest` and `patch.onResponse`; `timer.onTick`; scheduled functions; transport callbacks; value functions and formatters; control event callbacks; touch, knob and switch callbacks of a custom control; data pipe subscriptions; router events; the execute-command SysEx
Display thread	a custom control's paint callback, and nothing else

The one consequence to keep in mind: long work blocks the screen and the preset. While a timer tick or a MIDI callback is running, the preset's paint callbacks cannot take the lock. A paint that cannot take it within 20 ms gives up the frame and the control keeps the picture it had, so a script that computes for tens of milliseconds at a time shows as a screen that will not follow the knobs.

The rules that follow from it:

Do a little work often rather than a lot of work at once. A timer at 50 Hz that does a millisecond of work each tick costs nothing visible; one that does 50 ms every second is seen.
Do not use helpers.delay() to wait. It holds the lock for its whole length. Use schedule.after() or midi.at() instead — both let the script return.
Keep paint callbacks to drawing. Compute what to draw elsewhere, store it, and let the paint function put it on the screen.
Anything a script does while the display thread is waiting is delaying the display thread, and the display thread is what makes the instrument feel responsive.

Errors and limits

An error in a Lua script never takes the controller down. Every entry point is protected: the error is written to the log and the callback is abandoned. The rest of the preset keeps running.

The script did not load. A syntax error, or an error raised by the main chunk, leaves the preset with no script at all — a preset that looks like it works and does nothing. The controller says so in the bar at the bottom of the screen, as Lua: <the message>, and writes the whole message to the log.

A callback raised an error. The line goes to the log with the name of the function that failed. The logger is off by default for the controller's own messages, but never for a script's, so print() and logger.write() always come out; for everything else, turn the log on in the Electra One web application while writing a preset.

A callback that will not end. timer.onTick and a scheduled function are watched: one that runs for more than ten seconds is stopped where it is. The timer is disabled, or the whole schedule is cleared, the bar says Preset N timer stopped: it ran past the ten second limit, and the log says what to do — fix the function and call timer.enable() or schedule it again.

A script the controller cannot get out of. Holding all six main buttons together for two seconds stops every preset timer and clears every schedule. It is the way out of a while true do end when the host is not answering: the grip is read by a thread that keeps running even when the application thread does not.

Memory. Each preset's Lua state has its own heap, and controller.memory() reports how much of it the script is using. A preset that stops working as it grows has usually run out; the usual causes are a table that is appended to and never trimmed, and a callback that builds a new table every time it runs.

Ranges. Arguments are checked. A MIDI value outside 0 to 16383, a control id that does not exist, a port that is not 0 to 2, a face or size a font does not have: all of them raise an error naming the argument, rather than sending or drawing something arbitrary. Where a value is silently clamped instead, the function's own description says so.

Keeping data between sessions

A preset can write a Lua table to its own file on the card and read it back the next time it is loaded — persist(table) and recall(table), or persistJson() and recallJson() for the same file as text. One file per preset slot, written when the script asks and not otherwise. See System.

Preset Lua Extension API Reference

Interfaces and ports

Every MIDI message the controller sends goes to an interface and a port.

An interface is a socket, or the set of all of them:

Constant	Value	What it is
`MIDI_IO`	0	the DIN sockets
`USB_DEV`	1	the USB device socket, the one a computer is plugged into
`USB_HOST`	2	the USB host socket, the one instruments are plugged into
`ALL_INTERFACES`	3	all three of the above
`CAPTURE`	5	not a socket - see below

A port is a cable within an interface:

Constant	Value
`PORT_1`	0
`PORT_2`	1
`PORT_CTRL`	2

PORT_CTRL is the cable the Electra One uses for its own control traffic. It is accepted by every send function, but a preset that sends musical data there is talking over the editor.

CAPTURE is not a socket. It is the capture the script has open for writing: a send addressed to it is written into that capture's track at the write position instead of going out. It is deliberately not part of ALL_INTERFACES, so sending to every interface never writes to a file.

The interface argument is optional

Every send function takes the interface as an optional first argument. Left out, the message goes to ALL_INTERFACES:

lua

midi.sendNoteOff(PORT_1, channel, noteNumber, velocity)             -- everywhere
midi.sendNoteOff(MIDI_IO, PORT_1, channel, noteNumber, velocity)    -- DIN only

The firmware tells the two forms apart by counting the arguments, so all the other arguments have to be there. midi.sendNoteOn(PORT_1, 1, 60) is not a note on with a default velocity; it is four arguments where five are needed and the missing one is read off the stack, which produces nonsense rather than a clean error.

The functions with optional switches at the end - midi.sendNrpn() and midi.sendControlChange14Bit() - set trailing booleans and nils aside before counting, so midi.sendNrpn(PORT_1, 1, 512, 8192, true) is understood as a port and a switch. A switch written as 0 or 1 is understood too, but only when the interface is given as well; with no interface, midi.sendNrpn(PORT_1, 1, 512, 8192, 1) reads the trailing 1 as an interface and sends nothing useful. Use true and false.

Running status

A DIN output may leave out the status byte of a message when the wire already carries it. The midi.send* functions never do this - every message goes out whole. Running status is a property of a preset device, so only what a device sends, and what the router forwards, can use it.

Example

lua

-- Forwards every control change that arrives on the USB host socket out of
-- the DIN sockets, and says where it came from.

local interfaceNames = {
    [MIDI_IO] = "MIDI IO",
    [USB_DEV] = "USB device",
    [USB_HOST] = "USB host",
    [CAPTURE] = "capture"
}

function midi.onControlChange(midiInput, channel, controllerNumber, value)
    if midiInput.playback then
        return                       -- already went out, do not send it twice
    end

    print(string.format("%s port %d: cc %d = %d",
                        interfaceNames[midiInput.interface] or "?",
                        midiInput.port + 1,
                        controllerNumber,
                        value))

    if midiInput.interface == USB_HOST then
        midi.sendControlChange(MIDI_IO, PORT_1, channel, controllerNumber, value)
    end
end

MIDI callbacks

MIDI callbacks handle incoming MIDI messages. The general midi.onMessage() callback is called for any incoming MIDI message; the specific callbacks are called only for their own message type.

The first parameter of every callback is midiInput, a table that says where the message came from:

lua

midiInput = {
  interface = USB_DEV,  -- an integer, one of the interface constants
  port = PORT_1,        -- an integer, PORT_1 is 0
  playback = true       -- present only for a message a capture played
}

interface and port are numbers, not names.

A capture that plays hands what it sends back to the presets, as if the socket it went to had answered with it - see What a playing capture tells the presets. Those messages reach the same callbacks as received MIDI, and their midiInput carries playback = true, with interface and port naming where the capture sent them. For received MIDI the field is absent, so the table is exactly what it always was. A script that passes on what it hears should leave playback out, because it has already gone out:

lua

function midi.onControlChange(midiInput, channel, controllerNumber, value)
    if midiInput.playback then
        return
    end

    midi.sendControlChange(PORT_2, channel, controllerNumber, value)
end

The transport callbacks - transport.onClock(), onStart(), onStop() and onContinue() - are not called for playback: the transport follows the clock that arrives, not a capture playing one back. They are also the only callbacks the controller's own internal clock reaches; midi.onClock() is about what comes in on a wire. A transport callback that is told about the internal clock gets { internal = true } in place of the usual midiInput table, with no interface and no port.

The second key structure is midiMessage, which midi.onMessage() is given. It carries one MIDI message broken down into its parts, and is described under MIDI data structures.

When callbacks run

A message arrives on the MIDI thread, and its Lua callbacks are queued and run later on the application thread - the same thread that builds pages, paints the display and runs every other preset's script. This matters:

A callback runs within a millisecond or two of the message arriving, but tens of milliseconds later while a page is being built. Nothing a callback sends is precisely timed. midi.at() is the way to send on time; see Sending at a precise time.
A callback that takes a long time delays the display and every other callback. Never call anything blocking from one.
Errors raised in a callback are written to the log and the message is dropped. They do not stop the preset.

Callbacks are registered when the preset is loaded: immediately after the script's main chunk has run and before preset.onLoad(). The firmware looks for them by name at that moment and never again, so a midi.onNoteOn assigned later - in onLoad(), in a timer, from lua exec - is never called. Define every callback at the top level of the script.

Every loaded preset gets its callbacks, not only the one on screen: a pinned preset in the background keeps receiving MIDI.

Registering a callback costs work on every matching message, so do not define empty callback functions.

The callback queue

Messages waiting for their callbacks sit in a queue 128 deep. Each pass of the application thread runs at least 16 of them, and goes on draining up to 64 for as long as a 500 microsecond budget lasts. SysEx is carried separately, in a ring of 16 messages; a block is copied before the script sees it, so a script may take as long as it likes over it.

When the queue is full the message is dropped and counted. A preset that sheds callbacks is doing too much work in them.

midi.getDroppedCallbacks()

The count of MIDI callbacks that were never run: a message that found the queue full, or a SysEx block that was overwritten before its turn came. It is a controller-wide count since boot, not a per-preset one, and it never resets.

A script that wants to know whether it is keeping up reads it twice and compares.

Returns

number, how many MIDI callbacks have been dropped since the controller booted.

Firing order

One incoming control change can run several callbacks, always in this order:

midi.onControlChange()
midi.onNrpn() or midi.onRpn(), if the run is complete
midi.onControlChange14Bit(), if the pair is complete
midi.onMessage()

For a SysEx message it is midi.onSysex() and then midi.onMessage(). For everything else the specific callback runs first and midi.onMessage() last.

Functions

midi.onMessage(midiInput, midiMessage)

A user-defined callback function to handle all types of MIDI messages.

It is not called for the controller's own internal clock. For a SysEx message the table holds only type and sysexBlock.

Parameters

midiInput

data table, where the message came from (see above).

midiMessage

data table, a structured representation of the incoming MIDI message.

midi.onNoteOn(midiInput, channel, noteNumber, velocity)

A user-defined callback function to handle Note On MIDI messages.

A Note On with velocity 0 is reported here, not as a Note Off. Instruments that use it as a note off are common, so a script that tracks held notes must test for it.

Parameters

midiInput

data table, where the message came from (see above).

channel

number, the MIDI channel (1 .. 16).

noteNumber

number, the MIDI note (0 .. 127).

velocity

number, the note velocity (0 .. 127).

midi.onNoteOff(midiInput, channel, noteNumber, velocity)

A user-defined callback function to handle Note Off MIDI messages.

Parameters

midiInput

data table, where the message came from (see above).

channel

number, the MIDI channel (1 .. 16).

noteNumber

number, the MIDI note (0 .. 127).

velocity

number, the release velocity (0 .. 127).

midi.onControlChange(midiInput, channel, controllerNumber, value)

A user-defined callback function to handle Control Change MIDI messages.

Every control change is reported here, including the ones that make up an NRPN, an RPN or a 14-bit control change.

Parameters

midiInput

data table, where the message came from (see above).

channel

number, the MIDI channel (1 .. 16).

controllerNumber

number, the Control Change parameter (0 .. 127).

value

number, the Control Change value (0 .. 127).

midi.onNrpn(midiInput, channel, parameterNumber, value, is14Bit)

A user-defined callback function to handle NRPN messages.

An NRPN is not a message on the wire - it is a run of ordinary control changes (CC 99, CC 98, CC 6 and optionally CC 38), and the controller assembles it. midi.onControlChange() still reports each of those individually; this reports what they add up to.

Many instruments send only the coarse form and never a data entry LSB, so the callback runs as soon as CC 6 arrives, with is14Bit false. Where the LSB does follow, the callback runs again with the full fourteen bits and is14Bit true.

The run is assembled per source - interface, port and channel - so two instruments sending NRPNs at the same time do not confuse each other.

A repeated CC 6 reuses the last LSB

Once a data entry LSB has been seen for a parameter, a further CC 6 on its own is reported with is14Bit true and that old LSB. An instrument that sends coarse-only changes after a fine one therefore reports values that are fourteen bits wide but whose bottom seven bits are stale.

Parameters

midiInput

data table, where the message came from (see above).

channel

number, the MIDI channel (1 .. 16).

parameterNumber

number, the NRPN parameter (0 .. 16383).

value

number, the value (0 .. 127 coarse, 0 .. 16383 with its LSB).

is14Bit

boolean, true when the value carries all fourteen bits.

midi.onRpn(midiInput, channel, parameterNumber, value, is14Bit)

A user-defined callback function to handle RPN messages - the same run of control changes as an NRPN, on CC 101 and CC 100 rather than CC 99 and CC 98. Pitch bend range, fine tuning and coarse tuning are RPN 0, 1 and 2.

The is14Bit note on midi.onNrpn() applies here too.

Parameters

midiInput

data table, where the message came from (see above).

channel

number, the MIDI channel (1 .. 16).

parameterNumber

number, the RPN parameter (0 .. 16383).

value

number, the value (0 .. 127 coarse, 0 .. 16383 with its LSB).

is14Bit

boolean, true when the value carries all fourteen bits.

midi.onControlChange14Bit(midiInput, channel, controllerNumber, value, is14Bit)

A user-defined callback function to handle 14-bit Control Change messages - a controller in the range 0 to 31 carrying the MSB, and the controller 32 higher carrying the LSB.

The two halves do not have to arrive back to back: each of controllers 0 to 31 remembers the MSB it last had, so interleaved pairs are assembled correctly. An LSB on its own is a fine adjustment and is reported with the MSB its controller already has - so a controller can report a value before its MSB has ever changed again.

midi.onControlChange() still reports both halves individually.

Parameters

midiInput

data table, where the message came from (see above).

channel

number, the MIDI channel (1 .. 16).

controllerNumber

number, the MSB controller (0 .. 31).

value

number, the assembled value (0 .. 16383).

is14Bit

boolean, always true here; the argument is there so the three composite callbacks have one shape.

::: warnning One control change can be two composite messages CC 6 and CC 38 are the RPN/NRPN data entry pair, and they are also a 14-bit CC pair. A preset with both midi.onNrpn and midi.onControlChange14Bit is told about both rather than one of them silently winning. :::

midi.onAfterTouchPoly(midiInput, channel, noteNumber, pressure)

A user-defined callback function to handle Polyphonic Aftertouch MIDI messages.

Parameters

midiInput

data table, where the message came from (see above).

channel

number, the MIDI channel (1 .. 16).

noteNumber

number, the MIDI note (0 .. 127).

pressure

number, the pressure (0 .. 127).

midi.onAfterTouchChannel(midiInput, channel, pressure)

A user-defined callback function to handle Channel Aftertouch MIDI messages.

Parameters

midiInput

data table, where the message came from (see above).

channel

number, the MIDI channel (1 .. 16).

pressure

number, the pressure (0 .. 127).

midi.onProgramChange(midiInput, channel, programNumber)

A user-defined callback function to handle Program Change MIDI messages.

Parameters

midiInput

data table, where the message came from (see above).

channel

number, the MIDI channel (1 .. 16).

programNumber

number, the MIDI program number (0 .. 127).

midi.onPitchBend(midiInput, channel, value)

A user-defined callback function to handle Pitch Bend MIDI messages.

The value is signed and centred on 0, which is the same number midi.sendPitchBend() takes. midi.onMessage() reports the same message unsigned, as the raw 0 to 16383.

Parameters

midiInput

data table, where the message came from (see above).

channel

number, the MIDI channel (1 .. 16).

value

number, the amount of Pitch Bend applied (-8192 .. 8191), centred on 0.

midi.onSongSelect(midiInput, songNumber)

A user-defined callback function to handle Song Select MIDI messages.

Parameters

midiInput

data table, where the message came from (see above).

songNumber

number, a numeric identifier of the song (0 .. 127).

midi.onSongPosition(midiInput, position)

A user-defined callback function to handle Song Position Pointer MIDI messages.

Parameters

midiInput

data table, where the message came from (see above).

position

number, MIDI beats from the start of the song (0 .. 16383). One MIDI beat is a sixteenth note.

midi.onClock(midiInput)

A user-defined callback function to handle Clock MIDI messages. There are 24 Clock messages per quarter note.

Only clocks that arrive on a socket reach this callback. The controller's own internal clock reaches transport.onClock() instead.

At 120 BPM this runs 48 times a second, on the application thread, for every preset that defines it. Keep it very short, or follow the clock with transport instead.

Parameters

midiInput

data table, where the message came from (see above).

midi.onStart(midiInput)

A user-defined callback function to handle Start MIDI messages.

Parameters

midiInput

data table, where the message came from (see above).

midi.onStop(midiInput)

A user-defined callback function to handle Stop MIDI messages.

Parameters

midiInput

data table, where the message came from (see above).

midi.onContinue(midiInput)

A user-defined callback function to handle Continue MIDI messages.

Parameters

midiInput

data table, where the message came from (see above).

midi.onActiveSensing(midiInput)

A user-defined callback function to handle Active Sensing MIDI messages.

An instrument that sends Active Sensing sends it about three times a second while it is idle, and it is not filtered out on the way here.

Parameters

midiInput

data table, where the message came from (see above).

midi.onSystemReset(midiInput)

A user-defined callback function to handle System Reset MIDI messages.

Parameters

midiInput

data table, where the message came from (see above).

midi.onTuneRequest(midiInput)

A user-defined callback function to handle Tune Request MIDI messages.

Parameters

midiInput

data table, where the message came from (see above).

midi.onSysex(midiInput, sysexBlock)

A user-defined callback function to handle SysEx MIDI messages. It is given every SysEx the controller receives, unless the preset names the headers it wants with midi.setSysexHeaders().

The block is valid only while the callback runs. Keeping a reference to it and reading it later gives whatever has since been written over it - read what is needed, or copy it out with sysexBlock:getBytes(), before returning.

SysEx addressed to the Electra One itself - the messages whose manufacturer id is 00 21 45 - is handled by the controller and never reaches this callback or midi.onMessage().

There is no length limit a preset needs to worry about: a message of up to 128 kB reaches the script whole.

Parameters

midiInput

data table, where the message came from (see above).

sysexBlock

userdata, a SysexBlock object holding the message, framing included.

Receiving only the SysEx you want

A script that handles one device's SysEx usually starts midi.onSysex() by checking the first few bytes and returning when they do not match. Name those bytes with midi.setSysexHeaders() instead, and the controller does the check itself. A SysEx that matches none of the headers never reaches the script, and is not even copied for it, so a busy MIDI bus costs the preset nothing.

midi.setSysexHeaders(headers)

Sets the headers a SysEx must start with to reach midi.onSysex(). A SysEx matches when it starts with any one of them.

A header is written like the bytes of a SysEx template:

the bytes that follow the F0, as numbers or hex strings (0x43 or '43')
a leading 'F0' is allowed and ignored, so a header can be copied off a template
midi.ANY matches any byte in its position, such as a device ID or a channel nibble

A preset can set up to 8 headers of up to 16 bytes each. A byte over 127, an empty header or too many headers raises an error, and the headers set before the call stay in place.

Until a preset calls midi.setSysexHeaders(), midi.onSysex() is given every SysEx, as it always was. The headers apply to midi.onSysex() only: midi.onMessage() is still given every SysEx. They stay with the preset while it is pinned or left and returned to, and a new script starts without them.

Parameters

headers

array, a list of headers, or a single header. nil or an empty list goes back to every SysEx.

midi.getSysexHeaders()

Retrieves the headers set with midi.setSysexHeaders(). A leading F0, and hex strings, come back as plain numbers.

Returns

array, the headers as lists of bytes, with midi.ANY where any byte matches; nil when the preset has not set any.

midi.ANY is the template element { type = "any" }. It means the same thing in a header and in a device message template, so device:setMessage(id, { 'F0', 0x43, midi.ANY, 0x00 }, 'in') works as well.

Example

lua

-- Yamaha parameter changes on any device channel (0x10 to 0x1F), and Roland
-- DT1 data sets from any device ID. Nothing else reaches the callback.

midi.setSysexHeaders({
    { 0x43, midi.ANY },
    { 0x41, midi.ANY, 0x00, 0x00, 0x6A, 0x12 },
})

function midi.onSysex(midiInput, sysexBlock)
    if sysexBlock:peek(2) == 0x43 then
        -- a Yamaha message
    else
        -- a Roland DT1
    end
end

Example 1

lua

-- Receiving MIDI messages with the generic midi.onMessage() callback

function midi.onMessage(midiInput, midiMessage)
    if midiMessage.type == SYSEX then
        print("sysex message received: interface=" .. midiInput.interface)

        local sysexBlock = midiMessage.sysexBlock

        print(sysexBlock:toHex())
    else
        -- the generic approach, using data1 and data2
        print("midi message received: interface=" .. midiInput.interface ..
              " channel=" .. midiMessage.channel ..
              " type=" .. midiMessage.type ..
              " data1=" .. midiMessage.data1 ..
              " data2=" .. midiMessage.data2)

        -- message type specific attributes
        if midiMessage.type == NOTE_ON then
            print("noteOn received: channel=" .. midiMessage.channel ..
                  " noteNumber=" .. midiMessage.noteNumber ..
                  " velocity=" .. midiMessage.velocity)
        end
    end
end

Example 2

lua

-- A complete monitor preset: every callback the firmware calls, and the
-- dropped-callback count once a second.

function midi.onControlChange(midiInput, channel, controllerNumber, value)
    print("controlChange: channel=" .. channel ..
          " controllerNumber=" .. controllerNumber .. " value=" .. value)
end

function midi.onNoteOn(midiInput, channel, noteNumber, velocity)
    print("noteOn: channel=" .. channel ..
          " noteNumber=" .. noteNumber .. " velocity=" .. velocity)
end

function midi.onNoteOff(midiInput, channel, noteNumber, velocity)
    print("noteOff: channel=" .. channel ..
          " noteNumber=" .. noteNumber .. " velocity=" .. velocity)
end

function midi.onAfterTouchPoly(midiInput, channel, noteNumber, pressure)
    print("afterTouchPoly: channel=" .. channel ..
          " noteNumber=" .. noteNumber .. " pressure=" .. pressure)
end

function midi.onAfterTouchChannel(midiInput, channel, pressure)
    print("afterTouchChannel: channel=" .. channel .. " pressure=" .. pressure)
end

function midi.onProgramChange(midiInput, channel, programNumber)
    print("programChange: channel=" .. channel ..
          " programNumber=" .. programNumber)
end

function midi.onPitchBend(midiInput, channel, value)
    print("pitchBend: channel=" .. channel .. " value=" .. value)
end

function midi.onNrpn(midiInput, channel, parameterNumber, value, is14Bit)
    print("nrpn: channel=" .. channel ..
          " parameterNumber=" .. parameterNumber ..
          " value=" .. value .. " is14Bit=" .. tostring(is14Bit))
end

function midi.onRpn(midiInput, channel, parameterNumber, value, is14Bit)
    print("rpn: channel=" .. channel ..
          " parameterNumber=" .. parameterNumber ..
          " value=" .. value .. " is14Bit=" .. tostring(is14Bit))
end

function midi.onControlChange14Bit(midiInput, channel, controllerNumber, value)
    print("cc14: channel=" .. channel ..
          " controllerNumber=" .. controllerNumber .. " value=" .. value)
end

function midi.onSongSelect(midiInput, songNumber)
    print("songSelect: songNumber=" .. songNumber)
end

function midi.onSongPosition(midiInput, position)
    print("songPosition: position=" .. position)
end

function midi.onStart(midiInput)
    print("start")
end

function midi.onStop(midiInput)
    print("stop")
end

function midi.onContinue(midiInput)
    print("continue")
end

function midi.onSystemReset(midiInput)
    print("system reset")
end

function midi.onTuneRequest(midiInput)
    print("tune request")
end

function midi.onSysex(midiInput, sysexBlock)
    print("sysex, " .. sysexBlock:getLength() .. " bytes: " ..
          sysexBlock:toHex(1, 8) .. " ...")
end

local lastDropped = midi.getDroppedCallbacks()

function timer.onTick()
    local dropped = midi.getDroppedCallbacks()

    if dropped ~= lastDropped then
        print("dropped " .. (dropped - lastDropped) .. " callbacks")
        lastDropped = dropped
    end
end

timer.setPeriod(1000)
timer.enable()

MIDI functions

The MIDI module sends raw MIDI messages. There are two ways to send: compose a midiMessage table and pass it to midi.sendMessage(), or call the function for the message type, such as midi.sendNoteOn().

Every one of them takes an optional leading interface argument, described under Interfaces and ports. None of them returns anything.

An argument outside its range raises an error. The ranges are: channel 1 to 16, seven-bit values 0 to 127, fourteen-bit values 0 to 16383, pitch bend -8192 to 8191, port 0 to 2, interface 0 to 5.

The messages leave through the output queues as soon as the script sends them, unless midi.at() is holding them back.

Functions

Note

The prototypes below write the optional leading interface as [interface, ]. Left out, the message goes to every interface.

midi.sendMessage([interface, ] port, midiMessage)

A function to send a MIDI message defined in a midiMessage data table.

It takes what midi.onMessage() gives, including SysEx, which arrives as a sysexBlock field. So forwarding everything that reaches one interface out of another is one line:

lua

function midi.onMessage(midiInput, midiMessage)
    midi.sendMessage(USB_HOST, PORT_1, midiMessage)
end

interface

enum, optional, the MIDI interface. Defaults to ALL_INTERFACES.

port

enum, the MIDI port [PORT_1, PORT_2, PORT_CTRL].

channel

number, the MIDI channel (1 .. 16).

pressure

number, the pressure (0 .. 127).

midi.sendProgramChange([interface, ] port, channel, programNumber)

A function to send a Program Change MIDI message.

Parameters

interface

enum, optional, the MIDI interface. Defaults to ALL_INTERFACES.

port

enum, the MIDI port [PORT_1, PORT_2, PORT_CTRL].

channel

number, the MIDI channel (1 .. 16).

programNumber

number, the MIDI program number (0 .. 127).

midi.sendPitchBend([interface, ] port, channel, value)

A function to send a Pitch Bend MIDI message.

The channel argument is required. The value is signed and centred on 0, the same number midi.onPitchBend() reports.

Parameters

interface

enum, optional, the MIDI interface. Defaults to ALL_INTERFACES.

port

enum, the MIDI port [PORT_1, PORT_2, PORT_CTRL].

channel

number, the MIDI channel (1 .. 16).

value

number, the amount of Pitch Bend to apply (-8192 .. 8191). 0 is the centre.

midi.sendSongSelect([interface, ] port, songNumber)

A function to send a Song Select MIDI message.

Parameters

interface

enum, optional, the MIDI interface. Defaults to ALL_INTERFACES.

port

enum, the MIDI port [PORT_1, PORT_2, PORT_CTRL].

songNumber

number, a numeric identifier of the song (0 .. 127).

midi.sendSongPosition([interface, ] port, position)

A function to send a Song Position Pointer MIDI message.

Parameters

interface

enum, optional, the MIDI interface. Defaults to ALL_INTERFACES.

port


a SysexBlock	sent exactly as it stands, framing included - so what `midi.onSysex()` or `patch.onResponse()` handed over can be echoed or forwarded without unpacking it
an array of numbers	the body; the leading `0xF0` and trailing `0xF7` are added
a string	the same, and what the SysexBlock run readers answer - so `block:getBytes(2, 6)` can go straight back out

For the array and the string, a byte over 0x7F cannot travel inside a SysEx message and is skipped, with a line in the log. A SysexBlock is not checked; it is sent byte for byte as it was built.

Array items are read with an integer conversion, so 0x41 and 65.0 are both accepted and 65.5 raises. A value above 255 is truncated into a byte rather than raising.

Long arrays and captures

An array body longer than 59 bytes goes out on a real interface in chunks. A message bound for a CAPTURE is gathered whole first and recorded as one SysEx message, so any of the three forms can be captured.

Parameters

interface

enum, optional, the MIDI interface. Defaults to ALL_INTERFACES.

port

enum, the MIDI port [PORT_1, PORT_2, PORT_CTRL].

data

a SysexBlock, an array of numbers, or a string of bytes.

midi.sendNrpn([interface, ] port, channel, parameterNumber, value [, lsbFirst] [, resetRpn])

A function to send an NRPN MIDI message: CC 99 and CC 98 select the parameter, then CC 6 and CC 38 carry the value.

Pass true and false for the switches, not 0 and 1 - see The interface argument is optional.

Parameters

interface

enum, optional, the MIDI interface. Defaults to ALL_INTERFACES.

port

enum, the MIDI port [PORT_1, PORT_2, PORT_CTRL].

channel

number, the MIDI channel (1 .. 16).

parameterNumber

number, the NRPN parameter (0 .. 16383).

value

number, the value (0 .. 16383).

lsbFirst

boolean, optional, when true the LSB is sent before the MSB. Defaults to false.

resetRpn

boolean, optional, when true CC 101 and CC 100 are sent as 127 afterwards, deselecting the parameter. Defaults to true.

midi.sendRpn([interface, ] port, channel, parameterNumber, value)

A function to send an RPN MIDI message: CC 101 and CC 100 select the parameter, then CC 6 and CC 38 carry the value.

The reset - CC 101 and CC 100 as 127 - is always sent afterwards. There is no switch for it here, and no lsbFirst.

Parameters

interface

enum, optional, the MIDI interface. Defaults to ALL_INTERFACES.

port

enum, the MIDI port [PORT_1, PORT_2, PORT_CTRL].

channel

number, the MIDI channel (1 .. 16).

parameterNumber

number, the RPN parameter (0 .. 16383).

value

number, the value (0 .. 16383).

midi.sendControlChange14Bit([interface, ] port, channel, controllerNumber, value [, lsbFirst])

A function to send a 14-bit Control Change MIDI message: the value's MSB on controllerNumber and its LSB on controllerNumber + 32.

The name is sendControlChange14Bit, with the Bit.

controllerNumber is checked as a fourteen-bit number rather than against the 0 to 31 that a 14-bit pair needs, so a larger number is accepted and produces controller numbers that are not what was meant. Keep it within 0 to 31.

Parameters

interface

enum, optional, the MIDI interface. Defaults to ALL_INTERFACES.

port

enum, the MIDI port [PORT_1, PORT_2, PORT_CTRL].

channel

number, the MIDI channel (1 .. 16).

controllerNumber

number, the MSB controller. Use 0 .. 31; the LSB goes out on controllerNumber + 32.

value

number, the value (0 .. 16383).

lsbFirst

boolean, optional, when true the LSB is sent before the MSB. Defaults to false.

midi.flush()

Does nothing. It is kept so that older scripts still run.

Outbound MIDI is handed to the output queues as each message is sent, and the output threads drain them; there is nothing for a script to flush.

Example

lua

-- Sending MIDI messages with midi.sendMessage()

-- Control Change
midi.sendMessage(PORT_1, {
    channel = 1,
    type = CONTROL_CHANGE,
    controllerNumber = 1,
    value = 127
})

-- Note On
midi.sendMessage(PORT_1, {
    channel = 1,
    type = NOTE_ON,
    noteNumber = 60,
    velocity = 100
})

-- Note Off
midi.sendMessage(PORT_1, {
    channel = 1,
    type = NOTE_OFF,
    noteNumber = 60,
    velocity = 0
})

-- Program Change
midi.sendMessage(PORT_1, {
    channel = 1,
    type = PROGRAM_CHANGE,
    programNumber = 10
})

-- Pitch Bend, signed and centred on 0
midi.sendMessage(PORT_1, {
    channel = 1,
    type = PITCH_BEND,
    value = 513
})

-- Poly Pressure
midi.sendMessage(PORT_1, {
    channel = 1,
    type = POLY_PRESSURE,
    noteNumber = 60,
    pressure = 100
})

-- Channel Pressure
midi.sendMessage(PORT_1, {
    channel = 1,
    type = CHANNEL_PRESSURE,
    pressure = 64
})

-- Song Select
midi.sendMessage(PORT_1, { type = SONG_SELECT, songNumber = 20 })

-- Song Position, in MIDI beats
midi.sendMessage(PORT_1, { type = SONG_POSITION, position = 10 })

-- Messages that are only a status byte
midi.sendMessage(PORT_1, { type = CLOCK })
midi.sendMessage(PORT_1, { type = START })
midi.sendMessage(PORT_1, { type = STOP })
midi.sendMessage(PORT_1, { type = CONTINUE })
midi.sendMessage(PORT_1, { type = ACTIVE_SENSING })
midi.sendMessage(PORT_1, { type = RESET })
midi.sendMessage(PORT_1, { type = TUNE_REQUEST })

Example

lua

-- Sending MIDI messages out with the dedicated functions

print("Sending MIDI out demo loaded")

-- Control change, to every interface
midi.sendControlChange(PORT_1, 1, 10, 64)

-- Control change, to the DIN sockets only
midi.sendControlChange(MIDI_IO, PORT_1, 1, 10, 64)

-- Notes
midi.sendNoteOn(PORT_1, 1, 60, 100)
midi.sendNoteOff(PORT_1, 1, 60, 0)

-- Program change
midi.sendProgramChange(PORT_1, 1, 10)

-- Pitch bend: port, channel, value
midi.sendPitchBend(PORT_1, 1, 513)

-- Polyphonic aftertouch
midi.sendAfterTouchPoly(PORT_1, 1, 60, 100)

-- Channel aftertouch
midi.sendAfterTouchChannel(PORT_1, 1, 100)

-- NRPN, with the parameter deselected afterwards
midi.sendNrpn(PORT_1, 1, 512, 8192)

-- NRPN, LSB first and the parameter left selected
midi.sendNrpn(PORT_1, 1, 512, 8192, true, false)

-- RPN 0, pitch bend range
midi.sendRpn(PORT_1, 1, 0, 4096)

-- 14-bit control change: MSB on CC 1, LSB on CC 33
midi.sendControlChange14Bit(PORT_1, 1, 1, 2048)

-- Transport
midi.sendStart(PORT_1)
midi.sendStop(PORT_1)
midi.sendContinue(PORT_1)
midi.sendSongSelect(PORT_1, 1)
midi.sendSongPosition(PORT_1, 200)
midi.sendClock(PORT_1)

-- System
midi.sendActiveSensing(PORT_1)
midi.sendSystemReset(PORT_1)
midi.sendTuneRequest(PORT_1)

-- SysEx, from an array of body bytes: F0 43 20 00 F7 goes out
midi.sendSysex(PORT_1, { 0x43, 0x20, 0x00 })

-- SysEx, from a string
midi.sendSysex(PORT_1, string.char(0x43, 0x20, 0x00))

Sending at a precise time

A script runs on the controller's application thread, which also builds pages, paints and runs every other preset's script. A note sent from a timer or a callback therefore leaves when the script gets to it - usually within a millisecond or two, but tens of milliseconds late while a page is being built. For anything that has to land on a beat, work out when it is due and hand it to midi.at(): the message is then sent by the controller's MIDI schedule thread, the highest priority thread there is, on the millisecond it names - whatever the application thread is busy with.

midi.at([time])

Holds back every MIDI message the script sends after this call, until time.

It applies to everything the script sends from here on - the midi.send*() functions, a device's device:send*() functions and the messages parameterMap.set() sends - until the script calls midi.at() again with a different time, or midi.at() with no time to send at once, or the callback it was called from returns. A timer tick, a MIDI callback, a control's function and a lua exec each start sending at once.

A time already past, or the current one, sends at once.
A time more than 10 seconds ahead raises an error.
SysEx is never held; it is sent at once, as always.
The schedule holds 256 messages. A message that finds it full is sent at once rather than lost - late is better than never.
Messages due at the same millisecond go out in the order they were sent.
The hold belongs to the calling thread, so it never affects the router or what a capture is playing.

time is on the same clock as schedule.now(). Working ahead is what makes the timing exact: a script that waits until a note is due before sending it is already late by however long its own callback took to run.

Long uptimes

Times are Lua numbers, which on the controller are 32-bit floats. Past about 4.6 hours of uptime they can no longer hold every millisecond, and scheduled times start to be quantised.

Parameters

time

number, optional, when to send, in milliseconds on the schedule.now() clock. Fractions are rounded to the millisecond. Left out, or nil, sends at once again.

midi.getPending()

How many messages are waiting to be sent - held by midi.at() in this or any other preset. The schedule holds 256; a script that sees this number near the limit is working too far ahead.

Returns

number, how many messages midi.at() is holding.

Example

lua

-- A note that lasts exactly one beat, and a chord arpeggiated ahead of time.

function playBeatLong(noteNumber)
    local beatMs = 60000 / transport.getTempo()

    midi.sendNoteOn(PORT_1, 1, noteNumber, 100)       -- now

    midi.at(schedule.now() + beatMs)
    midi.sendNoteOff(PORT_1, 1, noteNumber, 0)        -- one beat later

    midi.at()                                         -- back to now
end

function arpeggiate(notes, stepMs)
    local start = schedule.now() + 50                 -- a little ahead

    for i, noteNumber in ipairs(notes) do
        local on = start + (i - 1) * stepMs

        midi.at(on)
        midi.sendNoteOn(PORT_1, 1, noteNumber, 90)

        midi.at(on + stepMs * 0.9)
        midi.sendNoteOff(PORT_1, 1, noteNumber, 0)
    end

    midi.at()
end

arpeggiate({ 60, 64, 67, 72 }, 125)

Bytes

The byte handling every preset that talks to a synthesizer used to write for itself: seven-bit packing, nibbles, checksums and hex. Every function takes its data as a Lua string or an array of numbers - the same rule SysexBlock follows - so a script that built a message with string.char and one that assembled it from parameters call the same thing. Every function returns an array of numbers, except toHex, which returns a string, toString, which is the other way round, and checksum, which returns one number.

Array items must be integers in the range 0 to 255. A number with a fractional part, and a float such as the result of a division, raises item N is not a byte; use math.floor() on anything that came out of arithmetic.

None of it touches the display, a preset or MIDI, so it can be called from anywhere, including while the preset loads.

Functions

bytes.toHex(data [, separator])

Formats bytes as hex. With a separator it is readable in the log; without one it is a value bytes.fromHex() reads straight back.

Parameters

data

string or array, the bytes.

separator

string, optional, put between each pair of digits. Defaults to nothing. Passing nil explicitly raises.

Returns

string, the bytes as upper-case hexadecimal.

bytes.fromHex(text)

string, the same bytes as a Lua string.

Example

lua

-- A Roland-style parameter write, assembled from the manual's hex.
-- Address 19 00 00 06, one data byte, then the checksum over both.

function sendRolandParameter(value)
    local body = bytes.fromHex("19 00 00 06")

    body[#body + 1] = math.floor(value)
    body[#body + 1] = bytes.checksum(body)

    local message = SysexBlock()

    message:writeHex("F0 41 10 00 00 3B 12")
    message:writeBytes(body)
    message:writeHex("F7")
    message:close()

    midi.sendSysex(PORT_1, message)

    print("sent: " .. message:toHex())
end

sendRolandParameter(64)

-- A sample name that arrived seven bits at a time, read out of a dump
function midi.onSysex(midiInput, sysexBlock)
    if sysexBlock:getLength() < 26 then
        return
    end

    local name = bytes.toString(bytes.unpack7(sysexBlock:getTable(10, 16)))

    print("name: " .. name)
end

SysexBlock

An object designed to handle SysEx messages.

In contrast to simple byte arrays, SysexBlock provides efficient tools for working with large SysEx messages, offering stream-like operations such as read, write and peek.

A block arrives in three ways: from midi.onSysex(), from patch.onResponse(), or from the global SysexBlock() constructor, which opens an empty one for writing.

Blocks a callback gave you

A block a callback handed over is valid only while that callback runs. It points into the buffer the message was assembled in, and the next SysEx message reuses it. Read what is needed, or copy it out with getBytes() or getTable(), before returning.

Blocks you build

SysexBlock()

Opens an empty SysEx block for writing. It is a global function, not part of the midi module, and it takes no arguments.

Write the message into it - framing included, so start with F0 and end with F7 - then close() it, then send it.

Returns

userdata, a reference to a new, empty SysexBlock object.

SysexBlock() takes no arguments and answers an empty block. It draws its bytes from one 128 kB pool that every preset's blocks share, laid down one after another; when the pool runs past its end it starts over, so the bytes of an old block are eventually written over.

Two rules follow:

Build one block at a time, and close() it before starting the next. Two blocks being written at once interleave in the pool.
Do not keep a block around. Build it, send it, let it go. A block held in a global and read minutes later is reading whatever is there now.

Blocks are append-only: write(), writeBytes() and writeHex() always add to the end, whatever seek() was last told. seek() and read() move the read pointer only.

Functions

<sysexBlock>:getLength()

Retrieves the total length of the SysEx message. The length includes the leading and trailing 0xF0 and 0xF7 bytes.

Returns

number, size of the SysEx message in bytes.

<sysexBlock>:getManufacturerSysexId()

Reads the manufacturer id out of the block.

It is taken from positions 2, 3 and 4 - the bytes just after the 0xF0. When position 2 is not zero the id is one byte wide and that byte is the answer: Roland is 0x41. When position 2 is zero the id is three bytes wide and the answer is all three as one number, so Novation's 00 20 29 answers 0x2029 and the Electra One's 00 21 45 answers 0x2145.

Returns

number, the manufacturer's SysEx id, or 0 for a block shorter than three bytes.

<sysexBlock>:seek(position)

Sets the block's read position. The leading 0xF0 byte is at position 1.

A position of 0 or less, or past the last byte, raises an error. Writing is not affected: writes always append.

Parameters

position

number, the one based position to move the read pointer to.

<sysexBlock>:read()

Reads one byte from the current position. The read pointer moves on by one.

Returns

number, the byte at the read pointer, or -1 at the end of the block.

<sysexBlock>:peek(position)

Reads one byte from the given position. The read pointer is not moved.

A position of 0 or less, or past the last byte, raises an error - it does not answer -1.

Parameters

position

number, the one based position of the byte to read.

Returns

number, the byte at that position.

<sysexBlock>:write(byte)

Appends one byte to the end of the block. seek() has no effect on where it goes.

Parameters

byte

number, the byte to append.

<sysexBlock>:close()

Closes the block, which stops any further writing and releases the pool for the next block. Always close a block before using or sending it.

Working a run of bytes at a time

read() and write() move one byte per Lua call. That is the whole cost of walking a patch dump: a few thousand crossings of the C boundary to look at a few thousand bytes. The functions below carry a run in one call.

A run is either a Lua string or an array of numbers, and every function that takes one accepts both. Lua strings are binary safe, so string.byte, string.sub, string.find and # all work on the bytes of a SysEx message directly. Array items must be integers, as they must for bytes.*.

Positions are one based throughout, exactly as seek() and peek() already are, and a range that runs past the end of the block is clamped rather than raising - so a loop reading in chunks simply stops.

<sysexBlock>:readBytes([count])

data

string or array, the bytes to write.

Returns

number, how many bytes were written.

<sysexBlock>:writeHex(text)

Appends bytes spelled as hex text - the form a manufacturer's documentation prints them in, and the form toHex() answers. A separator ends the byte being read, so "F0 0 7F" is three bytes rather than a run of nibbles.

Only space, comma, tab, carriage return and newline separate. Any other character raises, so a 0x prefix is an error here - unlike bytes.fromHex(), which quietly misreads it.

Parameters

text

string, hex digits with spaces, commas, tabs or newlines between the bytes.

Returns

number, how many bytes were written.

<sysexBlock>:tell()

Where the next read() will happen.

At the end of the block it answers getLength() + 1, which is one past the last byte and which seek() rejects. Anywhere else it is a position seek() takes as it stands.

Returns

number, the one based position of the read pointer.

<sysexBlock>:reset()

Puts the read pointer back to the first byte. The same as seek(1).

<sysexBlock>:isEmpty()

This is not "holds no bytes"

isEmpty() answers true for anything under three bytes - the shortest thing that could be a SysEx message. A block of one byte is empty by this test while getLength() answers 1.

Returns

boolean, true when the block is shorter than a SysEx message can be.

<sysexBlock>:isSysex()

Says whether the block holds a SysEx message.

Returns

boolean, true when the block starts with 0xF0.

Examples

Reading a patch dump without a byte at a time:

lua

function midi.onSysex(midiInput, sysexBlock)
    print(sysexBlock:toHex(1, 8) .. " ...")

    -- The header, checked in one comparison.
    if sysexBlock:getBytes(1, 4) ~= string.char(0xF0, 0x00, 0x20, 0x29) then
        return
    end

    -- The payload, as numbers, from just after the header.
    local data = sysexBlock:getTable(8, sysexBlock:getLength() - 8)

    parameterMap.set(1, PT_CC7, 74, data[1])
end

Finding a marker rather than counting to it:

lua

function midi.onSysex(midiInput, sysexBlock)
    local at = sysexBlock:find({ 0x00, 0x20, 0x29 })

    if at then
        sysexBlock:seek(at + 3)

        local model = sysexBlock:readBytes(2)

        print("model: " .. bytes.toHex(model, " "))
    end
end

Building a message from a manufacturer's documentation and sending it:

lua

function requestPatch(patchNumber)
    local request = SysexBlock()

    request:writeHex("F0 00 20 29 02 0E")
    request:writeBytes({ patchNumber })
    request:writeHex("F7")
    request:close()

    midi.sendSysex(USB_HOST, PORT_1, request)
end

requestPatch(3)

DMX

The dmx module drives a uDMX dongle plugged into the USB host socket. The dongle is claimed by its USB vendor and product id, so it takes one of the two USB host device slots that MIDI devices also use; usb-devices list reports it with "driver":"DMX".

Channels are given as 1 to 512, the way a lighting desk numbers them, and values as 0 to 255. Up to two dongles can be attached, and every function takes an optional leading device number counting the attached dongles from one - it is the dongles that are counted, not the slots, so a single dongle is always device 1 whichever slot it landed in. Left out, the device number is 1. Passing nil explicitly raises.

Nothing blocks. A write updates the universe the firmware holds for the dongle, and a sender thread hands the changed channels over on the USB control pipe. Only channels whose value actually moved are sent, and consecutive ones are coalesced into a single transfer. The dongle keeps clocking DMX512 out by itself, so a level that is not changing needs no repeating.

Every function except getDeviceCount() and isConnected() raises DMX device N is not connected when there is no such dongle. A preset that has to cope with an unplugged dongle asks dmx.isConnected() first.

A dongle being plugged in or out reaches events.onUsbHostChange(), like any other USB host device. The event does not say what kind of device it was, so a preset that reacts to one calls dmx.isConnected() to find out.

On the host build of the firmware the module is present but does nothing: getDeviceCount() answers 0 and isConnected() answers false.

Functions

dmx.getDeviceCount()

How many uDMX dongles the controller has enumerated.

Returns

number, how many DMX dongles are attached (0, 1 or 2).

dmx.isConnected([device])

Whether the dongle is there. This is the one call that does not raise when it is not.

Parameters

device

number, optional, which dongle, counting from 1. Defaults to 1.

Returns

boolean, true when that dongle is attached.

dmx.setChannel([device, ] channel, value)

Sets one DMX channel. A channel or value out of range raises. Setting a channel to the value it already has sends nothing.

Parameters

device

number, optional, which dongle, counting from 1. Defaults to 1.

channel

number, the DMX channel (1 .. 512).

value

number, the level (0 .. 255).

dmx.setChannels([device, ] startChannel, values)

Sets a run of DMX channels at once - the whole footprint of a fixture in one call.

An empty array does nothing. A run that would pass channel 512, a value out of range, or an item that is not a number, each raise.

Parameters

device

number, optional, which dongle, counting from 1. Defaults to 1.

startChannel

number, the DMX channel the first value goes to (1 .. 512).

values

array of numbers, the levels (0 .. 255 each).

dmx.getChannel([device, ] channel)

Reads back what the controller last wrote. DMX is one way, so this is the firmware's own copy of the universe, not anything the fixture reported. A channel never written answers 0.

Parameters

device

number, optional, which dongle, counting from 1. Defaults to 1.

channel

number, the DMX channel (1 .. 512).

Returns

number, the level last written to that channel (0 .. 255).

dmx.blackout([device])

Sets every one of the 512 channels to zero.

Parameters

device

number, optional, which dongle, counting from 1. Defaults to 1.

Example

lua

-- A seven channel RGB fixture patched at DMX channel 1, driven from four
-- controls on the first control set. The fixture's channels are:
--   1 dimmer, 2 red, 3 green, 4 blue, 5 strobe, 6 mode, 7 speed

local base = 1
local level = { dimmer = 0, red = 0, green = 0, blue = 0 }

local function push()
    if not dmx.isConnected() then
        return
    end

    dmx.setChannels(base, {
        level.dimmer, level.red, level.green, level.blue, 0, 0, 0
    })
end

-- Value functions named in the preset JSON, one per control.
function setDimmer(valueObject, value)
    level.dimmer = math.floor(value)
    push()
end

function setRed(valueObject, value)
    level.red = math.floor(value)
    push()
end

function setGreen(valueObject, value)
    level.green = math.floor(value)
    push()
end

function setBlue(valueObject, value)
    level.blue = math.floor(value)
    push()
end

function preset.onReady()
    print("DMX dongles attached: " .. dmx.getDeviceCount())
    push()
end

-- Leave the rig dark when the preset is switched away from.
function preset.onLeave()
    if dmx.isConnected() then
        dmx.blackout()
    end
end

OSC

The osc module sends and receives Open Sound Control over the network. It is how a preset talks to a DAW, a light desk, a media server or another controller in that receiver's own terms rather than in MIDI.

Electra One mk3 only

OSC needs a network, and the mk3 is the model that has one. The module itself is there on every model, so a preset that uses it still loads and runs on an mk2 or a Mini - it simply has nothing to send on. osc.isAvailable() answers false, osc.listen() answers false, and a send answers false and goes nowhere. Nothing raises, and the rest of the preset carries on.

OSC is deliberately not wired to the parameter map or to controls. A control sends one value to one place; OSC carries whatever a script wants to say, to whoever it wants to say it to, and tying the two together would limit it to the things a control can express. So this is an API beside midi.*, and what a preset does with it is the preset's business.

lua

local desk = osc.connect("192.168.1.20", 8000)

desk:send("/mixer/volume", 0.75)

osc.listen(9000)

function osc.onMessage(message)
    print(message.address, message.types, message.args[1])
end

Destinations

osc.connect() names where messages go. It is not a connection in the TCP sense - OSC runs over UDP here, so nothing is opened, nothing can fail to connect, and a destination is cheap enough to build in preset.onReady() and keep in a variable for the life of the preset.

The host is a dotted quad and nothing else. There is no resolver on the controller, so a script that wants a machine by name carries its number instead of waiting on DNS in the middle of a preset.

Listening is separate from sending, and there is one listening port for the whole controller. osc.listen() binds it, a second call moves it, and osc.stop() gives it up.

What a Lua value is sent as

A plain Lua value picks its own OSC type, following Lua's own distinction between an integer and a float:

Lua value	sent as
`1`, `-7` - an integer	`i`, int32
`1.0`, `0.5` - a float	`f`, float32
`"text"`	`s`, a string
`true`, `false`	`T`, `F`
`nil`	`N`

So desk:send("/a", 1) sends an int and desk:send("/a", 1.0) sends a float. It is the same distinction Lua itself makes, and worth watching where the value has been through arithmetic that turned it into one or the other. Anything else - a table, a function - raises.

Where that is not what is meant, a wrapper says so outright. Each answers a value to be passed straight to send(); it is not a message on its own.

Wrapper	tag
`osc.int(number)`	`i`	a 32-bit integer
`osc.float(number)`	`f`	a 32-bit float
`osc.int64(number)`	`h`	a 64-bit integer
`osc.double(number)`	`d`	a 64-bit float
`osc.string(text)`	`s`	a string
`osc.symbol(text)`	`S`	a symbol - a string the receiver reads as a name
`osc.blob(bytes)`	`b`	raw bytes, given as a Lua string, zero bytes and all
`osc.timetag(number)`	`t`	an OSC time tag
`osc.char(character)`	`c`	one character, as a one-character string or as its code
`osc.rgba(number)`	`r`	a colour packed as `0xRRGGBBAA`
`osc.midi(port, status, data1, data2)`	`m`	a MIDI message; one packed integer is accepted too
`osc.infinitum()`	`I`	the impulse, which carries no value

osc.rgba() and the packed form of osc.midi() want all 32 bits. Written as a hex literal, 0xFF0000FF wraps to a negative Lua integer - those are the same 32 bits and they go out correctly, so it needs no masking.

32-bit numbers

A Lua integer here holds 32 bits and a Lua float is single precision, as The Lua environment describes. osc.int64() and osc.double() put the right tag on the wire, which is what a receiver that insists on one needs, but the value inside them cannot carry more than a 32-bit integer or a float32 already did. The same goes for osc.timetag(): a real NTP time tag does not fit in a Lua integer, so osc.IMMEDIATE is the one a script can usefully name.

What arrives

A datagram that reaches the listening port is decoded by the firmware and handed to osc.onMessage() as a table:

field
`address`	string, the address pattern it was sent to
`types`	string, the type tags of its arguments - `"ifs"` for an int, a float and a string
`args`	table, the arguments counted from 1, with `n`
`host`	string, the dotted quad it came from
`port`	integer, the source port
`time`	integer, its time tag

args carries n the way table.pack() does, because nil is a type OSC can send and a script counting with # would stop at the first one.

The arguments arrive as the nearest Lua type:

tags	arrives as
`i` `h` `c` `r` `m` `t`	integer
`f` `d`	number
`s` `S`	string
`b`	string, the raw bytes
`T` `F`	boolean
`N` `I`	`nil`

Two pairs are indistinguishable once they are Lua values - a string and a symbol, a nil and an impulse - so a script that has to tell them apart reads types rather than the argument.

A bundle is unwrapped by the firmware rather than in Lua: every message in it reaches osc.onMessage() on its own, carrying the bundle's time tag. A message that did not come in a bundle carries osc.IMMEDIATE. A bundle nested more than three deep is dropped, which is what stops a made-up datagram from walking the stack down.

osc.onMessage() runs on the application thread, like every other Lua callback. An error inside it is written to the log and the preset carries on.

Limits


the address	96 bytes
arguments in one message	32
argument bytes in one message	1024
one datagram, a message or a bundle	1400 bytes
bundles within bundles	3 deep

An address or an argument that does not fit raises. A bundle that does not fit answers false. A message that arrives over these limits is dropped before the callback, because it cannot be decoded into one.

Functions

osc.isAvailable()

Whether OSC can reach anything at this moment. false on a model without a network, and on the mk3 while the network is down. A preset that has something extra to offer over OSC asks this before offering it; one that just sends does not have to, because a send without a network answers false rather than raising.

Returns

boolean, true when there is a network to send on.

osc.connect(host, port)

Names where messages go. Nothing is opened and no network is touched, so this succeeds on every model; whether anything arrives is osc.isAvailable()'s business.

tostring() on a destination gives osc 192.168.1.20:8000.

Parameters

host

string, the destination as a dotted quad, '192.168.1.20'. Anything that is not one raises - there is no name resolution here.

port

integer, the destination port, 1 .. 65535. Anything outside that raises.

Returns

a destination, to send on.

osc.listen(port)

Starts delivering what arrives on this port to osc.onMessage(). There is one listening port for the whole controller, so a second call moves it rather than adding another. Answers false when there is no network.

Parameters

port

integer, the port to receive on, 1 .. 65535. Anything outside that raises.

Returns

boolean, true when the controller is listening on that port.

osc.stop()

Stops listening. Nothing arrives at osc.onMessage() afterwards. Calling it when nothing was listening does nothing.

osc.char(character)

An OSC character. osc.char("A") reads better at the call site than osc.char(65); both send the same byte.

Parameters

character

a one-character string, or the integer code of one. A longer string uses its first character.

Returns

a wrapped value carrying the OSC char tag.

osc.midi(port, status, data1, data2)

An OSC MIDI message, which is four bytes. Each is taken as a byte, so anything above 255 is masked rather than raising.

Called with a single integer instead, that integer is used as the packed word - port << 24 | status << 16 | data1 << 8 | data2 - for a script that already has one.

Parameters

port

integer, the port id byte.

status

integer, the status byte.

data1

integer, the first data byte.

data2

integer, the second data byte.

Returns

a wrapped value carrying the OSC MIDI tag.

The other wrappers - osc.int(), osc.float(), osc.int64(), osc.double(), osc.string(), osc.symbol(), osc.blob(), osc.timetag(), osc.rgba() and osc.infinitum() - each take the one value the table above describes and raise when given something that is not it.

Destination

destination:send(address, ...)

One message to this destination. Answers false when there is no network and when the message could not be put on the wire; raises when the message itself is wrong - an address too long, more arguments than fit, an argument of a type OSC cannot carry, or a destination that has been closed.

Parameters

address

string, the OSC address, '/like/this'. Longer than 96 bytes raises.

...

the arguments, plain Lua values or wrapped ones, up to 32 of them.

Returns

boolean, true when the datagram went out.

destination:sendBundle(time, element, ...)

Several messages in one datagram, sharing a time tag. A receiver that honours time tags applies them together, which is how two faders move as one rather than one after the other.

Each element is an array: the address first, its arguments after, wrapped or plain exactly as send() takes them. An element with no address raises.

Parameters

time

integer, the bundle's time tag. osc.IMMEDIATE is now.

element

table, one message as { address, arguments... }. As many as fit in the datagram.

Returns

boolean, true when the datagram went out.

destination:close()

Gives up the destination. Sending on it afterwards raises, which is the point - a destination kept past the thing it belonged to is a bug worth hearing about. Closing one twice is harmless.

A script that keeps its destinations for the life of the preset never needs this.

Callbacks

osc.onMessage(message)

Called for every OSC message that arrives on the listening port, and for every message inside a bundle that arrives there. Define it only if the preset listens; without it, what arrives is decoded and dropped.

Parameters

message

table, { address, types, args, host, port, time } as described above.

Constants

osc.IMMEDIATE is the time tag meaning "as soon as you can". It is what sendBundle() is given for a bundle that is not scheduled, and what a message that did not arrive in a bundle carries.

Example

lua

-- A page of faders mirrored to a lighting desk, and the desk's own
-- messages read back.

local desk = nil

function preset.onReady()
    if not osc.isAvailable() then
        info.setText("no network - OSC is off")
        return
    end

    desk = osc.connect("192.168.1.20", 8000)
    osc.listen(9000)

    logger.write("OSC to %s", tostring(desk))
end

-- Called from a fader, with its value 0 .. 127.
function sendLevel(valueObject, value)
    if desk == nil then
        return
    end

    local channel = valueObject:getMessage():getParameterNumber()

    -- 1.0 * value forces a float, which is what the desk expects.
    desk:send("/dmx/" .. channel, 1.0 * value / 127)
end

-- The whole look in one datagram, so the desk moves everything together.
function sendLook(levels)
    local bundle = {}

    for channel, level in ipairs(levels) do
        bundle[#bundle + 1] = { "/dmx/" .. channel, osc.float(level) }
    end

    desk:sendBundle(osc.IMMEDIATE, table.unpack(bundle))
end

function osc.onMessage(message)
    if message.address == "/desk/cue" and message.args.n >= 1 then
        info.setText("cue " .. tostring(message.args[1]))
    else
        logger.write("osc %s [%s] from %s:%d",
                     message.address, message.types,
                     message.host, message.port)
    end
end

function preset.onExit()
    osc.stop()
end

MIDI-CI

The midici module answers and sends MIDI-CI messages. Every MIDI-CI message that arrives is offered to the preset, and a preset can send any of them, so a script can be a responder, an initiator, or both at once.

The controller already answers MIDI-CI as itself: it replies to Discovery and serves Property Exchange resources describing the preset that is loaded. This module is for the two things that goes no further than:

adding a resource the firmware does not have, answered by the preset;
being a second device on the same port, with a MUID of its own, a manufacturer of its own and resources of its own.

The second is what makes Property Exchange testable without a MIDI-CI instrument on the desk. The script invents the instrument.

lua

function midici.onMessage(message)
    if message.typeName == "peGet" then
        local request = json.decode(message.header)

        if request.resource == "X-MyThing" then
            midici.send({ to = message,
                          type = midici.PE_GET_REPLY,
                          header = json.encode({ status = 200 }),
                          body = json.encode({ hello = true }) })
            return true
        end
    end
end

The callback

midici.onMessage(message) is called for every MIDI-CI message that arrives, on any interface and port, whatever MUID it is addressed to. The last part matters: a script that sends as a device of its own receives replies addressed to that device, and a callback that only saw the controller's own post would never hear them.

It runs on the application thread, so everything a script may do anywhere else it may do here.

Field	What it is
`interface`	`MIDI_IO`, `USB_DEV` or `USB_HOST`
`port`	`PORT_1`, `PORT_2` or `PORT_CTRL`
`type`	the message type as a number
`typeName`	the same as a string - `"peGet"`, `"discovery"`, `"nak"`
`version`	`midici.VERSION_1_1` or `midici.VERSION_1_2`
`source`	the MUID it is from
`destination`	the MUID it is addressed to, or `midici.BROADCAST`
`deviceId`	the device id byte
`data`	the payload as it arrived, as a string
`requestId`	Property Exchange only: which request this belongs to
`header`	Property Exchange only: the header, as a JSON string
`body`	Property Exchange only: the body, as a JSON string

Answering true consumes the message. The controller's own responder never sees it, which is how a script takes a conversation over. Answering nothing, or false, leaves the message to be answered as usual - which is how a script watches without taking part.

Sending

midici.send(options) sends one message and answers whether it went.

Option	Default
`to`	the message being answered - see below
`interface`	`USB_DEV`
`port`	`PORT_1`
`source`	the controller's own MUID
`destination`	`midici.BROADCAST`
`type`	required
`version`	`midici.VERSION_1_2`
`requestId`	`1`
`header`	Property Exchange: the header string
`body`	Property Exchange: the body string
`data`	anything else: the payload string

to is the message being answered. It fills in the interface, the port, the destination, the version and the request id from that message, which is what a reply almost always wants. Anything named outright wins over it, so a script answering as a device of its own says source and leaves the rest to to.

A type that carries a header and a body is chunked to whatever the peer said it would take. A type that does not sends data as its payload, because what a payload means is that type's business.

Headers and bodies are strings

They are not decoded into tables. Use the json module, which is the one JSON implementation the firmware has:

lua

local request = json.decode(message.header)
local reply = json.encode({ status = 200 })

Chunking is not a script's problem in either direction: a body that arrived in several messages has been put back together before the callback sees it, and a body being sent is split by the module.

Identity

Function	What it answers
`midici.getMuid()`	the controller's own MUID
`midici.newMuid()`	a MUID nothing else is using, for a device of the script's own

A MUID is a 28-bit number two devices agree to use. midici.newMuid() answers one that is neither the broadcast value nor the controller's; nothing registers it, because the controller keeps no list of them.

Message types

Each is a field on the module.

Constant	Message
`midici.DISCOVERY`	Discovery
`midici.DISCOVERY_REPLY`	Discovery Reply
`midici.ENDPOINT_INQUIRY`	Endpoint Inquiry
`midici.ENDPOINT_REPLY`	Endpoint Reply
`midici.INVALIDATE_MUID`	Invalidate MUID
`midici.ACK`	ACK
`midici.NAK`	NAK
`midici.PE_CAPABILITIES`	Property Exchange Capabilities
`midici.PE_CAPABILITIES_REPLY`	and its reply
`midici.PE_GET`	Get Property Data
`midici.PE_GET_REPLY`	and its reply
`midici.PE_SET`	Set Property Data
`midici.PE_SET_REPLY`	and its reply
`midici.PE_SUBSCRIPTION`	Subscription
`midici.PE_SUBSCRIPTION_REPLY`	and its reply
`midici.PE_NOTIFY`	Notify

midici.BROADCAST is the MUID that means everybody. midici.VERSION_1_1 and midici.VERSION_1_2 are the two MIDI-CI versions.

Example: a resource the firmware does not have

The controller answers DeviceInfo, X-ParamList and the rest. A preset can add one of its own beside them, answered by the script and indistinguishable to the host:

lua

tuning = { root = "C", scale = "dorian" }

function midici.onMessage(message)
    if message.typeName ~= "peGet" then
        return false
    end

    if json.decode(message.header).resource ~= "X-Tuning" then
        return false       -- not ours; the controller answers it
    end

    midici.send({ to = message,
                  type = midici.PE_GET_REPLY,
                  header = json.encode({ status = 200 }),
                  body = json.encode(tuning) })

    return true
end

Example: a device of your own

A script can answer Discovery with a MUID of its own and serve its own resources. An initiator then finds two devices where there is one box.

lua

local DEVICE = midici.newMuid()

patch = { name = "Opening", cutoff = 64 }

local RESOURCES = {
    ResourceList = function()
        return { { resource = "ResourceList", canGet = true },
                 { resource = "X-Patch", canGet = true, canSet = true } }
    end,

    ["X-Patch"] = function() return patch end,
}

function midici.onMessage(message)
    -- Discovery is addressed to everybody, so this device answers it and
    -- leaves the controller to answer it too. Both replies go out.
    if message.typeName == "discovery" then
        midici.send({ to = message, source = DEVICE,
                      type = midici.DISCOVERY_REPLY,
                      data = discoveryReply(message.version) })
        return false
    end

    -- Everything else only when it is addressed to this device.
    if message.destination ~= DEVICE then
        return false
    end

    if message.typeName == "peGet" then
        local serve = RESOURCES[json.decode(message.header).resource]

        midici.send({ to = message, source = DEVICE,
                      type = midici.PE_GET_REPLY,
                      header = json.encode({ status = serve and 200 or 404 }),
                      body = serve and json.encode(serve()) or "" })
        return true
    end

    return false
end

discoveryReply() packs the bytes a Discovery Reply carries - the manufacturer, family, model and revision the device claims, the categories it supports, and the largest SysEx it accepts. The complete script, with that function written out, is the midi-ci-device example preset.

Testing it

Send a Discovery broadcast and two replies come back: the controller's, with the Electra One manufacturer id, and the script's, with whatever the script said. Each then answers only its own resources and a 404 for the other's.

MIDI data structures

midiInput

midiInput is a data table that describes the origin of an incoming MIDI message.

interface - integer, one of the interface constants (see Globals).
port - integer, one of the port constants (see Globals).
playback - boolean, present and true only when a capture played the message back. Absent otherwise.
internal - boolean, present and true only for the controller's own clock, which reaches the transport callbacks. Such a table has no interface and no port.

Example

lua

midiInput = {
  interface = MIDI_IO,  -- an integer identifying the interface
  port = PORT_1         -- an integer identifying the port
}

midiMessage

The midiMessage data table carries one MIDI message broken down into its parts. midi.onMessage() is given one, and midi.sendMessage() takes one.

For a channel message, channel, type, data1 and data2 are always present, along with the fields named for that message type. So a Control Change can be read either as

lua

midiMessage = {
    channel = 1,
    type = CONTROL_CHANGE,
    data1 = 1,
    data2 = 127
}

or as

lua

midiMessage = {
    channel = 1,
    type = CONTROL_CHANGE,
    controllerNumber = 1,
    value = 127
}

channel - integer, the MIDI channel (1 .. 16). 0 for system messages.
type - integer, the MIDI message type (see Globals).
data1 - integer, the first data byte (0 .. 127).
data2 - integer, the second data byte (0 .. 127).
the type specific attributes listed below.

A SysEx message is the exception: its table holds only type, which is SYSEX, and sysexBlock. There is no channel, data1 or data2.

Attributes specific to MIDI message types

MIDI message type	Attributes
`NOTE_ON`	`noteNumber` `velocity`
`NOTE_OFF`	`noteNumber` `velocity`
`CONTROL_CHANGE`	`controllerNumber` `value`
`POLY_PRESSURE`	`noteNumber` `pressure`
`CHANNEL_PRESSURE`	`pressure`
`PROGRAM_CHANGE`	`programNumber`
`PITCH_BEND`	`value`
`SONG_SELECT`	`songNumber`
`SONG_POSITION`	`position`
`SYSEX`	`sysexBlock`

Pitch bend is unsigned here

In a midiMessage, PITCH_BEND carries value as the raw fourteen-bit number, 0 to 16383, with 8192 in the centre. midi.onPitchBend() reports the same message as -8192 to 8191, and midi.sendPitchBend() takes that signed form. A table built by hand is read the signed way; a table that came from midi.onMessage() keeps its data1 and data2, and those are used instead, so handing one straight back to midi.sendMessage() is exact.

Structure of control

A control is a thing you can see on the screen and you can interact with: a fader, a list, a pad, an envelope. Every control belongs to one page and carries a name, a colour, a font, a variant and a position on the screen.

A control has values. A fader has one, spelled value. An ADSR envelope has four - attack, decay, sustain, release - and each of them is turned by its own knob. A value is a Value object.

Every value has exactly one message: the MIDI parameter it reads and writes. A message is a Message object and carries a device, a parameter type, a parameter number and a range.

Control ──► Value ──► Message ──► parameter map entry
 "CUTOFF"    "value"   cc7 #74     device 1, cc7, 74

Display value and MIDI value

A Value works in display space. A Message works in MIDI space. Both reach the same parameter map entry, so a write through either is visible through the other.

kind of value	what its display value is
proportional (faders, dials, envelopes)	the number the control shows, between the value's own `min` and `max`
discrete (lists)	the index of the overlay item, counted from zero - not the item's MIDI value
state (pads)	`0` or `1`, which become the message's off and on values

value:toMidi() and value:fromMidi() convert between the two without writing anything.

Ids

A control id is a number from 1 to 864, unique within the preset, written in the preset file and shown in the control properties panel of the Preset Editor. Groups share that id space: a group is a control of type "group", so no group and no control ever carry the same id.

A valueId is a string naming one value of one control, and it is the control type that decides which strings are valid - "value" for a fader, "attack" for an envelope. It is not a number and it is not unique across the preset. If you omit a valueId, it defaults to "value".

Slots, bounds and visibility

A control is placed either in a slot - a position in the page's grid - or at bounds of its own, four numbers in screen pixels. The grid differs by model:

	mk2	mini
slots per page	36 (6 x 6)	12 (4 x 3, the third row being the context buttons)
knobs	12	8
pages	12	16
screen	1024 x 600	800 x 480

A mini's four context buttons are slot ids 9 to 12, which a preset file may assign but control:setPot() cannot reach.

control:setSlot() moves a control into a slot and makes it visible, and gives it the knob that slot belongs to. control:getSlot() answers the slot, or nil for a control that sits at bounds of its own - which is legal, and what a hand-written preset often does.

Visibility is separate from placement: control:setVisible(false) leaves the control where it is and stops drawing it.

Controls

The controls module provides functionality to manage preset controls. It is not intended for changing properties of individual controls. Individual controls are managed by manipulating the Control object.

Every function of this module works on the preset the script belongs to, which for a preset pinned in the background is its own preset and not the one on screen. The collections have a few equivalent functions on the preset object - preset.getControls() and controls.getAll() are the same call - and those can be asked of another preset.

Functions

controls.get(controlId)

Retrieves a reference to a Control object (Lua userdata). The id can be found in the control properties panel in the Preset Editor.

It raises an error when the preset has no control with that id, and when the id is outside 1 .. 864. preset.getControl(id) is the same lookup that answers nil instead.

A group is a control and is found here too, but it comes back with the Control methods on it rather than the Group ones. Use groups.get() or preset.getControl() when a group's own methods - setSlot, setHorizontalSpan, setVariant - are wanted. This is set up that way to keep the Lua extension backward compatible.

The global Control(id) is the same function under another name.

Parameters

controlId

number, the id of the control (1 .. 864).

Returns

userdata, an object representing the control.

controls.getAll()

Every control in the preset, groups included, in ascending id order. The same collection preset.getControls() answers - they are the same call.

Returns

table, an array of Control and Group objects.

number, the page. Defaults to the page the controller is showing.

Returns

Control or Group object, or nil when the slot is empty.

Example

lua

-- Retrieving a reference to given control

local control = controls.get(1)

lua

-- Dim everything on page 2 that is not a group.
for _, control in ipairs(controls.getByPage(2)) do
    if not control:isGroup() then
        control:setColor(0x808080)
    end
end

lua

-- Per frame, walk without allocating.
controls.each(function (control)
    if control:isVisible() then
        control:repaint()
    end
end)

Creating and removing controls

Firmware 5.0 and later. A control is created from a table that has the shape of the control object in the preset file: the same keys, the same spellings, the same one-based numbering. It goes through the same reader the file goes through, so every default the file gets - a fader's bipolar mode, a value's range taken from its message - is folded in here too, and what control:toTable() answers is what the file would say. See Editing a preset from Lua for the rules.

The application thread only

controls.create(), controls.remove() and <control>:update() change the preset, and that may only be done on the application thread. Every preset callback runs there: onReady, control, MIDI, timer and schedule callbacks, commands and patch hooks. The exceptions are a formatter run by an incoming message and a custom control's paint callback, which run on other threads; called from one of those they raise not on the application thread.

controls.create(control)

Creates a control in the caller's preset. type and pageId are required. id may be left out, and is then the lowest free one; an id already taken, or outside 1 .. 863, raises. slot may stand in for bounds and is the model's own geometry for that slot. The control's values go into the parameter map at once, and when its page is the one on screen it appears there.

A preset holds at most 432 controls; one more raises. Groups are counted separately - see groups.create().

lua

local c = controls.create {
    pageId = 1, controlSetId = 1, type = "fader", name = "RESO",
    color = "F49500", slot = 2,
    inputs = { { potId = 2, valueId = "value" } },
    values = { { id = "value", min = 0, max = 127, defaultValue = 64,
                 message = { deviceId = 1, type = "cc7", parameterNumber = 71,
                             min = 0, max = 127 } } }
}

Parameters

control

table, the control as the preset file has it: id (optional), pageId, controlSetId, type, name, color, bounds or slot, inputs, values, variant, visible, font, events.

Returns

userdata, the new Control object.

controls.remove(controlId)

Takes the control out of the preset and out of the parameter map, and off the screen when it was there. Its paint, touch, pot and switch callbacks are let go with it.

A Control object the script kept raises the control was removed on its next method call rather than reading what is no longer there.

Parameters

controlId

number, the id of the control to remove (1 .. 864).

Returns

boolean, true when a control was removed, false when the preset had no control with that id.

Example

lua

-- Build a page of eight CC faders, and take them away again.
local ids = {}

function buildPage()
    for i = 1, 8 do
        local control = controls.create {
            pageId = 2, controlSetId = 1, type = "fader",
            name = string.format("CC %d", 20 + i),
            color = "529DEC", slot = i,
            inputs = { { potId = i, valueId = "value" } },
            values = { { id = "value", min = 0, max = 127, defaultValue = 0,
                         message = { deviceId = 1, type = "cc7",
                                     parameterNumber = 20 + i,
                                     min = 0, max = 127 } } }
        }

        ids[#ids + 1] = control:getId()
    end
end

function clearPage()
    for _, id in ipairs(ids) do
        controls.remove(id)
    end

    ids = {}
end

function onReady()
    buildPage()
end

Control

A Control object represents a single control, like a fader or button. It stores its own data and provides functions to read and update its properties.

One control has one object per Lua state, so a script may hang its own fields on it and find them again later:

lua

local control = controls.get(1)

control.lastSent = 0                      -- a field of the script's own
print(controls.get(1).lastSent)           --> 0

A Group object does not take custom fields.

Functions

<control>:getId()

Retrieves an identifier of the Control. The identifier is assigned to the Control in the preset JSON.

Returns

number, the id of the control (1 .. 864).

Example

lua

-- Retrieving a control and getting its Id

local volumeControl = controls.get(10)
print("got Control with Id " .. volumeControl:getId())

<control>:setVisible(shouldBeVisible)

Changes the visibility of the given control. The initial visibility is defined in the Preset JSON, in the control's visible member. Hiding a control leaves it where it is: it keeps its slot, its knob and its values, and the parameter map is untouched.

Parameters

shouldBeVisible

boolean, true when the Control will be visible. Anything false or nil hides it.

<control>:isVisible()

Retrieves the visibility status of the control.

Returns

boolean, true when the control is currently visible.

Example

lua

-- a function to toggle visibility of a control

function toggleControl(control)
    control:setVisible(not control:isVisible())
end

<control>:setName(name)

Sets a new name of the control and repaints it.

Parameters

name

string, the new name to assign to the control. Longer than 40 characters is cut to 40.

<control>:getName()

Retrieves the current name of the control.

Returns

string, the current name of the control.

Example

lua

-- print out a name of given control

function printName(controlId)
    local control = controls.get(controlId)
    print ("Name: " .. control:getName())
end

<control>:setColor(color)

Sets a new color for the control. Although 24-bit RGB 888 is used, the controller internally converts it to 16-bit RGB 565. A number is expected, not the "F45C51" string the preset file uses. The colour globals - WHITE, RED, ORANGE, BLUE, GREEN, PURPLE - are the six the editor offers.

Parameters

color

number, a number representing the color as a 24-bit RGB value, for example 0xF45C51 or the RED global.

<control>:getColor()

Retrieves the current color of the control.

Returns

number, a number representing the color as a 24-bit RGB value.

Example

lua

-- A callback function that changes color of the control
-- when its value exceeds 100

function functionCallback(valueObject, value)
    local control = valueObject:getControl()

    if (value > 100) then
        control:setColor(0xff0000)
    else
        control:setColor (0xffffff)
    end
end

<control>:setVariant(variant)

Sets a variant for the control - the shape it is drawn in. A name that no control uses raises, rather than quietly leaving the control looking the way it did.

Which variants a control draws depends on its type: dial and thin are a fader's, checkbox a pad's, valueOnly a list's, a pad's and a text box's, baseline a text box's - no outline, the name beneath, and the text on the line the values of the controls beside it stand on - and highlighted and buttonlike a group's. A variant a type does not draw is stored and ignored.

The VT_DEFAULT, VT_HIGHLIGHTED, VT_THIN, VT_VALUEONLY, VT_DIAL, VT_CHECKBOX, VT_BUTTONLIKE and VT_BASELINE globals are the numbers behind the names, and are what group:setVariant() takes. A number given here is not checked.

Parameters

variant

string, the variant name as the preset spells it - default, highlighted, thin, valueOnly, dial, checkbox, buttonlike or baseline. A number is still accepted.

<control>:getVariant()

Retrieves the current variant of the control - the name, not the VT_ number.

Returns

string, the variant name, which is what setVariant() takes back.

<control>:setFont({size, weight, spacing})

Sets the face the control draws its text in. Every field is optional and what is left out is left alone, so one axis can be changed without disturbing the other two. A field naming something outside its range raises rather than being clamped - a typo that quietly picked a face would be hard to see on a screen.

Parameters

size

number, one of SMALL, MEDIUM, LARGE or HUGE. Optional.

weight

number, REGULAR or BOLD. Optional.

spacing

number, PROPORTIONAL or MONOSPACED. Optional.

<control>:getFont()

Retrieves the face the control draws its text in.

Returns

table, with size, weight and spacing - the same shape setFont() takes.

<control>:setOverride(text [, valueId])

Displays text in place of the value. The same thing <value>:overrideValue() does, reached through the control - which is usually what a script has to hand.

Parameters

text

string, the text to display, at most 20 characters. An empty string cancels the override.

valueId

string, which of the control's values. Optional, defaults to 'value'. A valueId the control does not have addresses its first value.

<control>:getOverride([valueId])

Reads the override back.

Returns

string, the override text, or an empty string when none is set.

<control>:isOverrideEnabled([valueId])

Whether an override is being displayed.

Returns

boolean, true when an override is in force.

<control>:setOverrideEnabled(enabled [, valueId])

Puts the stored override in or out of force without discarding its text.

Parameters

enabled

boolean, whether the stored override text is displayed.

valueId

string, which of the control's values. Optional, defaults to 'value'.

<control>:cancelOverride([valueId])

Clears the override text and takes it out of force.

Example

Filling a text box with a patch name and sending an edited one back.

lua

-- what a patch dump handler does with what it parsed
function setPatchName(name)
    controls.get(1):setOverride(name)
end

-- and what the user typed on the instrument, read back to send onwards
function currentPatchName()
    return controls.get(1):getOverride()
end

-- one axis of the face at a time; the others are left alone
controls.get(1):setFont({ spacing = MONOSPACED })

A text box's value function is called with the text, not a number, whenever the text is changed from outside the script - on the keyboard in the box's detail window, or through the SysEx API. A script's own setOverride() does not call it. Naming the function on the value in the preset JSON is all it takes:

lua

-- named as the "function" of the text box's value in the preset JSON:
-- what the user typed, sent to the instrument as it will keep it
function patchNameEdited(valueObject, text)
    local name = string.upper(string.sub(text, 1, 8))
    sendPatchName(name)
    controls.get(1):setOverride(name)   -- shows the name the instrument holds
end

<control>:setBounds({x, y, width, height})

Sets the bounding box (position and dimensions) of the control on the screen. The function expects an array of four numbers to be passed as an argument; all four are required. Use the X, Y, WIDTH, HEIGHTglobals to access individual members of the array.

The width and the height are cut so that the control ends inside 1024 x 550 - the mk2's control area - on every model. Keep x and y inside the screen the model has; a position off the screen is not corrected.

Parameters

number, X position on the screen.

number, Y position on the screen.

width

number, width of the control.

height

number, height of the control.

<control>:getBounds()

Retrieves the bounding box (position and dimensions) of the control on the screen. Use the X, Y, WIDTH, HEIGHTglobals to access individual members of the array.

Returns

array, an array consisting of x, y, width, height boundary box attributes.

Example

lua

-- print out position and dimensions of given control

local control = controls.get(2)
control:setBounds({ 200, 200, 170, 65 })
bounds = control:getBounds()
print("current bounds: " ..
    "x=" .. bounds[X] ..
    ", y=" .. bounds[Y] ..
    ", width=" .. bounds[WIDTH] ..
    ", height=" .. bounds[HEIGHT])

<control>:setPot(controlSet, pot)

Assigns the control to a specified control set and pot. See the Globals section for the Control Set and pot identifiers.

Only a control driven by exactly one pot can be moved this way. A control that declares no inputs, and one that declares several - an ADSR, an XY pad, a Custom control spread over the panel - is left where it is and the reason is written to the log. Rearranging those is a change to the control's inputs array, through <control>:update().

Parameters

controlSet

number, the Control Set: 1, 2 or 3, or CONTROL_SET_1 .. CONTROL_SET_3. Outside that raises.

pot

number, the pot: 1 .. 12 on an mk2, 1 .. 8 on a mini, or POT_1 .. POT_12. Outside the model's range raises.

Example

lua

-- Reassign the control to different controlSet and pot

local control = controls.get(1)
control:setPot(CONTROL_SET_1, POT_2)

<control>:setSlot(slot [, pageId])

Moves the given control to a preset slot. The control set and the pot follow from the slot - slots 1 to 12 are control set 1 and pots 1 to 12, 13 to 24 control set 2, and so on - the bounds become the slot's own, and the control is made visible.

As with setPot(), only a control driven by exactly one pot is moved; anything else is logged and left alone. The page id is not checked.

Parameters

slot

number, the page slot (1 .. 36). Outside that raises. A mini has 12 slots per page, and a slot above 12 puts the control in the first one.

pageId

number, the page. Optional; without it the control moves to a slot of the page the controller is showing.

Example

lua

-- Change location of the control within the 6x6 grid

local control = controls.get(1)
control:setSlot(7)

-- ... or put it in the second slot of page 3
control:setSlot(2, 3)

<control>:getValueIds()

Retrieves a list of all valueIds associated with the control, in the order the control declares them. Retrieved valueIds, eg. value, attack can be used as parameters for the <control>:getValue(valueId) function.

The valueId is the control type's own, not a name the preset chooses: a Custom control's values all answer value, whatever the preset file calls them.

Returns

array, a list of value identifier strings.

Example

lua

-- list all value Ids of a control

local control = controls.get(1)
local valueIds = control:getValueIds ()

for i, valueId in ipairs(valueIds) do
    print(valueId)
end

<control>:getValue([valueId])

Retrieves the Value object of the given control using the valueId handle. Which handles a control has follows from its type - the table below lists them. A valueId this control does not have is not an error: it answers the control's first value, so ask getValueIds() when the type is not known in advance. A control with no values at all - a group that follows nothing - answers nil.

Parameters

valueId

string, a text that identifies a specific value of a control. Optional, defaults to 'value'.

Returns

userdata, a reference to the Value object, or nil when the control has no values.

control type	valueIds
`fader`, `list`, `pad`, `textBox`, `knob`, `relative`, `custom`, `macro`	`value`
`adsr`	`attack`, `decay`, `sustain`, `release`
`ahdsr`	`attack`, `hold`, `decay`, `sustain`, `release`
`adssr`	`attack`, `decay`, `break`, `slope`, `sustain`, `release`
`adr`	`attack`, `decay`, `release`
`ar`	`attack`, `release`
`dx7envelope`	`l1`, `r1`, `l2`, `r2`, `l3`, `r3`, `l4`, `r4`
`xypad`	`x`, `y`
`vfader`	`f1`, `f2`, `f3`, `f4`

Example

lua

-- Display min and max display values

local control = controls.get(1)
local value = control:getValue("attack")

print ("value min: " .. value:getMin())
print ("value max: " .. value:getMax())

<control>:getValues()

Retrieves a list of all Value objects associated with the control. The value objects are defined in the JSON preset.

Returns

array, a list of references to userdata Value objects.

Example

lua

-- list all value objects of a control

local control = controls.get(1)
local valueObjects = control:getValues()

for i, valueObject in ipairs(valueObjects) do
    print(string.format ("%s.%s", control:getName(), valueObject:getId()))
end

<control>:repaint()

Schedules a repaint of the control. The function is meant to be used inside the Custom control touch and pot change callbacks.

<control>:print()

Prints all attributes of the Control object to the Logger output.

Reading what a control is

Several properties could be set and not read. These are the readers.

<control>:getType()

One of "fader", "vfader", "list", "pad", "adsr", "ahdsr", "adssr", "adr", "ar", "dx7envelope", "relative", "custom", "macro", "xypad", "knob", "textBox" - and "group" for a group.

Returns

string, the control type as the preset format spells it.

<control>:getMode()

"default", "momentary", "toggle", "unipolar", "bipolar" or "cycle" - what the mode means depends on the type, and a type that has no modes answers "default".

Returns

string, the control mode as the preset format spells it.

<control>:getPot()

The counterpart of setPot(). Nil for a control no knob drives - a group, or a control placed at bounds of its own.

boolean, true when this is a group.

Bounds, by name

getBounds() and setBounds() work in a four element array indexed with the X, Y, WIDTH and HEIGHT globals, and are not going anywhere. getRect() and setRect() are the same four numbers under their own names.

<control>:getRect()

Returns

table, { x =, y =, width =, height = }.

<control>:setRect(rect)

The half the array form cannot do: setBounds() takes all four or none, so nudging a control sideways means reading its bounds, editing one of four positional slots and writing all four back.

Parameters

rect

table, any of x, y, width, height. Anything left out keeps the value it had.

Example

lua

local control = controls.get(1)

-- Move it right, leaving its size and its row alone.
control:setRect({ x = 200 })

-- The same rectangle, either way round.
local bounds = control:getBounds()   -- { x, y, width, height }
local rect = control:getRect()       -- { x =, y =, width =, height = }

print(bounds[WIDTH] == rect.width)   --> true

Example: what is under each knob

lua

for pot = 1, 12 do
    local control = preset.getControlByPot(1, 1, pot)

    if control then
        print(string.format("knob %d: %s (%s, slot %s)",
            pot, control:getName(), control:getType(),
            tostring(control:getSlot())))
    end
end

Try it yourself

🚀

Control module demo

Custom control callbacks

A control of type custom has no appearance and no behaviour of its own: the script draws it and the script answers its gestures. The five functions below hand the control a Lua function for one of those jobs. They may be called on a control of any type, and only a Custom control ever runs them.

The rules they share:

The argument must be a function. nil raises, so a callback cannot be cleared once set; assign a function that does nothing instead.
Setting one again replaces the previous function.
Only the preset that owns the control may set its callbacks. From another preset's script the call is written to the log and does nothing.
The callbacks are let go when the control is removed with controls.remove().

<control>:setPaintCallback(callback)

Assigns a function that defines how the control is drawn. The graphics functions may only be used inside it - they raise anywhere else - and their coordinates are relative to the control, so the control's own top left corner is 0, 0.

It should return quickly: it runs on the thread that paints the screen, and while it runs nothing else is drawn. When the Lua state is busy the frame is skipped and the control keeps the pixels it had.

lua

controls.get(1):setPaintCallback(function (control)
    local bounds = control:getBounds()

    graphics.setColor(control:getColor())
    graphics.drawRect(0, 0, bounds[WIDTH], bounds[HEIGHT])
    graphics.print(0, 20, control:getName(), bounds[WIDTH], CENTER)
end)

Parameters

callback

function, called with the control as its only argument, on the display thread, every time the control is repainted.

<control>:setTouchCallback(callback)

Assigns a function that will be called when a display touch event is received for the given Custom control. The callback is given the control and a touch event table - see below.

A drag reaches the callback as DOWN, a run of MOVEs and an UP: a Custom control does not take swipe events, so a finger dragged across it is not read as a page change.

lua

-- An XY pad drawn by the script: the finger's position becomes two CCs.
local marker = { x = 0, y = 0 }

controls.get(1):setTouchCallback(function (control, event)
    if event.type ~= DOWN and event.type ~= MOVE then
        return
    end

    local bounds = control:getBounds()

    marker.x, marker.y = event.x, event.y      -- pixels within the control

    midi.sendControlChange(PORT_1, 1, 16,
                           (event.x * 127) // bounds[WIDTH])
    midi.sendControlChange(PORT_1, 1, 17,
                           127 - (event.y * 127) // bounds[HEIGHT])
    control:repaint()                          -- the paint callback draws marker
end)

Parameters

callback

function, called with (control, event) when the LCD is touched inside the control.

The touch event table:

field
`type`	`DOWN`, `MOVE`, `UP`, `CLICK` or `DOUBLECLICK`
`id`	which finger, as the touch controller numbers them: the first is `0`. The LCD tracks five
`x`, `y`	where the finger is now, in pixels within the control
`touchDownX`, `touchDownY`	where the gesture started, in the same coordinates

<control>:setPotCallback(callback)

Assigns a function that will be called when a pot change event is received for the given Custom control. The callback is given the control and a knob event table - see below. A finger arriving on the knob and leaving it reach this callback too, but only while no pot touch callback is set.

A Custom control does not move its own values: without this callback its knobs do nothing at all, and what the turn changes is whatever the callback changes.

event.delta is a scaled step rather than a raw count: the scale comes from the value that knob's input names, so a knob driving a 0..127 value and one driving a 0..1000 value both feel right.

lua

-- The control declares one input and one value per knob:
--   "inputs": [{ "potId": 1, "valueId": "cutoff" },
--              { "potId": 2, "valueId": "resonance" }]
--   "values": [{ "id": "cutoff", ... }, { "id": "resonance", ... }]
--
-- event.valueId is the id of the value the turning knob drives, so it can be
-- handed straight to control:getValue().
controls.get(1):setPotCallback(function (control, event)
    if event.delta == 0 then
        return                             -- a touch, not a turn
    end

    local value = control:getValue(event.valueId)

    if value then
        local wanted = value:getValue() + event.delta

        value:setValue(math.max(value:getMin(),
                                math.min(value:getMax(), wanted)))
        control:repaint()
    end

    print(string.format("knob %d (%s) moved by %d",
                        event.id + 1, event.valueId, event.delta))
end)

Parameters

callback

function, called with (control, event) when one of the control's knobs is turned.

The knob event table, shared by the pot, pot touch and switch callbacks:

field
`type`	`1` the finger arrived, or the switch closed; `2` the knob turned; `3` the finger left, or the switch opened. The same numbers the `DOWN`, `MOVE` and `UP` globals carry
`id`	the knob, counted from zero. See the note below - this is the one pot id in the script API that is not counted from one
`valueId`	the `valueId` the preset wrote for the input this knob arrives on, or `"value"` - this is what tells one knob of a twelve-knob Custom control from another
`delta`	how far it turned, accelerated; negative to the left, `0` for anything but a turn

id is the one pot id counted from zero

control:getPot(), a control event's potId and the preset file's inputs[].potId all count from one. This id counts from zero, because that is how firmware 4.1.4 shipped it and scripts written against that release index from zero. Add 1 when you want to show it, and prefer valueId when you want to tell one knob of a Custom control from another.

<control>:setPotTouchCallback(callback)

Assigns a function for the knob being touched. The event table is the pot callback's, with type 1 for a finger arriving and 3 for one leaving, and delta always 0.

Subscribing takes the gesture over: the control's own touch events in the preset file no longer run, and the pot callback is no longer told about touches. One gesture has one owner.

lua

local held = {}

controls.get(1):setPotTouchCallback(function (control, event)
    held[event.id] = (event.type == 1) or nil
    control:repaint()                      -- draw the touched knob highlighted
end)

Parameters

callback

function, called with (control, event) when a finger arrives on one of the control's knobs or leaves it.

<control>:setSwitchCallback(callback)

Assigns a function for the switch in the knob, on a model that has one. The event table is the pot callback's, with type 1 for a press and 3 for a release, and delta always 0.

Subscribing takes the whole gesture over, which is what lets one Custom control spread across the screen answer for twelve switches: the synthetic touch the switch stands in for does not happen, a long hold opens nothing, and the control's own switch events in the preset file do not run.

lua

controls.get(1):setSwitchCallback(function (control, event)
    if event.type == 1 then                -- pressed; 3 is released
        midi.sendNoteOn(PORT_1, 1, 36 + event.id, 127)   -- id counts from zero
    else
        midi.sendNoteOff(PORT_1, 1, 36 + event.id, 0)
    end
end)

Parameters

callback

function, called with (control, event) when the switch in one of the control's knobs is pressed or released.

Example

A Custom control spanning a row, drawing one bar per knob and following all four of them.

lua

local levels = { 0, 0, 0, 0 }

function onReady()
    local control = controls.get(20)

    control:setPaintCallback(function (self)
        local bounds = self:getBounds()
        local width = bounds[WIDTH] // 4

        for i = 1, 4 do
            local height = levels[i] * bounds[HEIGHT] // 127

            graphics.setColor(i == 1 and ORANGE or self:getColor())
            graphics.fillRect((i - 1) * width + 2,
                              bounds[HEIGHT] - height,
                              width - 4,
                              height)
        end
    end)

    control:setPotCallback(function (self, event)
        if event.delta ~= 0 then
            local knob = event.id + 1          -- id counts from zero

            if levels[knob] then
                levels[knob] = math.max(0, math.min(127, levels[knob] + event.delta))
                midi.sendControlChange(PORT_1, 1, 20 + knob, levels[knob])
                self:repaint()
            end
        end
    end)

    control:setTouchCallback(function (self, event)
        if event.type == CLICK then
            levels = { 0, 0, 0, 0 }
            self:repaint()
        end
    end)
end

The control as a table

<control>:update(changes)

Changes the members present and keeps the rest. values, inputs and events given replace their list whole, and the values are taken out of the parameter map and put back in. A new type or pageId gives the control a new component; anything else is a refresh. slot may stand in for bounds.

lua

c:update { name = "CUT", color = "F45C51" }
c:update { values = { { id = "value", min = 0, max = 100,
                        message = { deviceId = 1, type = "cc7",
                                    parameterNumber = 75, min = 0, max = 100 } } } }

Parameters

changes

table, the members to change, in the preset file's shape.

<control>:toTable()

The whole control - bounds, inputs, values with their messages, events - in the file's shape, with the writer's fold-backs applied: a pad's on and off values, a program change's parameter number. It goes back in as it came out: controls.create(c:toTable()) in another preset is a copy.

Returns

table, the control as the preset file would write it.

Value

A Value object represents a single data value inside a Control. Each Value is identified by a valueId, and a Control can have one or more Values. The Value object describes the data users can change through interaction and provides functions to access and modify that data.

A Value object is reached through its control - control:getValue(valueId), control:getValues() - or through its message with message:getControlValue(). There is no constructor: the global ControlValue() exists and always raises.

Two spaces, one parameter

A Value works in display space. A Message works in MIDI space. Both reach the same parameter map entry, so a write through either is visible through the other.

value:getValue() and value:setValue() are the number the control shows. message:getValue() and message:setValue() are the number on the wire.

What a display value is depends on the kind of value:

kind	display value
proportional (faders, dials)	recomputed between the value's own min and max and the message's, through its sign mode and bit width, and constrained to the value's range
discrete (lists)	the index of the overlay item, counted from zero - not the item's MIDI value
state (pads)	`0` or `1`, which become the message's off and on values

Functions

<value>:getId()

Retrieves the identifier of the Value - valueId. The identifier is assigned to the Value in the preset JSON.

Returns

string, a text that identifies a specific value of a control.

<value>:setName(name)

Sets a new name of the value and repaints the control. This is the label the detail window and the multi-value controls show for the handle - not the valueId, which follows from the control's type and cannot be changed.

Parameters

name

string, the new name to assign to the control value. Longer than 20 characters is cut to 20.

<value>:getName()

Retrieves the current name of the value.

Returns

string, the current name assigned to the value, or an empty string when the preset set none.

<value>:setDefault(defaultValue)

Sets the default display value of the Value object.

Parameters

defaultValue

number, the default display value to be set.

<value>:getDefault()

Retrieves the default display value currently set for the Value object - the defaultValue the preset file declared. It is a property of the value, not a reading of the parameter map, so a value nothing has set still answers it.

Returns

number, the current default display value.

<value>:setSensitivity(factor)

Sets how far a knob has to turn to move the value. A knob sweeps the whole range of a proportional value in one turn, so a wide range is a fast knob; 0.1 makes a sweep cover a tenth of the range without changing the range. A list steps one item per detent, and 0.5 makes it two detents per item. Fine adjustment multiplies on top. Takes effect on the next turn of the knob. The same as the sensitivity property of a value in the preset JSON.

lua

-- One sweep of the knob moves the scroll by a tenth of its range
controls.get(215):getValue("value"):setSensitivity(0.1)

Parameters

factor

number, a factor on the knob's usual rate (0.001 .. 100). 1 is the usual rate.

<value>:getSensitivity()

Returns

number, the factor on the knob's usual rate; 1 unless set.

<value>:setMin(minumumValue)

Sets the minimum display value of the Value object.

Parameters

minumumValue

number, the minimum display value to be set.

<value>:getMin()

Retrieves the minimum display value currently set for the Value object.

Returns

number, the current minimum display value.

<value>:setMax(maximumValue)

Sets the maximum display value of the Value object.

Parameters

maximumValue

number, the maximum display value to be set.

<value>:getMax()

Retrieves the maximum display value currently set for the Value object.

Returns

number, the current maximum display value.

<value>:setRange(minimumValue, maximumValue, defaultValue [, applyToMessage])

Changes the display value range of the Value object and, if asked, updates the underlying Message object as well. This function is a shortcut that avoids making many separate calls to Value and Message setters.

The two ranges are different things. The display range is what the control shows; the MIDI range is what goes on the wire. Pass true only where they are meant to be the same numbers - a display range of -64 .. 63 copied onto the message sends negative MIDI values.

Parameters

minimumValue

number, the minimum display value to be set.

maximumValue

number, the maximum display value to be set.

defaultValue

number, the default display value to be set.

applyToMessage

boolean, when true the same numbers are written to the underlying Message as its MIDI range. Optional, false when left out.

<value>:setOverlayId(overlayId)

Assigns an overlay list to the Value object. The overlayId is defined in the preset JSON or created using the overlays.create() function.

Only a List takes its range from the list: a List's value is an index into it, so attaching an overlay sets that value to 0 .. the last index. A fader, a knob or a pad keeps the range it has and uses the overlay for the labels of the values it matches.

An id the preset has no overlay for detaches whatever the value had, quietly, and getOverlayId() goes on answering the id it had before. Prefer setOverlay(), which takes the object, and clearOverlay(), which says what it means.

Parameters

overlayId

number, an identifier of the overlay. 0, and an id the preset does not have, detach the overlay.

<value>:getOverlayId()

Retrieves the overlayId currently assigned to the Value object. It is the id the value was last successfully given, which after a failed or removed overlay is not the overlay it is showing - getOverlay() answers that.

Returns

number, an identifier of the overlay, or 0 when the value never had one.

Example

lua

--  swap the overlay lists of two controls

local valueA = controls.get(1):getValue("value")
local valueB = controls.get(2):getValue("value")

local overlayA = valueA:getOverlay()
local overlayB = valueB:getOverlay()

if overlayA and overlayB then
    valueA:setOverlay(overlayB)
    valueB:setOverlay(overlayA)
end

<value>:overrideValue(valueText)

Replaces the current value with custom text on the control's display. This custom text also overrides the output from Value Formatters.

Parameters

valueText

string, a text to be displayed instead of current display value, at most 20 characters. An empty string cancels the override and discards the text.

<value>:cancelOverride()

Clears the overridden text set by <value>:overrideValue() and restores the display of the current value."

<value>:getOverride()

Reads back the text set with <value>:overrideValue(). This is what makes an edited name sendable: a script can put the text the user typed back onto the synth without keeping its own copy of it.

Returns

string, the override text, or an empty string when none is set.

<value>:isOverrideEnabled()

Whether an override is being displayed. Distinct from the text being empty: an override that is in force and holds no text is a value that deliberately shows nothing.

Returns

boolean, true when an override is in force.

<value>:setOverrideEnabled(enabled)

Puts the stored override in or out of force without discarding its text, so a name can be hidden and shown again without the script holding onto it.

Parameters

enabled

boolean, whether the stored override text is displayed.

An override belongs to the parameter

The override is stored on the parameter the value is assigned to, not on the control. Two controls pointed at the same message therefore show the same override, and setting it through either of them changes both. This is what lets a text box show a name that a fader elsewhere in the preset is also labelled with.

<value>:getMessage()

Retrieves the Message object assigned to the Value object.

Returns

userdata, a reference to the Message object.

Example

lua

-- Get the message associated with the release value

local control = controls.get(1)
local value = control:getValue("release")
local message = value:getMessage()

Every method of every object here is called with a colon. value.getMessage() raises ControlValue expected, because the object itself is the first argument.

<value>:getControl()

Retrieves the Control object that this Value belongs to. This is how a formatter or a value function reaches the control it was run for.

Returns

userdata, a reference to the Control object.

<value>:getValue()

Retrieves the current display value of the Value object, read from the parameter map. See the warning below: ask isSet() first where it matters.

Returns

number, the current display value.

<value>:print()

Prints all attributes of the Value object to the Logger output.

Try it yourself

🚀

Value module demo

Setting and converting

<value>:setValue(displayValue)

Sets the value the control shows, which reaches the parameter map as MIDI. Every control bound to that parameter follows, exactly as if the knob had been turned.

A proportional value is constrained to its own minimum and maximum. A list index the overlay does not have is clamped to the nearest one it does, rather than selecting the first item.

It raises on a group's value, which is read only.

Parameters

displayValue

number, in display space - see the table above. A whole number: 64.5 raises, 64.0 does not.

<value>:updateValue(displayValue)

The same write, announced to nobody: the parameter takes the value and the screen is repainted, and nothing is sent, no remote map is told and the control's own function does not run.

It is the same pair the parameter map has: parameterMap.set() tells everything and parameterMap.updateValue() tells nothing. setValue() is a value being changed - dispatched exactly as a knob turn is - and this is a value being shown.

Which is what a script putting its own state onto the knobs wants. With setValue() it hears its own writes back through its own callbacks, and every one of them has to survive that.

Clamped exactly as setValue() is.

Parameters

displayValue

A value that declares no formatter never has one composed, and this answers an empty string rather than the number - the firmware only builds the text where a formatter asked for it. So anything showing a value to a human wants a fallback:

lua

local text = value:getText()

if text == "" then
    text = tostring(value:getValue())
end

Returns

string, the formatter's last output, or an empty string.

<value>:getOverlay()

The overlay this value reads its labels from. getOverlayId() answers a number that then has to go to overlays.get(), which raises for an id the preset does not have; this answers the object or nil.

Returns

userdata, an Overlay object, or nil.

<value>:setOverlay(overlay)

Points the value at an overlay, and repaints the control. Takes either the object overlays.get() answers or the plain id setOverlayId() takes, so an overlay just built by overlays.create() can be handed straight over.

Only a List's range follows the overlay in: a List's value is an index into the list, so its range becomes 0 .. the last index the list has. A fader given an overlay keeps its own range and shows the label of whichever item its value matches.

Parameters

overlay

userdata or number, an Overlay object or an overlay id.

<value>:clearOverlay()

Detaches the overlay, so the value shows its plain number again. getOverlay() answers nil afterwards and getOverlayId() answers 0.

A fader's range was never touched, so there is nothing to put back. A List is left at the 0 .. last index the overlay gave it, because nothing recorded what it was before - a List that wants another range sets it with setRange() or setMax().

An unset parameter reads as maximum

A parameter nothing has set holds MIDI_VALUE_DO_NOT_SEND (16537). That is a real value and a deliberate one - it means "there is nothing to send" - but it is not inside any parameter's range, so translating it into display space lands at the top of the range.

A control that has never been touched therefore reads as being at maximum. Ask value:isSet() or message:isValueSet() before trusting the number.

Example

lua

local value = controls.get(1):getValue("value")

if value:isSet() then
    print(value:getValue(), value:getText())
end

-- Display space here ...
value:setValue(64)

-- ... and the same parameter, in MIDI space.
print(value:getMessage():getValue())

lua

-- A list: the display value is the index, and the overlay says what it means.
local list = controls.get(2):getValue("value")

list:setValue(2)            -- the third item

local overlay = list:getOverlay()

if overlay then
    print(list:getValue(), list:getText())
end

A group's value is read only

A group may follow a MIDI parameter and show the overlay item it selects. It declares no inputs, no pot drives it and it never transmits, so every setter on its value raises rather than pretending. Reading is what it is for - see Group.

Message

The Message object holds the actual MIDI or virtual message that Control’s Value object sends and receives. Every Value object is linked to exactly one Message object, and message:getControlValue() leads back to it.

A message is reached through its value - control:getValue("value"):getMessage(). There is no constructor: the global Message() exists and always raises.

number, the current maximum MIDI value.

<message>:setRange(minimumValue, maximumValue)

Changes the MIDI value range of the Message object. This function is a shortcut that avoids making two separate calls to Message setMin() and setMax() functions.

Parameters

minimumValue

number, the minimum MIDI value to be set (0 .. 16538).

maximumValue

number, the maximum MIDI value to be set (0 .. 16538).

<message>:setOffValue(offValue)

Sets the MIDI value that is sent when a State control, such as a Pad, is turned off.

Parameters

offValue

number, the MIDI value used when the control is in the Off state (0 .. 16538).

<message>:getOffValue()

Retrieves the MIDI value currently set for the Message object associated with control in the Off state.

Returns

number, the current MIDI value used when the control is in the Off state.

<message>:setOnValue(onValue)

Sets the MIDI value that is sent when a State control, such as a Pad, is turned on.

Parameters

onValue

number, the MIDI value used when the control is in the On state (0 .. 16538).

<message>:getOnValue()

Retrieves the MIDI value currently set for the Message object associated with control in the On state.

Returns

number, the current MIDI value used when the control is in the On state.

Example

lua

-- Print info about the message

function valueCallback (valueObject, value)
    local message = valueObject:getMessage ()

    print ("Device Id: " .. message:getDeviceId ())
    print ("Type: " .. message:getType ())
    print ("Parameter Number: " .. message:getParameterNumber ())
    print ("Current value: " .. message:getValue ())
end

<message>:print()

Prints all attributes of the Message object to the Logger output.

Try it yourself

🚀

Message module demo

How the message is encoded

The preset format carries these and the object never showed them, so a script working out what a fourteen-bit or a signed parameter would send had to know the answer already.

<message>:getBitWidth()

userdata, the Value this message belongs to, or nil.

Whether there is a value at all

<message>:isValueSet()

The same question as message:getValue() ~= MIDI_VALUE_DO_NOT_SEND, without the constant. See the warning under Value: an unset parameter reads as the top of the range in display space.

Returns

boolean, false when nothing has set this parameter.

<message>:clearValue()

Marks the parameter as having no value, so nothing is sent for it. The write that makes isValueSet() false.

Value formatters

A value formatter is a custom function that formats how a control's value is displayed. It receives a display value as input and returns a new value as a string. This allows users to customize how information appears on the screen in many different ways.

To use a formatter, you must assign it to a Value in the preset JSON by adding a formatter attribute to the Value object. The attribute is the name of a global function in the preset's script.

The value formatter runs automatically whenever the underlying MIDI value changes. The text it returns is kept on the value: the control draws it, and value:getText() reads it back. A value that declares no formatter has no text, and getText() answers an empty string rather than the number.

A value of a relative control has no position, so its formatter runs once for every step the control sends instead, with the step as the value - 1 or -1, or up to 10 for an accelerated control - and never when nothing moved.

What the firmware does with what the formatter returns:

a string, or a number: it becomes the text, cut to 20 characters;
an empty string, no return value at all, or anything that is not a string or a number: the value keeps the text it had, and the reason is written to the log;
an error: it is logged, and the value keeps the text it had.

The formatter runs on whichever thread the value changed on - the MIDI thread for an incoming message, the application thread for a knob - so keep it short and keep it pure. It must not send MIDI, load a preset or edit the preset.

Example preset JSON

JSON

"values": [
   {
      "message": {
         "deviceId": 1,
         "type": "cc7",
         "parameterNumber": 2,
         "min": 0,
         "max": 127
      },
      "id": "value",
      "min": 0,
      "max": 127,
      "formatter": "formatFractions"
   }
]

For more detailed information about the preset JSON, visit the Preset JSON format page.

Functions

<formatterFunction>(valueObject, value)

A user-defined function that transforms the input display value into a text string shown on the screen.

Parameters

valueObject

userdata, a reference to a userdata Value object that was changed.

value

number, a new display value to be formatted.

Returns

string, the text to show. At most 20 characters.

The value is an integer

value arrives as a Lua integer, so value .. "%" prints 64%, and string.format("%d%%", value) prints the same. Firmware built before September 2026 passed a float, which printed 64.0%; string.format gives the same text on both.

Example

lua

-- Convert number to a range with decimal numbers
function formatFractions(valueObject, value)
    return (string.format("%.1f", value / 20))
end

-- add percentage to the value
function addPercentage(valueObject, value)
    return (string.format("%d%%", value))
end

-- name the note a number stands for
local notes = { "C", "C#", "D", "D#", "E", "F",
                "F#", "G", "G#", "A", "A#", "B" }

function formatNote(valueObject, value)
    local note = math.floor(value)

    return (string.format("%s%d", notes[(note % 12) + 1], (note // 12) - 1))
end

The whole path, in a preset that shows a filter cutoff in hertz:

JSON

{
   "id": 1, "type": "fader", "name": "CUTOFF", "pageId": 1,
   "controlSetId": 1, "inputs": [ { "potId": 1, "valueId": "value" } ],
   "values": [
      { "id": "value", "min": 0, "max": 127, "defaultValue": 64,
        "formatter": "formatHertz",
        "message": { "deviceId": 1, "type": "cc7", "parameterNumber": 74,
                     "min": 0, "max": 127 } }
   ]
}

lua

function formatHertz(valueObject, value)
    return (string.format("%d Hz", math.floor(20 * math.exp(value / 20))))
end

-- and the same text, read back wherever it is needed
function currentCutoff()
    return (controls.get(1):getValue("value"):getText())
end

Value function callbacks

A value function callback is a user-defined function that lets you run custom actions whenever a control's value changes.

To use a callback, you must assign it to a Value in the preset JSON by adding a function attribute to the Value object, naming a global function in the preset's script. You can think of a callback as a flexible alternative to a Message: while a Message sends a fixed MIDI command, a function runs dynamic Lua code when the value changes.

A value may have both a function and a formatter. The function runs first, so the formatter sees whatever the function changed.

For a value of a relative control the function runs once for every step the control sends, with the step as the value, and never when nothing moved. Before firmware 5.0.0 it did not run for relative controls at all.

The function returns nothing; a return value is ignored. Anything it raises is logged and the change carries on. Like a formatter, it runs on the thread the value changed on, so it must not block - and it must not edit the preset, which only the application thread may do.

<value>:updateValue() is the write that does not run it. A function that writes back to its own value with setValue() hears itself.

Example preset JSON

JSON

"values": [
   {
      "message": {
         "deviceId": 1,
         "type": "cc7",
         "parameterNumber": 2,
         "min": 0,
         "max": 127
      },
      "id": "attack",
      "min": 0,
      "max": 127,
      "function": "highlightOnOverload"
   }
]

For more detailed information about the preset JSON, visit the Preset JSON format page.

Functions

<customFunction>(valueObject, value)

A user-defined function that executes Lua code whenever a control's value changes.

Parameters

valueObject

userdata, a reference to a userdata Value object that was changed.

value

number, a new display value to be processed.

Example

The value object leads back to its control, so one function can serve every control that names it.

lua

function highlightOnOverload (valueObject, value)
    local control = valueObject:getControl()

    if (value > 64) then
        control:setColor (ORANGE)
    else
        control:setColor (WHITE)
    end
end

Example

A function used in place of a MIDI message: the value is not sent as one parameter but turned into two.

JSON

"values": [
   {
      "id": "value", "min": 0, "max": 127, "defaultValue": 0,
      "function": "sendAsPair",
      "message": { "deviceId": 1, "type": "virtual", "parameterNumber": 1,
                   "min": 0, "max": 127 }
   }
]

lua

function sendAsPair(valueObject, value)
    local coarse = math.floor(value) // 8
    local fine = math.floor(value) % 8

    midi.sendControlChange(PORT_1, 1, 16, coarse)
    midi.sendControlChange(PORT_1, 1, 48, fine)
end

Control event callbacks

A control event callback is a user-defined function that runs when a control's knob switch is pressed or its knob is touched.

Unlike a value function callback, which runs when a value changes, an event callback runs on a gesture. It is assigned in the preset JSON by adding an events array to a control and naming the function in a lua action. The same function may be named by several controls and by several events - the arguments tell it which one ran it. The source and the event arrive as numbers, given by the EVENT_SOURCE_* and EVENT_TYPE_* globals, the same way every other enum the script API hands out is.

On an Electra One mini a switch event is the switch in the knob. An mk2 has none, so a touch of the control on the LCD takes its place. A touch event is the knob being touched on either model.

A control that declares any switch event takes over the whole of its LCD touch handling: a pad with a switch event no longer toggles its value, and a fader no longer drags. That is the point of the events - they replace what the firmware would otherwise do. touch events are additive: they run alongside the highlighting and the pot reporting that make the knob work at all.

The callback runs on the application thread, so it may do anything a script can do - send MIDI, switch pages, edit the preset. An error it raises is logged and the remaining actions of the event still run.

Example preset JSON

JSON

"events": [
   {
      "source": "switch",
      "event": "press",
      "actions": [
         { "type": "lua", "function": "onSwitch" }
      ]
   },
   {
      "source": "switch",
      "event": "release",
      "actions": [
         { "type": "lua", "function": "onSwitch" }
      ]
   }
]

For more detailed information about the preset JSON, visit the Preset JSON format page.

Functions

<eventFunction>(control, source, event, potId, valueId, value)

A user-defined function that executes Lua code when a control's knob switch or knob touch is used.

Parameters

control

userdata, a reference to the Control object the event belongs to.

source

enum, the gesture that produced the event [EVENT_SOURCE_SWITCH, EVENT_SOURCE_TOUCH].

event

enum, which edge ran it: [EVENT_TYPE_PRESS, EVENT_TYPE_RELEASE] for a switch, [EVENT_TYPE_BEGIN, EVENT_TYPE_END] for a touch.

potId

number, the pot the event came from, counted from one. Zero when no pot drives the control.

valueId

string, the handle the control has in focus, as control:getValue() spells it. An empty string when the control declares no values.

value

number, what that handle reads now, as a display value.

<valueFunction>(control, source, event, potId, valueId, value)

The same signature, used where a message action names a function in place of a fixed value. It is expected to return the number to send; nothing is sent if it returns anything else. One function can serve as both, since the arguments are identical.

Parameters

control

userdata, a reference to the Control object the event belongs to.

source

enum, the gesture that produced the event [EVENT_SOURCE_SWITCH, EVENT_SOURCE_TOUCH].

event

enum, which edge ran it [EVENT_TYPE_PRESS, EVENT_TYPE_RELEASE, EVENT_TYPE_BEGIN, EVENT_TYPE_END].

potId

number, the pot the event came from, counted from one.

valueId

string, the handle the control has in focus.

value

number, what that handle reads now.

Example

The simplest case - do something while the switch is held.

lua

function onSwitch(control, source, event, potId, valueId, value)
    if (event == EVENT_TYPE_PRESS) then
        control:setColor(ORANGE)
    else
        control:setColor(WHITE)
    end
end

Example

One function serving every knob on the page. potId says which knob it was, counted from one, so it can be used directly as a MIDI parameter number or an array index.

lua

local names = { "OSC", "FILTER", "ENV", "LFO" }

function onKnobTouch(control, source, event, potId, valueId, value)
    if (event == EVENT_TYPE_BEGIN) then
        print("touched knob " .. potId .. " - " .. (names[potId] or "?"))
        midi.sendControlChange(PORT_1, 1, 100 + potId, 127)
    else
        midi.sendControlChange(PORT_1, 1, 100 + potId, 0)
    end
end

Example

Acting on whatever the control currently shows. valueId is the handle in focus - "value" for a fader, "attack" or "release" for an envelope - and value is what it reads, so a script can respond without looking the value up.

lua

function onSwitch(control, source, event, potId, valueId, value)
    if (event ~= EVENT_TYPE_PRESS) then
        return
    end

    print(control:getName() .. "." .. valueId .. " is " .. value)

    -- the handle in focus, ready to be read or changed
    local valueObject = control:getValue(valueId)
    print("its range is " .. valueObject:getMin() .. " to " .. valueObject:getMax())
end

Example

Answering with the value a message action should send. The message names the function instead of a number, so what goes out is decided when the event runs.

JSON

{
   "type": "message",
   "message": {
      "type": "cc7",
      "deviceId": 1,
      "parameterNumber": 30,
      "value": "pickValue"
   }
}

lua

-- send the control's own value on press, and zero on release
function pickValue(control, source, event, potId, valueId, value)
    if (event == EVENT_TYPE_PRESS) then
        return (value)
    end

    return (0)
end

Example

A latching switch. With "mode": "toggle" in the preset JSON, the first press runs the press actions, letting go runs nothing, and the next press runs the release actions - so the callback sees EVENT_TYPE_PRESS and EVENT_TYPE_RELEASE alternating, one per press.

JSON

{
   "source": "switch",
   "event": "press",
   "mode": "toggle",
   "actions": [ { "type": "lua", "function": "onLatch" } ]
}

lua

function onLatch(control, source, event, potId, valueId, value)
    if (event == EVENT_TYPE_PRESS) then
        control:setName("ON")
    else
        control:setName("OFF")
    end

    control:repaint()
end

How a preset is laid out

A page is a named set of controls. A preset has up to 12 pages on an mk2 and up to 16 on a mini, and a page only exists when the preset declares it - there is no page 5 in a preset with three pages.

A page holds control sets: three banks of knobs, switched with the buttons below the screen, so that a page can carry more parameters than the instrument has knobs. Each control is in one of them, and only the active set is being turned. A mini's third row of slots is its four context buttons rather than a control set.

A group is a label with a line or a box under it, drawn across a row of slots to say what those controls have in common. It is a control of type "group": it shares the control id space, sits on a page, and comes back from controls.getAll() and preset.getControls() along with everything else.

An overlay is a list of items, each an integer value and a label - and optionally a colour and a small bitmap. A List control shows an overlay item instead of a number, a Fader may be labelled by one, and a Group may follow one. Overlays belong to the preset and are shared: several values may point at the same overlay.

Pages

The pages module allows you to get information about pages, check their status, and switch from one page to another.

Functions

pages.get(pageId)

Retrieves a reference to a Page object (Lua userdata). A Page represents a named collection of controls and groups displayed on the screen at the same time.

An id outside the model's range raises.

An id inside it that the preset does not declare - the usual case for a preset with three pages - does not raise and does not answer nil. It answers a stand-in Page object whose getId() is 0 and whose name is empty. Test for that, or use preset.getPage(id), which answers nil for a page the preset does not have:

lua

local page = pages.get(5)

if page:getId() == 0 then
    print("there is no page 5 in this preset")
end

The global Page(id) is the same function under another name.

Parameters

pageId

number, a numeric identifier of the Page: 1 .. 12 on an mk2, 1 .. 16 on a mini.

Returns

userdata, an object representing the page.

pages.getAll()

Retrieves an array of Page object references (Lua userdata) used in the preset.

The array is indexed by page id and is always full length, so its size is the model's page count rather than the preset's. A page the preset does not declare is a stand-in object whose getId() is 0 - filter on that:

lua

for id, page in ipairs(pages.getAll()) do
    if page:getId() ~= 0 then
        print(id, page:getName())
    end
end

Returns

array, one entry per page id the model has: 12 on an mk2, 16 on a mini.

pages.getActive()

Retrieves a reference to the currently active Page object (Lua userdata) - the page of the preset on screen. A script pinned in the background gets the page of the preset the user is looking at, not one of its own.

Returns

userdata, a reference to the currently active Page.

pages.display(pageId [, controlSetId])

Changes the currently displayed page. The switch is queued and happens a moment later on the application thread, which is what makes it safe to call from a MIDI or timer callback.

Asking for the page already on screen does nothing and says so in the log. Asking for a page the preset does not declare, or one that is hidden, only redraws what is there.

To open a page on a particular control set, set the page's own default with <page>:update{ defaultControlSetId = n } first.

Parameters

pageId

number, a numeric identifier of the Page: 1 .. 12 on an mk2, 1 .. 16 on a mini. Outside that raises.

controlSetId

number, the control set to show with it: 1, 2 or 3. Optional. Accepted and checked, but it has no effect in firmware 5.0 - the page opens on its own default control set.

pages.setActiveControlSet(controlSetId)

Switches the active Control set on the current page. It acts as a shortcut so you don’t have to manually query the active page first. It has no effect on a page whose active control set is locked - see <page>:lockActiveControlSet().

Parameters

controlSetId

number, the Control set: 1, 2 or 3, or CONTROL_SET_1 .. CONTROL_SET_3. Outside that raises.

pages.getActiveControlSet()

Retrieves the information about currently selected Control set of the active page.

Returns

number, the Control set of the page on screen: 1, 2 or 3.

pages.onControlSetChange(pageId, newControlSetId, oldControlSetId)

A callback that runs when the active Control set of the page on screen changes

by the control set buttons, by pages.setActiveControlSet() or by a page:setControlSets() that moved the page off a set it no longer allows. Define it as function pages.onControlSetChange(pageId, newControlSetId, oldControlSetId) in the preset's script.

It follows the rules of pages.onChange(): no subscription, the application thread, the script of the preset on screen. Entering a page does not report here - that is pages.onChange() - and a switch the page refused (a locked page, a set outside its allowed ones) does not either, because nothing changed.

Parameters

pageId

number, the page on screen.

newControlSetId

number, the Control set now active: 1, 2 or 3.

oldControlSetId

number, the Control set left.

pages.onChange(newPageId, oldPageId)

A callback function that runs automatically when the user switches to a different page. Define it as function pages.onChange(newPageId, oldPageId) in the preset's script.

It needs no subscription and always runs, on the application thread, in the script of the preset on screen. It is not events.onPageChange, which carries the same two numbers but only runs when the script has subscribed to PAGES.

Parameters

newPageId

number, a numeric identifier of the Page being activated.

oldPageId

number, a numeric identifier of the Page being left.

Example

lua

-- Retrieve a reference to given page

local page = pages.get(3)

lua

-- Name every page after the first control on it, and follow page changes.

function onReady()
    for id, page in ipairs(pages.getAll()) do
        if page:getId() ~= 0 then
            local onPage = preset.getControlsOnPage(id)

            if onPage[1] then
                page:setName(onPage[1]:getName())
            end
        end
    end
end

function pages.onChange(newPageId, oldPageId)
    print(string.format("page %d -> %d", oldPageId, newPageId))
end

One set in the table is the same as lockActiveControlSet(true) on that set, declared in one line. The list is not written to the preset file; it lasts until it is changed or the preset is loaded again, so a preset sets it in preset.onLoad().

lua

-- the graphs live on control set 1 and have nothing to turn: the knobs stay
-- on the two rows of faders
pages.get(6):setControlSets({ 2, 3 })

-- one row of knobs only
pages.get(11):setControlSets({ 3 })

-- back to all three
pages.get(6):setControlSets(nil)

Parameters

controlSets

table, the Control sets the page allows, any of 1, 2 and 3 in any order - or nil for all three. A set outside 1 to 3 raises.

<page>:getControlSets()

Retrieves the Control sets the page allows.

Returns

table, the Control sets the page allows, in ascending order - { 1, 2, 3 } unless limited.

<page>:setDefaultControlSet(controlSetId)

Sets the Control set the page opens on - the defaultControlSetId of the preset file, which counts from zero there and from one here. The controller honours it when its active control set mode is Custom (the setting under System / UI features); in the Global and Local modes a page opens on the set the controller or the page was last on. A default the page does not allow (see setControlSets()) is clamped to its lowest allowed set on entry.

Like page:update{ defaultControlSetId = n } this edits the preset in memory; unlike it, it counts the set from one.

Parameters

controlSetId

number, the Control set the page opens on: 1, 2 or 3.

<page>:getDefaultControlSet()

Retrieves the Control set the page opens on.

Returns

number, the Control set the page opens on: 1, 2 or 3.

<page>:lockActiveControlSet(shouldBeLocked)

Holds the page on the control set it is showing. While a page is locked the control set buttons do not switch it, and pages.setActiveControlSet() does not either - which is what a preset that has given those buttons another job wants.

The lock is not written to the preset file; it lasts until it is unlocked or the preset is loaded again.

Parameters

shouldBeLocked

boolean, true to hold the page on its current control set. Anything false or nil unlocks it.

<page>:isActiveControlSetLocked()

Retrieves whether the page's active control set is locked.

Returns

boolean, true when the page is holding its control set.

Example

lua

-- change the name of a page

local page = pages.get(1)

page:setName("LPF")
print("page name: " .. page:getName())

lua

-- Hold page 1 on its control set while a shift pad is held, and
-- let the pages be walked without the hidden ones.

function onShift(control, source, event, potId, valueId, value)
    pages.get(1):lockActiveControlSet(event == EVENT_TYPE_PRESS)
end

function nextVisiblePage()
    local all = pages.getAll()
    local id = pages.getActive():getId()

    for step = 1, 16 do
        local candidate = all[(id + step - 1) % 16 + 1]

        if candidate and candidate:getId() ~= 0 and not candidate:isHidden() then
            pages.display(candidate:getId())
            return
        end
    end
end

<page>:print()

Prints all attributes of the Page object to the Logger output.

Try it yourself

🚀

Page module demo

<page>:update(changes)

Firmware 5.0 and later. Sets the members present and leaves the rest alone. It goes through the same reader the preset file goes through, so page:update(otherPage:toTable()) copies a page's properties.

Unlike the setters above, this one works on the preset the page belongs to. It may only be called on the application thread - from onReady, a control callback, a command or a patch hook, not from a timer.

lua

pages.get(2):update { name = "FILTER", defaultControlSetId = 2, hidden = false }

Parameters

changes

table, with name, defaultControlSetId and/or hidden - the page as the preset file has it.

<page>:toTable()

{ id, name, defaultControlSetId, hidden }.

Returns

table, the page as the preset file would write it.

Groups

The groups module helps you manage groups inside a preset. A Group is a graphical element that organizes and improves the layout of preset pages.

Functions

groups.get(groupId)

Retrieves a reference to a Group object (Lua userdata).

Raises when the preset has no group with that id - a control's id raises here as loudly as an unused one - and when the id is outside 1 .. 864. Guard it with preset.getGroup(id), which answers nil, or test what a collection hands back with isGroup().

The global Group(id) is the same function under another name.

Parameters

groupId

number, the id of the group (1 .. 864).

Returns

userdata, an object representing the Group.

Example

lua

-- Retrieve a reference to given group

local group = groups.get(1)

-- the same lookup, without a raise for a missing group
local maybe = preset.getGroup(1)

if maybe then
    print(maybe:getName())
end

groups.create(group)

Firmware 5.0 and later. Creates a group from its file shape, the way controls.create() creates a control. pageId is required; id may be left out and is then the lowest free control id.

Like every other preset edit this may only be done on the application thread - from onReady, a control callback, a command or a patch hook, not from a timer.

Give a group bounds rather than slot: a slot here is converted with a control's geometry, not a group's, and the group lands a few pixels off. Set the position afterwards with group:setSlot(), which uses the group grid.

lua

local g = groups.create {
    pageId = 1, name = "OSCILLATOR", color = "529DEC",
    bounds = { 0, 0, 512, 22 }
}

g:setSlot(1, 3)          -- three slots wide, on the group grid

Parameters

group

table, the group as the preset file has it: id (optional), pageId, name, color, bounds, variant, values.

Returns

userdata, the new Group object.

groups.remove(groupId)

Takes the group out of the preset and off the screen. A control's id is not a group's: asking for one answers false and removes nothing.

Parameters

groupId

number, the id of the group to remove (1 .. 864).

Returns

boolean, true when a group was removed.

Group

A Group object stores its own data and provides functions to update and manage it.

Note

A group that follows a MIDI parameter - one given a values array in the preset JSON - takes its label and its color from the overlay item the current value selects. Anything a script sets with setLabel or setColor on such a group is replaced the next time that parameter changes. Set the overlay item's label and color instead, or leave the value off the group and drive it from Lua alone.

Functions

<group>:getId()

Retrieves an identifier of the Group. The identifier is assigned to the Group in the preset JSON, and it comes from the same id space the controls use.

Returns

number, the id of the Group (1 .. 864).

number, a number representing the color as a 24-bit RGB value.

<group>:setVariant(variant)

Sets a variant for the Group - the shape it is drawn in. VT_DEFAULT is the line under the label, VT_HIGHLIGHTED fills it, VT_BUTTONLIKE draws it as a pad. The other VT_ variants belong to control types that a group is not, and are refused rather than stored and ignored. See the Globals section.

This one takes the number, where control:setVariant() takes the name. group:getVariant() answers the name, as a control's does.

Parameters

variant

number, the variant: VT_DEFAULT, VT_HIGHLIGHTED or VT_BUTTONLIKE. Any other number raises.

<group>:setFont({size, weight, spacing})

Sets the face the group draws its label in. Every field is optional and what is left out is left alone. A field naming something outside its range raises.

A group is one of the two things on screen whose face the preset chooses, so unlike a control's this is never ignored.

Parameters

size

number, one of SMALL, MEDIUM, LARGE or HUGE. Optional.

weight

number, REGULAR or BOLD. Optional.

spacing

number, PROPORTIONAL or MONOSPACED. Optional.

<group>:getFont()

Retrieves the face the group draws its label in.

Returns

table, with size, weight and spacing - the same shape setFont() takes.

<group>:setBounds({x, y, width, height})

Sets the bounding box (position and dimensions) of the Group on the screen. The function expects an array of four numbers to be passed as an argument; all four are required. Use the X, Y, WIDTH, HEIGHTglobals to access individual members of the array.

The rectangle is cut to fit inside 1024 x 550 - the mk2's control area - on every model.

Parameters

number, X position on the screen.

number, Y position on the screen.

width

number, width of the Group.

height

number, height of the Group. 16 or less draws a line rather than a box.

<group>:getBounds()

Retrieves the bounding box (position and dimensions) of the Group on the screen. Use the X, Y, WIDTH, HEIGHTglobals to access individual members of the array.

Returns

array, an array consisting of x, y, width, height boundary box attributes.

Example

lua

-- change group slot and dimensions

-- A line over three slots of the first row
local group1 = groups.get(1)

print("Label name: " .. group1:getLabel())
group1:setSlot(1, 3)

-- A box two slots wide and two rows tall, starting at slot 9
local group2 = groups.get(2)

print("Label name: " .. group2:getLabel())
group2:setSlot(9, 2, 2)

<group>:setSlot(slot, width [, height])

Moves the given Group to a preset slot on the page being shown and adjusts its horizontal and vertical span. A height of 0 creates a thin line; any other height setting forms a rectangle.

The grid is the model's own: six columns of six rows on an mk2, four columns of two rows plus the context-button row on a mini, where a group in slots 9 to 12 is always a line.

Keep the span inside the row: slot and width must describe columns the page has. A group asked to span past the end of its row is not clipped back to a sensible width, and can end up drawn many times wider than the screen.

Parameters

slot

number, the page slot the group starts at (1 .. 36). Outside that raises.

width

number, a horizontal span of the Group in slot units (1 .. 6). Outside that raises.

height

number, a vertical span of the Group in slot units (0 .. 6). Optional, 0 when left out. Outside that raises.

<group>:setHorizontalSpan(width)

Changes the horizontal span of the group, keeping where it starts.

This one is measured in the mk2's grid on every model, so on a mini use setSlot(), which knows the model's geometry.

Parameters

width

number, a horizontal span of the Group in slot units (1 .. 6). Outside that raises.

<group>:setVerticalSpan(height)

Changes the vertical span of the group. A height of 0 creates a thin line; any other height setting forms a rectangle.

As with setHorizontalSpan(), the mk2's grid is used on every model.

Parameters

height

number, a vertical span of the Group in slot units (0 .. 6). Outside that raises.

<group>:print()

Prints all attributes of the Group object to the Logger output.

A group is a control

A group is a control of type "group": it lives in the same collection as everything else, shares the id space, and sits on a page. So it answers the Control readers as well as its own methods, and appears in preset.getControls() and controls.getAll() alongside the rest.

<group>:getName()

The same field as getLabel(), under the name the preset format and every other object use for it.

Returns

string, the group's label.

<group>:setName(name)

The same field as setLabel(). setLabel is what older presets are written against and keeps working; prefer setName in new code, because a walk over a mixed collection has to be able to ask every entry for its name.

Parameters

name

string, the new label. An empty string also hides the group.

<group>:isGroup()

The twin of <control>:isGroup(), so a walk over a mixed collection can ask every entry the same question.

Returns

boolean, always true.

Parameters

rect

table, any of x, y, width, height. Anything left out keeps the value it had.

<group>:repaint()

Schedules a repaint of the group.

What a group deliberately does not have is everything it cannot do: setPot(), the override functions and the Custom control callbacks are not on it, because no knob drives a group and a group sends nothing.

A group in a mixed collection comes back with the Group methods on it; controls.get(id) hands back the same group with the Control methods on it instead, so setSlot there is a control's. Use preset.getControl(id) or groups.get(id) when the group's own methods are wanted.

A group that follows a parameter

A group may name a MIDI parameter and show the overlay item that parameter's value selects: the item's label replaces the group's name, and where the item carries a colour, that replaces the group's colour.

That value is read only. A group declares no inputs so no pot can move it, and it never transmits - a minimum, a maximum, a default or an override on one would be fields that reach nothing, so every Value setter raises a group's value is read only rather than pretending. Reading is what it is for.

<group>:getValue([valueId])

Parameters

valueId

string, which value. Optional, defaults to 'value'; a group has only the one.

Returns

userdata, a ControlValue object, or nil when the group follows nothing.

<group>:getValues()

Returns

table, an array of ControlValue objects.

<group>:getValueIds()

Returns

table, an array of valueId strings.

Example

lua

-- What is this group following, if anything?
local group = preset.getGroup(433)   -- nil when the preset has no such group
local value = group and group:getValue()

if value then
    local message = value:getMessage()

    print(string.format("%s follows parameter %d on device %d",
        group:getName(),
        message:getParameterNumber(),
        message:getDeviceId()))
end

Try it yourself

🚀

Group module demo

<group>:update(changes)

Firmware 5.0 and later. The same reader as a control's update(): the members present change, the rest stay. The application thread only, as every preset edit is.

lua

groups.get(1):update { name = "FILTER", color = "F49500" }

Parameters

changes

table, the members to change, in the preset file's shape: name, color, bounds, variant, font, values.

<group>:toTable()

The group in the file's shape - { id, pageId, name, color, variant, bounds }, plus font where it is not the face a group is drawn in anyway, plus values where it follows a parameter. The color is the "RRGGBB" string the file uses, not the number setColor() takes.

A group's table carries no visible member - the format has none - so a hidden group copied into another preset with groups.create() arrives visible.

Returns

table, the group as the preset file would write it.

Overlays

The Overlays module provides functionality for managing preset overlays. An overlay is a list of MIDI values, with each entry containing a MIDI value, a text label, an optional colour, and optional bitmap data. Overlays provide options for List controls, can replace display values for Faders, and are what a Group follows when it is bound to a parameter.

Overlays can be read, created, changed and removed at runtime, and a control value can be pointed at a different overlay - or detached from overlays altogether - while the preset is running.

Functions

overlays.get(overlayId)

Retrieves a reference to an Overlay object (Lua userdata). The overlay id number can be found in the control properties panel in the Preset Editor. Raises an error when the preset has no overlay with that id, and when the id is outside 1 .. 255. preset.getOverlay(id) is the same lookup that answers nil instead, and <value>:getOverlay() answers the overlay a value is showing.

The global Overlay(id) is the same function under another name.

Parameters

overlayId

number, an overlay identifier (1 .. 255).

Returns

userdata, an object representing the overlay.

overlays.getAll()

Retrieves an array of Overlay object references (Lua userdata) used in the preset. The array is dense and ordered by overlay id, so #overlays.getAll() is the number of overlays the preset has, whatever ids they carry.

This is the same call as preset.getOverlays().

Returns

array, a list of references to all overlays in the preset.

overlays.each(callback)

Walks every overlay in the preset without building an array first. Returning false from the callback stops the walk; any other value - including nothing at all - carries on.

The callback is not protected: an error it raises comes out of overlays.each(). Do not create or remove overlays inside it either - that invalidates the walk.

Parameters

callback

function, called once per overlay with the Overlay object.

Returns

number, how many overlays were visited, counting the one that stopped the walk.

overlays.create(overlayId, overlayData)

Creates a new Overlay object and returns a reference (userdata) to it. The overlay ID must be unique; otherwise, Electra will log a conflict in the debug log and overwrite the existing overlay. Every control value that was using the replaced overlay is re-bound to the new one, so a List's range follows the list it is now showing. A fader keeps its own range.

Both arguments are needed: the overlay is emptied before the items are read, so overlays.create(5) wipes overlay 5 and then raises.

In this form the item's color is a number, 0x03A598. The table form below is the one that takes the "03A598" string the preset file uses.

Parameters

overlayId

number, an identifier of the overlay to be created. An integer; 1.0 is one, 1.5 raises.

overlayData

table, an array of overlay items. Each item needs value and label, and may carry color and bitmap.

Returns

userdata, an object representing the overlay.

overlays.remove(overlayId)

Removes an overlay from the preset. Every control value using it is detached first and repainted, so nothing is left pointing at an overlay that is gone.

Detaching leaves a List's range where the overlay put it - there is no record of what it was before the overlay was attached - so a preset that wants another range on it sets one with <value>:setRange() or <value>:setMax(). A fader's range was never changed by the overlay, so it needs nothing.

A detached value still reports the removed overlay from getOverlayId(); getOverlay() is the one that answers nil. An Overlay object the script kept must not be used after this.

Parameters

overlayId

number, an identifier of the overlay to be removed.

Returns

boolean, true when an overlay was removed, false when there was none.

The Overlay Lua table must be structured as shown below. value is the MIDI value, label is a text label of at most 20 characters associated with the MIDI value, and color is an optional 24-bit RGB colour.

lua

overlayData = {
    { value = 1, label = "Room" },
    { value = 2, label = "Hall" },
    { value = 3, label = "Plate" },
    { value = 4, label = "Spring", color = 0x03A598 }
}

A colour is optional, and black is not "no colour"

An item without a color key carries no colour at all, and a Group following the overlay keeps its own colour on that item. color = 0x000000 is black, which is a different thing. The same applies to label: an item that carries a colour and an empty label recolours a Group and blanks its name.

Only a List takes its range from the overlay

A List's value is an index into its list, so binding an overlay to a List sets its range to 0 .. the last index of the list - and so does every change to the list afterwards. A Fader, a knob or a Pad is left with the range it has: a 0 .. 127 fader given a four-item overlay for its labels stays 0 .. 127 and prints the label of whichever item its value lands on. There is nothing to put back with <value>:setRange().

Firmware before this rule reset every value's maximum, so a preset written for it may still call setRange() after setOverlay() on a fader; that call is harmless now.

overlays.create(overlay)

Firmware 5.0 and later. The table form of overlays.create(id, items): the overlay object as the file has it, so an overlay read from one preset with toTable() goes into another as it is.

It goes through the reader the preset file goes through, so here an item's color is the "03A598" string, not a number - a number there is read as black. It may only be called on the application thread.

lua

overlays.create {
    id = 3,
    items = {
        { value = 0, label = "SAW", color = "F49500" },
        { value = 1, label = "SQUARE" }
    }
}

Parameters

overlay

table, the overlay as the preset file has it: id (1 .. 255) and items, whose color is a hex string.

Returns

userdata, the new Overlay object.

Overlay

An Overlay object stores the data and functions used to manage an overlay.

Item indices are zero based

An index into an overlay is a discrete control's display value, so <overlay>:getItem(n) and <value>:setValue(n) name the same item. The first item is index 0 and the last is <overlay>:getNumItems() - 1.

boolean, true when the overlay holds no items.

<overlay>:getItems()

index

number, a zero based item index.

Returns

string, the label at that index, or nil when there is no such item.

Changing an overlay

Every function below repaints the controls using the overlay and puts their ranges back in step with it, so a preset never has to ask for that itself.

An item table is { value, label, color, bitmap }. value defaults to 0 and label to the empty string, color is a number and is left unset when the key is absent, and bitmap is the raw image data - 48 by 18 pixels, one bit per pixel, six bytes a row, 108 bytes in all - that the Preset Editor writes. A shorter string is read past its end, so do not compose one by hand in Lua.

<overlay>:addItem(item)

Appends one item to the end of the overlay. Every List bound to the overlay gains an index: its maximum follows the new length. A fader using the overlay for labels keeps its range.

Parameters

item

table, an item with value, label and optionally color and bitmap.

Returns

number, the zero based index the item landed at.

<overlay>:setItem(index, item)

Replaces one item in place. The list keeps its length, so a value bound to the overlay keeps its range. The whole item is replaced: a table without a color key leaves the item with no colour.

Parameters

index

number, a zero based item index.

item

table, the item to put there.

Returns

boolean, true when the item was replaced, false when there is no such index.

<overlay>:removeItem(index)

Removes one item. Everything after it moves down one index, and the range of every value using the overlay follows.

Parameters

index

number, a zero based item index.

Returns

boolean, true when an item was removed, false when there is no such index.

<overlay>:clear()

Removes every item, leaving the overlay in the preset but empty. Use it before rebuilding a list from scratch, so the values using it keep pointing at the same overlay.

<overlay>:print()

Prints all attributes of the Overlay object to the Logger output.

Attaching an overlay to a control

An overlay is attached to a value, not to a control, because a control may carry several. The three functions live on the ControlValue object and are documented with it.


`<value>:setOverlay(overlay)`	show this overlay; takes an Overlay object or an id
`<value>:getOverlay()`	the Overlay object it is showing, or nil
`<value>:clearOverlay()`	detach it, and show raw values again

<value>:setOverlayId() and <value>:getOverlayId() are the older spelling and are unchanged: they work in ids rather than objects.

Examples

lua

-- Define reverb types with associated values and labels
local listReverbTypes = {
    { value = 1, label = "Room" },
    { value = 2, label = "Hall" },
    { value = 3, label = "Plate" },
    { value = 4, label = "Spring" }
}

-- Create a new overlay and show it on the list control with id 4
function onReady()
    local overlay = overlays.create(2, listReverbTypes)

    preset.getControl(4):getValue("value"):setOverlay(overlay)
end

Building a list from what a synth reports, and pointing a control at it. The function is an ordinary one - call it from wherever the names were parsed, a SysEx handler most often:

lua

function setPatchNames(names)
    local overlay = overlays.get(7)

    overlay:clear()

    for i, name in ipairs(names) do
        overlay:addItem({ value = i - 1, label = name })
    end

    -- The control's range has already followed the new list.
    preset.getControl(21):getValue("value"):setOverlay(overlay)
end

Reading the label a raw MIDI value stands for:

lua

function onWaveform(value)
    local item = overlays.get(3):getItemByValue(value)

    print(item and item.label or string.format("unknown (%d)", value))
end

Switching between two lists, and going back to plain numbers:

lua

local value = preset.getControl(5):getValue("value")

value:setOverlay(overlays.get(11))   -- by object
value:setOverlay(12)                 -- or by id

value:clearOverlay()                 -- show the number again
value:setRange(0, 127, 64)           -- and put the range back

Keeping a group's label in step with a list, which is what a group bound to a parameter does on its own - here done from Lua for a group that is not bound:

lua

-- named in the value's "function" attribute in the preset file
function onWaveformChanged(valueObject, value)
    local overlay = valueObject:getOverlay()
    local item = overlay and overlay:getItem(math.floor(value))

    if item then
        groups.get(200):setLabel(item.label)
    end
end

Try it yourself

🚀

Overlays module demo

<overlay>:toTable()

Firmware 5.0 and later. { id, items = { { value, label, color }, ... } }, where color is the "RRGGBB" string the file uses and is present only on an item that carries one. A bitmap cannot be written back and is left out.

This is the shape the table form of overlays.create() takes, so an overlay goes back in as it came out:

lua

local copy = overlays.get(2):toTable()

copy.id = 8
overlays.create(copy)        -- the same list, under a new id

Returns

table, the overlay as the preset file would write it.

Devices

A Device is an instrument the preset knows about: a name, a MIDI port, a MIDI channel, the interfaces it is reached on, and - optionally - the SysEx templates used to ask it for a patch and to recognise its answer. Every control value that sends MIDI names a device by its id, and the parameter map is keyed by that id too.

A device id runs from 1 to 32. Zero is not a device: a preset value written with deviceId 0, or with no deviceId at all, sends nothing and is not stored under a device.

The devices module reaches the devices of the preset the script belongs to. A pinned preset running in the background reads its own devices, not the ones of the preset on the screen.

Functions

devices.get(deviceId)

Retrieves a reference to a Device object (Lua userdata). A Device represents a MIDI device that sends and receives messages with the controller.

Raises when the preset declares no device with that id, and when the id is outside 1 .. 32. Use preset.getDevice(deviceId) when you want nil for a device that is not there.

Device(deviceId) is the same call written as a constructor.

Parameters

deviceId

number, a numeric identifier of the device (1 .. 32).

Returns

userdata, an object representing the device.

devices.getByPortChannel(port, channel)

Retrieves a reference to a Device object (Lua userdata) using the port and MIDI channel. A Device represents a MIDI device that sends and receives messages with the controller.

Raises when no device of the preset sits on that port and channel.

Parameters

port

enum, a numeric identifier of the port [PORT_1, PORT_2, PORT_CTRL].

channel

number, a numeric identifier of the MIDI channel (1 .. 16).

Returns

userdata, an object representing the device.

devices.getAll()

Retrieves an array of Device object references (Lua userdata) used in the preset. The array is dense and ordered by device id, so #devices.getAll() is the number of devices the preset has, whatever ids they carry.

This is the same call as preset.getDevices(). A Preset object may be passed as the first argument - devices.getAll(Preset(4)) - to read another slot's devices.

Returns

array, a list of references to all devices in the preset.

devices.each(callback)

Walks every device in the preset without building an array first. Returning false from the callback stops the walk; returning nothing carries on.

Parameters

callback

function, called once per device with the Device object.

Returns

number, how many devices were visited.

devices.create(deviceId, name, port, channel [, interfaces])

Creates a new Device object and returns a reference to it.

An existing device with the same id is replaced without a warning, and its patch requests, responses and messages go with it. The rate of a device made this way is 0.

Interface names are the ones the preset file uses: "midiIo", "midiUsbDev", "midiUsbHost", and "midiAll" for the lot. An unknown name raises.

lua

local synth = devices.create(3, "Prophet", PORT_1, 4, { "midiIo", "midiUsbHost" })

Parameters

deviceId

number, a numeric identifier of device to be created (1 .. 32).

name

string, a name to be assigned to the device (at most 20 characters).

port

enum, a numeric identifier of the port [PORT_1, PORT_2, PORT_CTRL].

channel

number, a numeric identifier of the MIDI channel (1 .. 16).

interfaces

string or table of strings, the interfaces the device is reached on. Optional; all of them when it is left out.

Returns

userdata, an object representing the device.

devices.create(device)

Firmware 5.0 and later. The table form: a whole device, its patch requests, responses and messages included, in one call. port counts from one here, as it does in the file; the object's getPort() answers from zero, as it always has. An existing device with the same id is replaced.

id and name are required; everything else takes the same default the file reader gives it.

lua

local dx = devices.create {
    id = 2, name = "DX7", port = 1, channel = 1,
    patch = { { request = { "F0", "43", "20", "00", "F7" },
               responses = { { id = 1,
                               header = { "F0", "43", "00", "00", "01", "1B" },
                               rules = { { type = "sysex", parameterNumber = 1, byte = 0 } } } } } }
}

Parameters

device

table, the device as the preset file has it: id, name, port, channel, rate, interfaces, runningStatus, patch, messages.

Returns

userdata, an object representing the device.

devices.remove(deviceId)

Takes the device out of the preset. Refused while a control value still addresses it; the error says how many do.

Device objects a script is still holding do not survive the removal. Drop them and ask again rather than calling anything on them.

Parameters

deviceId

number, the id of the device to remove.

Returns

boolean, true when a device was removed, false when the preset had no such device.

Example

lua

-- What this preset can talk to, and how.

function preset.onReady()
    devices.each(function (device)
        print(string.format("%d %s port %d channel %d [%s]",
            device:getId(),
            device:getName(),
            device:getPort(),
            device:getChannel(),
            table.concat(device:getInterfaces(), " ")))
    end)
end

Device

A Device object is used to manage the Device settings.

Every function below is a method: call it with a colon - device:getName(), not device.getName(). A dot call passes no device and raises.

Functions

<device>:getId()

Retrieves an identifier of the Device. The identifier is assigned to the control in the preset JSON or created with the devices.create() function.

Returns

number, a numeric identifier of the device (1 .. 32).

<device>:setName(name)

Assigns a new name to the Device.

Parameters

name

string, a name to be assigned to the Device. Longer names are cut to 20 characters.

<device>:getName()

Retrieves the name currently assigned to the Device.

Returns

string, a name currently assigned to the Device.

<device>:setPort(port)

Assigns a new MIDI port to the Device. A port outside 0 .. 2 raises.

The preset's lookup of "which device is this message for" is rebuilt by the call, so the new port takes effect for incoming messages as well.

Parameters

port

enum, a numeric identifier of the port [PORT_1, PORT_2, PORT_CTRL].

<device>:getPort()

Retrieves the currently assigned MIDI port. Ports count from zero here - PORT_1 is 0 - while the preset file and the table form of devices.create() count them from one.

table, an array of interface names.

<device>:hasInterface(name)

Whether one interface is in the device's set. An unknown name raises.

Parameters

name

string, an interface name.

Returns

boolean, true when the device is wired to that interface.

<device>:setRunningStatus(enabled)

Whether the preset's own messages to this device may leave the DIN sockets without repeating a status byte the wire already carries. getRunningStatus() reads it back.

A script's device:send*() is not one of those messages: it always sends full status bytes.

Parameters

enabled

boolean, true to allow running status. A non-boolean raises.

<device>:getRunningStatus()

Reads back what setRunningStatus() set.

Returns

boolean, whether running status is allowed for the device.

<device>:isValid()

Says whether the object refers to a device the preset actually declares.

Returns

boolean, true when the device exists in the preset.

<device>:print()

Writes the device's settings to the logger.

Sending to a device

A device already knows its interfaces, its port and its channel - that is most of what a device is. These send with all three filled in, so a preset addressing an instrument does not take them back off it on every call, and moving an instrument to another port means editing the device rather than every call site.

Each is the midi.* function of the same name with the address left off. Unlike the control values the preset sends, the arguments are not range checked: a note number of 300 or a value of -1 goes into the message as whatever the low bits of it are. Optional boolean flags must be real booleans; anything else counts as false.

<device>:sendControlChange(controllerNumber, value)

Sends a Control Change to the device.

Parameters

controllerNumber

number, the controller number (0 .. 127).

value

number, the value (0 .. 127).

<device>:sendControlChange14Bit(controllerNumber, value [, lsbFirst])

Sends a 14-bit Control Change to the device, as two messages.

Parameters

controllerNumber

number, the MSB controller number (0 .. 31); the LSB goes out on controllerNumber + 32.

value

number, the value (0 .. 16383).

lsbFirst

boolean, optional. False by default: the MSB goes first.

<device>:sendProgramChange(programNumber)

parameterNumber

number, the NRPN parameter number (0 .. 16383).

value

number, the value (0 .. 16383).

lsbFirst

boolean, optional. False by default.

resetRpn

boolean, optional. False by default; true appends the RPN null message.

<device>:sendRpn(parameterNumber, value)

Sends an RPN to the device.

Parameters

parameterNumber

number, the RPN parameter number (0 .. 16383).

value

number, the value (0 .. 16383).

<device>:sendSysex(data)

Sends a SysEx message to the device.

A SysexBlock goes exactly as it stands, framing included - that is what midi.onSysex() and patch.onResponse() hand over. A string or an array of numbers is the body: the leading 0xF0 and the trailing 0xF7 are added, so do not put them in. Anything else raises.

Parameters

data

userdata, string or table: a SysexBlock, or the message body as a string or an array of bytes.

lua

local synth = devices.get(1)

synth:sendProgramChange(10)
synth:sendControlChange(74, 64)
synth:sendSysex({ 0x00, 0x20, 0x29, 0x02 })

The notes held on a device

The controller keeps track of which notes are held down on every MIDI input, all the time, whether or not a preset asked - so a script asking which keys are down is told about the ones pressed before it asked. A device's notes are the ones coming in from it: on one of its interfaces, on its port and its channel - the same messages the preset hands the device's parameters.

A note is held from its Note On to its Note Off, and a Note On with velocity 0 is a Note Off. All Sound Off (CC 120), All Notes Off (CC 123) and the mode messages (CC 124 to 127) let go of every note on their channel, and a System Reset of every note on its input. The sustain pedal lets go of nothing: these are the keys that are down.

Every note is a table:


`note`	the note number, 0 to 127
`velocity`	the velocity it was pressed with
`time`	when it was pressed, in milliseconds on the clock `schedule.now()` reads

The same key held on two of the device's interfaces at once - arriving over USB and over DIN - is one note, with the velocity of the later press, until it has been let go on both.

<device>:getActiveNotes()

The notes held down on the device right now, one table per note, in the shape above. Empty when nothing is held.

Returns

array, the notes held on the device, lowest first.

<device>:isNoteActive(noteNumber)

Whether one note is held down on the device.

Parameters

noteNumber

number, the note number (0 .. 127).

Returns

boolean, true while the note is held.

<device>:onNotesChanged(callback)

Runs a function every time the notes held on the device change. It is handed the device, its notes - as getActiveNotes() gives them - and the change:


`type`	`"noteOn"`, `"noteOff"`, `"allNotesOff"` or `"resync"`
`note`	the note that went down or up; absent for `allNotesOff` and `resync`
`velocity`	the velocity it was pressed with, or the Note Off's
`channel`	the MIDI channel it came in on
`interface`, `port`	where it came in; the interface is a number, as `USB_HOST` and the other interface constants are
`time`	when, in milliseconds on the clock `schedule.now()` reads

A "resync" change carries type and nothing else.

It is called once per change, in the order the changes happened, and each time with the notes as they stood right after that change. So a drum pad whose Note Off follows its Note On by a millisecond is still seen going down, with the note held, and then coming up - however late the function gets to run.

A "resync" is what the function is told when the controller was too busy to hand the changes over one by one - more than 128 of them waited. Those changes are lost, and the device's notes are brought up to date in one step.

There is one function per device: setting another replaces it, and nil removes it. The function runs on the controller's application thread, a few milliseconds after the note reaches the input. It belongs to the preset, and runs while the preset does: while it is on the screen, and while it is pinned and another preset is showing. A preset that is not pinned stops hearing about notes when you leave it, and hears about them again when you come back.

Parameters

callback

function(device, notes, change), called on every change to the notes held on the device. nil removes it.

To wait for a particular combination of notes - a chord, two pads hit together, a key hit hard - schedule.whenNotes() does the matching for you.

Example

lua

local keys = devices.get(1)

-- Show how many keys are down, and which is the lowest.
keys:onNotesChanged(function(device, notes, change)
    if #notes == 0 then
        info.setText("--")
    else
        info.setText(#notes .. " held, lowest " .. notes[1].note)
    end

    -- A fifth, and nothing else, struck hard: the synth's lead patch.
    if change.type == "noteOn" and change.velocity > 110 and #notes == 2
       and notes[2].note - notes[1].note == 7 then
        device:sendProgramChange(12)
    end
end)

The patch templates a device declares

A device's patch section in the preset JSON says what to ask an instrument for and how to recognise the answer. These read it back, so a preset can see what it is about to ask for and what a response it was handed matched on.

<device>:hasPatchRequests()

Whether asking this device for its patch would send anything. A device whose patch section declares responses but no request answers false.

Returns

boolean, true when the device declares at least one patch request.

<device>:getPatchRequests()

The request templates as compiled bytes, in the order the preset declares them. Empty for a device with no patch section. getRequests() answers the same templates in element form.

Returns

array, one array of bytes per declared request.

<device>:getResponses()

The responses the device knows how to recognise. Each is { id, header, template, rules, numRules } - the id is the responseIdpatch.onResponse() is given, header the compiled run of bytes that had to match for it to be called, template that same header in element form, and rules the array of rule tables.

Returns

array, one table per declared response.

<device>:getResponse(responseId)

One response, in the same shape getResponses() uses.

Parameters

responseId

number, the response id.

Returns

table, the response, or nil when the device declares no such response.

<device>:requestPatches()

Sends this device's patch requests and runs patch.onRequest() for it - the one-device form of patch.requestAll(). patch.request(device) is the same call reached from the module.

Example

lua

-- This needs to reflect the preset device settings
local AccessVirusDeviceId = 2


function preset.onReady()
    -- Display info about the device
    local device = devices.get(AccessVirusDeviceId)
    print("device port: " .. device:getPort())
    print("device channel: " .. device:getChannel())
end


-- A function a Control value calls. setChannel raises outside 1 .. 16, so the
-- control's value has to be in that range - a list or a fader with min 1 and
-- max 16.
function setChannel(valueObject, value)
    local device = devices.get(AccessVirusDeviceId)
    device:setChannel(value)
end

Definitions: requests, responses, rules, messages

Firmware 5.0 and later. A device holds three kinds of definition beside its common fields: the requests it sends when a patch is asked for, the responses it recognises - each an id, a header and the rules that take parameter values out of the bytes after the header - and the messages its controls send through, by id. All three are readable and editable in place, as tables in the preset file's shape.

A template is the element array the file carries: numbers are decimal bytes, strings are hex bytes, and objects are the placeholders - { type = "value", rules = { ... } }, { type = "parameter", rules = { ... } }, { type = "checksum", algorithm = "roland", start = 5, length = 10 }, { type = "function", name = "myByte" } and { type = "any" }, which matches any single byte on the way in and makes a template unsendable. Framing is added on the way in and stripped on the way out, so a request { "F0", "43", "20", "00", "F7" } reads back as { 67, 32, 0 }.

A rule is { type, parameterNumber, byte, parameterBitPosition, byteBitPosition, bitWidth }, where byte counts from the first byte after the header and bitWidth defaults to 7. A response header is rendered before it is matched and may be at most 64 bytes.

lua

-- A TX7 voice dump: 155 data bytes after a six-byte header, one rule each.
local dx = devices.get(2)
local rules = {}

for i = 0, 144 do
    rules[#rules + 1] = { type = "sysex", parameterNumber = i + 1, byte = i }
end

dx:clearResponses()
dx:addResponse(1, { "F0", "43", "00", "00", "01", "1B" }, rules)
dx:clearRequests()
dx:addRequest({ "F0", "43", "20", "00", "F7" })

Once the device carries its request and its rules, the firmware does the rest on every reply: header match, values into the parameter map, controls repainted. No script is needed in the preset that owns the device unless a template needs a function byte or a checksum the firmware does not know.

<device>:getRequests()

The patch requests, decompiled. getPatchRequests() still answers the compiled bytes.

Returns

table, an array of templates, in element form.

<device>:addRequest(template)

Appends a request.

Parameters

template

table, a template element array.

Returns

number, the number of requests the device now has, which is the index of the new one.

<device>:setRequest(index, template)

Replaces a request. An index out of range raises.

Parameters

index

number, which request, counted from one.

template

table, a template element array.

<device>:removeRequest(index)

Removes a request. An index out of range raises.

Parameters

index

number, which request, counted from one.

Returns

boolean, true.

<device>:clearRequests()

Removes every request.

<device>:addResponse(responseId, header [, rules])

Adds a response. A duplicate id is refused - two responses with one id could not be told apart, on the wire or by a script - so clear or remove the old one first.

Parameters

responseId

number, the id the response answers to (0 .. 255), and what patch.onResponse() is handed.

header

table, a template element array; matched against the start of a message. At most 64 bytes once rendered.

rules

Parameters

messageId

number, which message.

Returns

table, the template in element form, or nil when the device has no such message.

<device>:setMessage(messageId, template [, direction])

Creates or replaces a message in place, so a control value that sends through it keeps doing so with the new bytes. direction says whether incoming SysEx is matched against the template - see direction. Left out, the message keeps the direction it had; a new one is out.

Parameters

messageId

number, the id a control value names (1 .. 65535).

template

table, a template element array.

direction

string, optional: 'out', 'both' or 'in'. Anything else raises.

<device>:getMessageDirection(messageId)

Which way a message works.

lua

local synth = devices.get(1)

synth:setMessage(1, { "43", "10", { type = "parameter" }, { type = "value" } }, "both")
print(synth:getMessageDirection(1))   -- both

Parameters

messageId

number, which message.

Returns

string, 'out', 'both' or 'in'; nil when the device has no such message.

<device>:removeMessage(messageId)

Removes a message. Refused - it raises - while a control value still sends through it.

Parameters

messageId

number, which message.

Returns

boolean, true when a message was removed, false when there was none.

<device>:update(changes)

Changes the members present: name, port (from one, as in the file), channel, rate, runningStatus, interfaces, patch and messages. patch given replaces every request and response; messages given sets each message it names and leaves the others.

The whole table is read and checked before anything is written, so a call that raises - a channel that is not a number, a direction that is not "in", "out" or "both" - changes nothing.

Parameters

changes

table, the members to change, in the preset file's shape.

<device>:toTable()

The whole device: common fields, patch with its requests and responses, messages. port counts from one, as the file has it, so the table can be handed straight back to devices.create().

Returns

table, the device as the preset file would write it.

Parameter Map

The Parameter Map is the central part of the Electra Controller firmware. It keeps track of all parameter values across connected devices. Whenever a MIDI message is received, a knob is turned, or a value is changed by touch, the Parameter Map records the change, updates everything that depends on it, and sends out new MIDI messages.

An entry is addressed by three numbers - the device id, the parameter type and the parameter number - and holds one 14-bit MIDI value.

Argument	Range
`deviceId`	1 .. 32
`type`	0 .. 17: the `PT_*` constants, plus 17 for a macro parameter, which has no constant
`parameterNumber`	0 .. 16383
`midiValue`	0 .. 16383

Anything outside those ranges raises, and so does a non-integer.

PT_VIRTUAL 0, PT_CC7 1, PT_CC14 2, PT_NRPN 3, PT_RPN 4, PT_NOTE 5, PT_PROGRAM 6, PT_SYSEX 7, PT_START 8, PT_STOP 9, PT_TUNE 10, PT_ATPOLY 11, PT_ATCHANNEL 12, PT_PITCHBEND 13, PT_SPP 14, PT_RELCC 15, PT_NONE 16.

An entry has to exist before it can be set

The map holds an entry for each parameter some control value in the preset addresses, and for each one parameterMap.setFunction() was called for. Nothing else creates one.

set(), apply(), updateValue() and modulate() on an address with no entry do nothing at all - no error, no message on the wire. A script that drives parameters no control displays has to call parameterMap.setFunction() for them first, which creates the entry as a side effect.

Each preset has its own parameter map, and these functions always mean the map of the preset the script belongs to - a pinned preset in the background reads and writes its own.

Functions

number, an identifier of the device (1 .. 32).

type

number, an identifier of the Message parameter type (0 .. 17).

parameterNumber

number, a numeric identifier of the Message parameter (0 .. 16383).

modulationValue

float, a modulation signal to be applied (-1.0 .. 1.0). Not range checked.

depth

number, a depth of the modulation signal (0 .. 127). 127 lets a modulationValue of 1.0 sweep the whole range. Not range checked.

parameterMap.updateValue(deviceId, type, parameterNumber, midiValue)

Updates the MIDI value of a specific Parameter Map entry. Unlike the set() function, no MIDI messages are sent and no Lua callbacks are invoked. The controls showing the parameter are still brought up to date.

This is how a script follows an instrument that reports its own changes: store what the instrument says without sending it straight back.

Parameters

deviceId

number, an identifier of the device (1 .. 32).

type

number, an identifier of the Message parameter type (0 .. 17).

parameterNumber

number, a numeric identifier of the Message parameter (0 .. 16383).

midiValue

number, the MIDI value to store (0 .. 16383).

parameterMap.get(deviceId, type, parameterNumber)

Retrieves the current MIDI value stored in the Parameter Map entry. This function is equivalent to calling message:getValue() on a Message object with the corresponding attributes.

MIDI_VALUE_DO_NOT_SEND is 16537, which is not a MIDI value: it is what an entry holds before anything has been set, and what this answers for an address the map does not know. Compare against the constant rather than the number.

Parameters

deviceId

number, an identifier of the device (1 .. 32).

type

number, an identifier of the Message parameter type (0 .. 17).

parameterNumber

number, a numeric identifier of the Message parameter (0 .. 16383).

Returns

number, the current MIDI value (0 .. 16383), or MIDI_VALUE_DO_NOT_SEND when the parameter is unset or has no entry.

parameterMap.getValues(deviceId, type, parameterNumber)

Retrieves a list of all Value objects linked to the Parameter Map entry. These are the Value objects that will be updated when the MIDI value changes.

Raises when there is no entry at that address, and when the entry has no control values linked to it - which is the case for every parameter created by parameterMap.setFunction().

Parameters

deviceId

number, an identifier of the device (1 .. 32).

type

number, an identifier of the Message parameter type (0 .. 17).

parameterNumber

number, a numeric identifier of the Message parameter (0 .. 16383).

Returns

array, a list of references to userdata Value objects associated with the ParameterMap entry.

parameterMap.map(deviceId, type, parameterNumber)

Binds an address once and hands back a function that reads it when called with no argument and writes it when called with a number - get() and set() without the three arguments each time.

All three arguments are required; the address is not checked until the returned function is called.

lua

local cutoff = parameterMap.map(1, PT_CC7, 74)

cutoff(64)          -- the same as parameterMap.set(1, PT_CC7, 74, 64)
print(cutoff())     -- 64

Parameters

deviceId

number, an identifier of the device (1 .. 32).

type

number, an identifier of the Message parameter type (0 .. 17).

parameterNumber

number, a numeric identifier of the Message parameter (0 .. 16383).

Returns

function, a getter and setter for that one parameter.

parameterMap.onChange(valueObjects, origin, midiValue)

Called whenever a value in the Parameter Map changes, with the Value objects linked to the entry - the ones that will be updated by the change.

Since firmware 5.0.0 it also runs for a parameter no control displays: a value set from a script or arriving over MIDI for an entry nothing is drawn for. valueObjects is then an empty table, never nil, so a loop over it simply does nothing; index it directly only after checking #valueObjects.

origin says where the change came from:


`INTERNAL` (0)	the controller itself - a preset load, a snapshot, a default value
`MIDI` (1)	a MIDI message that arrived
`LUA` (2)	a script
`MODS` (3)	a modulation pass. Never delivered here: modulation does not run this callback
`FILE` (4)	a file - a snapshot or a capture being applied
`REMOTE` (5)	a remote control surface mapped to the parameter
`LINK` (6)	a second screen

All seven have constants. MODS, FILE, REMOTE and LINK are newer than the first three: before them, those four origins arrived as plain numbers with nothing to compare against. The numbers have not changed, so a script that tested origin == 4 still works.

It is one callback for every parameter of every device. A preset watching a few parameters is better served by parameterMap.setFunction(), which costs nothing for the parameters it is not bound to.

A relative control calls it once for every step it sends, and midiValue is the value that went out - in the default signBit mode 65 for a step up and 1 for a step down. Before firmware 5.0.0 relative steps did not reach it.

The callback runs in the state of the preset that owns the map, on the application thread.

Parameters

valueObjects

array, a list of references to userdata Value objects associated with the ParameterMap entry. Empty when no control shows the parameter.

origin

number, a numeric identifier of the change origin - see the table below.

midiValue

number, the current MIDI value of the ParameterMap entry (0 .. 16383).

Example

lua

-- Display info about the change in the ParameterMap

function parameterMap.onChange(valueObjects, origin, midiValue)
    print(string.format("a new midiValue %d from origin %d",
        midiValue, origin))

    for i, valueObject in ipairs(valueObjects) do
        local control = valueObject:getControl()
        print(string.format("affects control value %s.%s",
            control:getName(), valueObject:getId()))
    end
end

parameterMap.keep()

Saves the current state of the Parameter Map so it can be recalled later. The data stays safely stored in the controller even when it is powered off.

The file is named after the preset's project id, so every preset of a project shares one saved map.

parameterMap.recall()

Recalls state that was previously saved with parameterMap.keep() function call. Returns nothing, whether or not there was anything to recall.

parameterMap.forget()

Removes and forgets state that was previously saved with parameterMap.keep() function call.

parameterMap.print()

Prints all attributes of the ParameterMap entries to the Logger output.

parameterMap.setFunction(deviceId, type, parameterNumber, functionName)

Binds a named function to a parameter, so it runs whenever that parameter changes. A value's function in the preset JSON hangs off a control, so it runs only where a control displays the parameter; this is the same binding addressed by parameter, which is the only way to reach the ones nothing is drawn for - most of the map in a script-driven preset.

The entry is created if it does not exist yet, which is also what makes parameterMap.set() work on that address afterwards.

The function is handed the MIDI value and the address it arrived at:

lua

function onCutoff(midiValue, origin, deviceId, type, parameterNumber)

All scalars, so nothing is allocated per call, and the last three let one function serve several parameters. Like a value's function it does not run on the first pass after a preset loads. A name rather than a closure, because that is what the preset format already binds and what the debugger can put in a stack trace.

A preset may name at most 255 Lua functions in its templates, values and bindings together. Past that the name is ignored and a line is written to the log.

Parameters

deviceId

number, an identifier of the device (1 .. 32).

Transactions nest. An error inside one closes it before it is re-raised, so a script failing halfway through does not leave the map held down.

Parameters

function, the work to do with the map held still. It is called with no arguments.

Example

lua

-- React to a parameter nothing on the screen shows.
--
-- setFunction creates the map entry, so parameterMap.set() and
-- parameterMap.get() work on this address afterwards.

function onCutoff(midiValue, origin, deviceId, type, parameterNumber)
    if origin ~= LUA then
        print("cutoff from the synth: " .. midiValue)
    end
end

function preset.onReady()
    parameterMap.setFunction(1, PT_CC7, 74, "onCutoff")
end

Patch

This module helps you request patch dumps and process SysEx MIDI messages that contain patch data. The patch.onResponse() function is called automatically when a SysEx message matches the response header you defined in the preset JSON.

To use patch callbacks, you must first create a Patch object in the Device object defined in your preset JSON.

The example below shows the simplest Patch setup. Here, patch.onResponse() will be triggered whenever a SysEx message begins with the bytes 67, 0, 0, 1, 27.

JSON

"patch":[
   {
      "responses":[
         {
            "id":1,
            "header":[
               67,
               0,
               0,
               1,
               27
            ]
         }
      ]
   }
]

A response that also declares rules needs no script at all: the firmware puts the values the rules name straight into the parameter map.

Functions

patch.onRequest(device)

A callback used to send a patch request to a specific device. The function is called once for each device of the preset when patches are requested - the [PATCH REQUEST] button is pressed, the requestPatch command is run, or patch.requestAll() is called - and once for the one device when patch.request() or device:requestPatches() is called. It is called for a device after the requests defined in that device's patch JSON have been queued for sending, and whether or not the device defines any.

It always runs in the script of the preset on the screen, on the application thread.

Parameters

device

data table, a device description data structure (see below).

patch.onResponse(device, responseId, sysexBlock)

A callback to handle incoming SysEx message that matched the Patch response definition.

It runs on the application thread, in the script of the preset that owns the device, so a pinned preset in the background hears its own responses. Only the first response whose header matches is used, and its rules have already been applied to the parameter map by the time the callback runs: parameterMap.get() inside it reads the values the dump carried, however long the dump. A message that also has midi.onSysex() or midi.onMessage() listeners reaches patch.onResponse() first.

The SysexBlock is valid only while the callback runs. Take what you need out of it - getTable(), peek(), getBytes() - rather than storing the block.

Parameters

device

data table, a device description data structure (see below).

responseId

number, an identifier of the response, as defined in the preset JSON.

sysexBlock

userdata, a reference to a SysexBlock object containing the received and matched SysEx message.

patch.requestAll()

Sends the patch requests of every device of the preset on the screen, and runs patch.onRequest() for each of them.

patch.request(device)

The requests one device declares, rather than every device's. That is what an instrument that was just switched to another program needs, and it costs nothing on the rest of the rig - patch.requestAll() is this in a loop.

device:requestPatches() is the same call reached from the object.

Parameters

device

a Device object, a device id, or the table patch.onRequest() was handed.

Example

A preset that asks a TX7 for its edit buffer and reads the answer. The device declares the request and the response header in its JSON; the script does the asking and the parsing.

lua

local TX7 = 1
local VOICE_BYTES = 155

-- The dump is F0 43 0n 00 01 1B <155 bytes> <checksum> F7, and the device's
-- response header covers the first six bytes - so the voice data starts at
-- byte 7, counting from one as peek() and getTable() do.
local DATA_START = 7

function preset.onReady()
    -- Not in the main chunk: the callbacks below are defined by the time
    -- onReady runs, and the map is ready to take values.
    patch.request(TX7)
end

function patch.onRequest(device)
    if device.id == TX7 then
        print("asking " .. device:getName() .. " on channel " .. device.channel)
    end
end

function patch.onResponse(device, responseId, sysexBlock)
    if responseId ~= 1 then
        return
    end

    if sysexBlock:getLength() < (DATA_START + VOICE_BYTES) then
        print("short dump: " .. sysexBlock:getLength() .. " bytes")
        return
    end

    local data = sysexBlock:getTable(DATA_START, VOICE_BYTES)

    -- One change on the screen and nothing on the wire, however many
    -- parameters move. Only parameters a control of this preset addresses
    -- have an entry, so the rest are quietly skipped.
    parameterMap.transaction(function ()
        for i = 1, #data do
            parameterMap.set(device.id, PT_SYSEX, i, data[i])
        end
    end)

    info.setText("voice loaded")
end

Device data table

lua

device = {
  id = 1,                              -- a device Id
  port = 0,                            -- a numeric port identifier, from zero
  channel = 1,                         -- a channel number
  interfaces = { "midiIo", "midiUsbDev", "midiUsbHost" },
}

Every Device method can be called on it as well: device:getName(), device:sendProgramChange(4).

The runtime, by hand

Firmware 5.0 and later. What the firmware does to a SysEx message on its own - match a header, apply rules, fill a template - reachable from a script, for a message that came some other way: from a file, on a port the device is not wired to.

patch.match(device, sysexBlock)

Which of the device's responses the message starts with, by its header. Nothing is applied.

Parameters

device

userdata, a Device object.

sysexBlock

userdata, a SysexBlock.

Returns

number, the id of the response the message is, or nil.

patch.apply(device, responseId, sysexBlock)

Runs the response's rules on the message, into the device's parameter map - what the firmware does on a match. patch.onResponse() is not called; the caller is already in Lua.

Parameters

device

userdata, a Device object.

responseId

number, which of its responses. An unknown id raises.

sysexBlock

userdata, a SysexBlock.

Returns

number, how many rules were applied.

patch.extract(template, sysexBlock)

A template matched against a message without being registered anywhere: the constant bytes must agree and the parameter and value placeholders are read out of the bytes they stand for. A template shorter than the message matches its start.

A template with no placeholders that matches answers 0, 0.

Parameters

template

table, a template element array.

sysexBlock

userdata, a SysexBlock.

Returns

two numbers, the parameter number and the value the placeholders read, or nil when the template does not match.

patch.render(device, template [, parameterNumber])

The template as it would go out: value placeholders filled from the device's parameter map, checksums computed, function bytes asked of the device's preset. The array starts with 0xF0 and ends with 0xF7.

An empty array comes back for a template the firmware cannot render: one that contains an any placeholder, one that is ill-formed, and one longer than 511 bytes.

device:sendSysex() adds its own framing to an array, so hand it the body without the first and last byte:

lua

local bytes = patch.render(device, { "43", "10", { type = "value" } })

if #bytes > 2 then
    table.remove(bytes, 1)     -- F0
    table.remove(bytes)        -- F7
    device:sendSysex(bytes)
end

Parameters

device

userdata, a Device object.

template

table, a template element array.

parameterNumber

number, what a parameter placeholder, and a value placeholder naming parameter 0, stand for. Optional, 0 by default.

Returns

table, an array of bytes, framing included; empty when the template cannot be sent.

SysEx byte function

A SysEx byte function is used in SysEx templates, patch requests, and patch response headers to calculate and insert bytes at specific positions within a SysEx message.

It is named in the preset JSON, as { "type": "function", "name": "..." }, and must be a global function in the preset's script. It is called every time the byte it stands for is rendered - on the way out for a message, and before a response header is matched - and returns one byte.

Example preset JSON

This example shows how a Lua function is used in both the patch request and the response header. Here, it is used to request and match a SysEx patch dump from a TX7 on a specific MIDI channel.

JSON

"devices":[
   {
      "id":1,
      "name":"Yamaha DX7",
      "port":1,
      "channel":16,
      "patch":[
         {
            "request":[
               "43",
               {
                  "type":"function",
                  "name":"getChannelByte"
               },
               "00"
            ],
            "responses":[
               {
                  "id":1,
                  "header":[
                     "43",
                     {
                        "type":"function",
                        "name":"getChannelByte"
                     },
                     "00",
                     "01",
                     "1B"
                  ],
                  "rules":[
                     {
                        "type":"sysex",
                        "parameterNumber":1,
                        "byte":0
                     }
                  ]
               }
            ]
         }
      ]
   }
]

The following snippet shows how to use the Lua SysEx byte function in the SysEx template.

JSON

"values":[
   {
	  "id":"value",
	  "message":{
		 "type":"sysex",
		 "deviceId":1,
		 "data":[
			"43",
			{
			   "type":"function",
			   "name":"getChannelByte"
			},
			"00",
			"66",
			{
			   "type":"value",
			   "rules":[
				  {
					 "parameterNumber":102,
					 "bitWidth":5,
					 "byteBitPosition":0
				  }
			   ]
			}
		 ],
		 "parameterNumber":102,
		 "min":0,
		 "max":31
	  },
	  "min":0,
	  "max":31
   }
]

Functions

<sysexByteFunction>(device, value)

A function that calculates a SysEx byte and inserts it into a specific position of a SysEx message.

The last value the function returns is used. It is taken as an integer and masked to seven bits, so 0x93 goes out as 0x13. A return that is not a number, and no return at all, put a 0 in the message and write a line to the log.

The function runs on whichever thread is rendering the message - the MIDI thread for an outgoing message - so keep it short and do not send from it.

Parameters

device

userdata, a Device object - the device the message is being rendered for.

value

number, the raw MIDI value the parameter map holds for this message's parameter, or MIDI_VALUE_DO_NOT_SEND (16537) when it is unset. 0 for a patch request and a response header, which name no parameter.

Returns

number, a byte value to be inserted to the SysEx message (0 .. 127).

Example

lua

-- returns a byte that TX7 uses to identify the MIDI channel

function getChannelByte(device)
    return (0x10 + (device:getChannel() - 1))
end

Presets

The presets module is about presets as slots in the instrument - which one is on the screen, which ones keep running, and reaching one that is not yours. The Preset object is about what is inside a preset.

A preset is identified by a preset id: a slot in the whole instrument, counted as bank times the slots in a bank, plus the slot, with everything counted from zero.


Electra One mk2	12 presets in a bank, 6 banks: ids 0 to 71
Electra One Mini	8 presets in a bank, 5 banks: ids 0 to 39

preset.getId() answers the id of the preset a script belongs to, which is what to pass rather than working one out.

The id range follows the model

The range check follows the slots the instrument has: 0 to 71 on an mk2, six banks of twelve, and 0 to 39 on a Mini, five banks of eight. An id outside that range raises invalid presetId.

Presets that keep running

A preset is normally torn down the moment another one is loaded. Pinning it stops that: a pinned preset keeps its Lua state, its timer, its MIDI callbacks and its parameter map while something else is on the screen. That is what makes a background preset possible at all - an LFO or an arpeggiator that goes on running while another preset is performed, or a script that drives an external control surface whatever the player is doing.

A background preset can see the preset on the screen with presets.getCurrent(). The page and the control set are already global - pages.getActive() and pages.getActiveControlSet() answer for the screen and not for the caller - so between them a script can follow the instrument rather than drive it.

Note

A script may read another preset's controls, but it may not hang callbacks on them: setPaintCallback() and the rest are refused on a control belonging to a different preset, because a callback registered in one Lua state cannot be called from another.

Functions

presets.getCurrent()

The preset the controller is showing, whichever preset is asking. For the preset a script belongs to, use the preset module directly - preset.getControls() and the rest always mean the script's own preset, even when it is running in the background.

Returns

Preset, the preset on the screen, or nil when the slot on screen holds no preset.

presets.get(presetId)

The preset in a given slot, loaded or not. Preset(presetId) is the same thing written the other way.

A slot that holds nothing answers an object for an empty preset rather than nil; <preset>:isLoaded() tells the two apart. An id outside the range raises.

Parameters

presetId

integer, a preset id. 0 .. 71 on an mk2, 0 .. 47 on a mini.

Returns

Preset, the preset in that slot.

presets.switch(presetId)

Shows that preset - the switch the instrument makes for itself when a preset is chosen on the screen.

The switch is queued and happens on the application thread a moment later, not inside the call, so it is safe to call from a MIDI callback: the script goes on running to the end of the callback, and the preset changes after that.

The slot's pin is left as it was. Switching to a preset says nothing about whether it should keep running afterwards; presets.pin() is how a script says that.

lua

-- A pad on a plugged-in controller, stepping through a set list.
local setList = { 0, 3, 7, 12 }
local at = 1

function midi.onNoteOn(midiInput, channel, noteNumber, velocity)
    if noteNumber == 36 then
        at = (at % #setList) + 1
        presets.switch(setList[at])
    end
end

Parameters

presetId

integer, the slot to show.

Returns

nothing.

presets.pin(presetId [, pinned])

Keeps a preset running when it is not the one on the screen. Pinning a preset that is not loaded does nothing on its own - a preset becomes live by being switched to, and the pin is what stops it being torn down on the way out. Unpinning a preset that is not on the screen stops it now, not at some later switch.

This is the run-time pin. It is not written to the configuration, so it does not survive a reboot, and the pin marking in the preset list is not changed by it.

Parameters

presetId

integer, a preset id. 0 .. 71 on an mk2, 0 .. 47 on a mini.

pinned

boolean, optional. Defaults to true; pass false to unpin.

Returns

nothing.

presets.isPinned(presetId)

Parameters

presetId

integer, a preset id. 0 .. 71 on an mk2, 0 .. 47 on a mini.

Returns

boolean, true when the slot is pinned.

Example: a preset that follows the one on the screen

The idea behind presets.getCurrent(): a preset that pins itself, runs in the background, and reports what is under the instrument's knobs. Everything it reads belongs to a preset it knows nothing about.

lua

function preset.onReady()
    -- Without this the script is torn down as soon as the player changes
    -- preset, which is exactly when it has most to say.
    presets.pin(preset.getId())

    timer.setPeriod(500)
    timer.enable()
end

local lastSeen = ""

function timer.onTick(ticks)
    local shown = presets.getCurrent()

    if not shown then
        return
    end

    -- The page and the control set are the screen's, not this preset's.
    local pageId = pages.getActive():getId()
    local controlSet = pages.getActiveControlSet()
    local line = shown:getName() .. " page " .. pageId .. ":"

    for potId = 1, 8 do
        local control = shown:getControlByPot(pageId, controlSet, potId)

        if control then
            local value = control:getValue(control:getValueIds()[1])

            -- getText() is the string the instrument is itself showing -
            -- a formatter's output, an overlay's label. It is empty for a
            -- value that declares no formatter, so fall back to the number.
            local text = value:getText()

            if text == "" then
                text = tostring(value:getValue())
            end

            line = line .. " " .. control:getName() .. "=" .. text
        end
    end

    if line ~= lastSeen then
        lastSeen = line
        print(line)
    end
end

Note

A background preset's timer runs on the application thread, which the display shares. Walking every control of every page at a display rate is enough to make the instrument slow to repaint its own screen. Do the expensive walk when the layout changes - a preset switch, a control set change - and keep the steady state cheap.

presets.create(presetId, name [, options])

Firmware 5.0 and later. Puts an empty preset in the slot's file: one page, one device, no controls. The slot is left unloaded; presets.load() or a switch reads it.

It answers false rather than raising for a slot that cannot be written: the slot on screen, a running slot, or an occupied one without replace.

Application thread only.

Parameters

presetId

number, the slot.

name

string, the preset's name (at most 20 characters).

options

table, replace = true to overwrite a slot that holds a preset. Optional.

Returns

boolean, true when the file was written.

presets.load(presetId)

Firmware 5.0 and later. Reads the slot into memory, pinned, without showing it: the target a preset editor works on. A slot already in memory is answered as it stands.

Its script runs as on any load, preset.onEnter() included, although nothing of it is shown. Raises when the slot cannot be read, and when it is called off the application thread.

Parameters

presetId

number, the slot to read.

Returns

userdata, the Preset object.

Preset

The preset module offers functions and callbacks to manage events that happen when working with presets.

number, the preset format version.

preset.getId()

The slot this preset is in. In the module form - preset.getId() - that is always the script's own slot, never the slot on screen: a pinned preset goes on running in the background while the controller displays another one, and its script still answers for itself. On a Preset object - Preset(4):getId() - it is that preset's slot.

Counted from zero, because that is the identifier the File Transfer API, the slot paths and the archive formats all use.

Returns

number, the slot the preset occupies, counted from zero.

preset.getBank()

The bank the preset is in, numbered as the controller shows it.

Returns

number, the bank, counted from one.

preset.getSlot()

The slot the preset occupies within its bank, numbered as the controller shows it.

Returns

number, the slot within the bank, counted from one.

Example

lua

function preset.onReady()
    print(string.format("%s (%s) in bank %d slot %d",
        preset.getName(),
        preset.getProjectId(),
        preset.getBank(),
        preset.getSlot()))
end

What is in the preset

These return the objects the preset is made of. Every collection is a dense array - there are no holes in it, so # is the count and ipairs reaches the end - and it is ordered by ascending id. preset.getPages() is the one exception, and says so below.

Groups are controls

A group is a control in the firmware: it lives in the same collection, shares the same id space, and sits on a page like anything else. So preset.getControls() returns groups too, each with the methods of what it actually is - a group in the array answers getLabel(), a control answers getName(), and both answer getName() and isGroup().

Use preset.getGroups() when you want only the groups.

preset.getControls()

Every control in the preset, groups included, in ascending id order.

Returns

table, an array of Control and Group objects.

preset.getControl(controlId)

One control by id. Answers nil rather than raising, so it can be tested directly.

Parameters

controlId

number, the id of the control.

Returns

Control or Group object, or nil when the preset has no control with that id.

preset.eachControl(callback)

Walks every control without building a table. A preset with a full page has up to 432 controls, and a script that walks them on every frame should not allocate an array on every frame.

Return false from the callback to stop the walk. Returning nothing carries on, so the usual case needs no return statement at all.

The callback is not run in a pcall: an error in it is an error in the call.

Parameters

callback

function, called once per control with the control as its only argument.

Returns

number, how many controls were visited.

preset.getGroups()

Only the groups, in ascending id order.

Returns

table, an array of Group objects.

preset.getGroup(groupId)

Parameters

groupId

number, the id of the group.

Returns

Group object, or nil.

preset.eachGroup(callback)

Parameters

callback

function, called once per group.

Returns

number, how many groups were visited.

preset.getDevices()

Every MIDI device the preset defines. Dense: a preset with devices 1 and 5 gives an array two long, not five.

Returns

table, an array of Device objects.

Parameters

pageId

number, the page, counted from one. 1 .. 12 on an mk2, 1 .. 16 on a Mini.

Returns

Page object, or nil when the preset has no such page.

preset.getPages()

Every page slot of the model - twelve entries on an mk2, sixteen on a Mini - whether or not the preset defines a page there.

It is not a dense array of the preset's pages. A slot the preset does not define holds a placeholder Page object whose getId() is 0, so # is the model's page count and a walk has to skip them:

lua

for _, page in ipairs(preset.getPages()) do
    if page:getId() ~= 0 then
        print(page:getId() .. " " .. page:getName())
    end
end

preset.getPage(id) is the dense sibling: nil for a page that is not there.

Returns

table, an array as long as the model has pages.

Example: renaming every control on a page

lua

-- Groups are in the array too, so skip them: a group's name is its label.
for _, control in ipairs(preset.getControlsOnPage(1)) do
    if not control:isGroup() then
        control:setName(control:getName():upper())
    end
end

Example: walking without allocating

lua

-- eachControl builds no table, so this is the form to use on a timer tick.
function timer.onTick(ticks)
    local visible = 0

    preset.eachControl(function (control)
        if control:isVisible() then
            visible = visible + 1
        end
    end)

    info.setText(string.format("%d visible", visible))
end

Example: stopping early

lua

-- Returning false stops the walk. This finds the first fader and leaves the
-- rest of the preset unvisited.
local firstFader

preset.eachControl(function (control)
    if not control:isGroup() and control:getType() == "fader" then
        firstFader = control
        return false
    end
end)

Controls, narrowed

preset.getControlsOnPage(pageId)

Everything on one page, groups included - a group is on a page like anything else.

Parameters

pageId

number, the page, counted from one.

Returns

table, an array of Control and Group objects on that page.

preset.eachControlOnPage(pageId, callback)

Parameters

pageId

number, the page, counted from one.

callback

function, called once per control.

Returns

number, how many controls were visited.

preset.getGroupsOnPage(pageId)

Parameters

pageId

number, the page, counted from one.

Returns

table, an array of Group objects.

preset.getControlsInSet(pageId, controlSetId)

The controls of one control set. The page is required, because a control set belongs to a page - control set 1 exists on every one of them, so a set number on its own does not name a set.

Groups are not included: a group is on a page but in no control set.

A control set id outside 1 .. 3 raises. How many sets a page really uses depends on the model and on the preset - a Mini works one set - so a set that exists but holds nothing answers an empty array.

Parameters

pageId

number, the page, counted from one.

controlSetId

number, the control set: 1, 2 or 3.

Returns

table, an array of Control objects.

preset.eachControlInSet(pageId, controlSetId, callback)

Parameters

pageId

number, the page, counted from one.

controlSetId

number, the control set: 1, 2 or 3.

callback

function, called once per control.

Returns

number, how many controls were visited.

preset.getActiveControls()

The control set the user is looking at, on the page they are on - the knobs in front of them right now.

It is a function of its own rather than a default for getControlsInSet() because the same call would otherwise mean different things as the user navigates.

The page and the set are the screen's, always. A background preset asking this gets its own controls that happen to sit on the page and set the screen is showing.

Returns

table, an array of Control objects.

preset.getControlByPot(pageId, controlSetId, potId)

The control a knob drives. The collections are ordered by id rather than by knob, because a control with several values owns several knobs and a control placed by bounds owns none - so this is how to ask positionally.

A pot id outside the range raises. A Mini has eight knobs and four hardware buttons that act as pots 9 to 12.

Parameters

pageId

number, the page, counted from one.

controlSetId

number, the control set: 1, 2 or 3.

potId

number, the knob, counted from one (1 .. 12).

Returns

Control object, or nil when no control is assigned to that knob.

Example: labelling the knobs the user can see

lua

-- The controls in front of the user, whichever page they are on.
function preset.onReady()
    events.subscribe(PAGES)
end

function events.onPageChange(newPageId, oldPageId)
    local names = {}

    for _, control in ipairs(preset.getActiveControls()) do
        table.insert(names, control:getName())
    end

    info.setText(table.concat(names, " "))
end

Example: dimming a knob's control

lua

-- Knob 3 of the second control set on page 1.
local control = preset.getControlByPot(1, 2, 3)

if control then
    control:setColor(0x808080)
end

Preset objects

Every function above is also a method on a Preset object, so a script can address a preset other than its own:

lua

local other = Preset(4)

print(other:getName(), #other:getControls())

preset.getControls() and myPreset:getControls() are the same call; the module form means the preset the script belongs to.

Lifecycle callbacks

Five callbacks, in the order the firmware runs them. All of them are optional, all of them run on the application thread, and an error in one is written to the log and does not stop the load.

A preset being read into a slot - switching to a slot whose preset is not in memory, a reload, presets.load():

Whatever ran in the slot before is ended: preset.onExit(), then its timer, MIDI callbacks, transport listeners, router link and data pipes are undone.
The preset file is read. Pages, devices, overlays, groups and controls are built, every control value registers its parameter map entry, and the saved map is recalled - so the values are in place before any script runs.
The script runs: the main chunk, top to bottom.
The midi.* callbacks the chunk defined are registered. A midi.onX defined later - in onLoad, in a timer, in another callback - is never registered.
preset.onLoad().
The initial Lua pass over the parameter map: the value functions and formatters bound to values run for the first time.
preset.onReady().
preset.onEnter().

Coming back to a preset that is already in memory - a pinned preset, or the slot that is already loaded: the callbacks are rebound and preset.onEnter() runs. Nothing else of the list above happens.

Leaving the preset on the screen: preset.onLeave() runs on the preset going off, pinned or not. A preset that is not pinned then stops: its timer is suspended and its MIDI callbacks are removed. A pinned one keeps running.

The end of a Lua state: preset.onExit() runs whenever the state is closed - when the slot is reset, another preset is loaded into it, the preset is reloaded, a new script is uploaded over SysEx, or the preset is removed.

preset.onLoad()

Called after the preset file has been read and the script's main chunk has run, and before the first Lua pass over the parameter map.

The controls, devices, pages and values all exist here, and the parameter map already holds what the file and the recalled map gave it. What has not happened yet is that first pass, so the value functions and formatters have not run. Start-up work that depends on them belongs in preset.onReady().

preset.onReady()

Called when the preset is fully initialized and ready to be used: after the initial parameter map pass, before onEnter().

This is where a script's own set-up belongs - pinning itself, starting a timer, asking for a patch, subscribing to events.

preset.onEnter()

Called when the preset becomes the one in use: after onReady() on a fresh load, and on its own when the user comes back to a preset that is still in memory.

It also runs on a load that shows nothing - presets.load() and a background reload - so a script must not take it as proof that its preset is on the screen:

lua

function preset.onEnter()
    local shown = presets.getCurrent()

    if shown and shown:getId() == preset.getId() then
        info.setText("here we are")
    end
end

preset.onLeave()

Called on the preset that is on the screen when the controller switches away from it, whether or not it is pinned - and also when that preset is reloaded, or replaced by a SysEx upload.

A preset that is not pinned stops running right after this: stop notes, release what has to be released, here.

preset.onExit()

Called when the preset's Lua state is about to be closed: the slot is being reset, another preset or another script is being loaded into it, the preset is being reloaded or removed.

It is the last Lua that runs in that state. It is not called when the user merely switches to another preset and this one keeps running.

Tables

preset.userFunctions

The preset.userFunctions table holds custom Lua functions that can be triggered from the Preset Menu on the Electra One controller.

Each function is assigned to one of the predefined keys: pot1 through pot12 on an Electra One mk2, pot1 through pot8 on a Mini. These correspond to the on-screen buttons in the Preset Menu and match the layout of the physical knobs.

Each entry is a table that defines:

call – The Lua function that will be executed when the button is triggered. It is called with no arguments.
name – The label that will appear on the on-screen button.
close – A boolean value that, when set to true, causes the Preset Menu to close after the function has been executed. This field is optional.

An entry with a name and no call shows a button that does nothing; an entry with a call and no name runs but is not labelled, so give every entry both.

Only the assigned slots will be displayed in the menu. Buttons with a user function appear in blue.

How a function is triggered:


mk2	tapping the on-screen button; touching the knob under it when Settings → Interface → Pot Touch Selections is on
Mini	pressing the knob under the button while the Preset Menu is open
both	the commands `runUserFunction1` .. `runUserFunction12`, so a function can be put on a hardware button or run from a script with `commands.run()`

The table is read when the Preset Menu is opened, so a script may change it at any time.

Example

lua

-- Register the functions for use in the Preset Menu
preset.userFunctions = {
    pot1 = {
        call = printHello,
        name = "Hello",
        close = true
    },
    pot2 = {
        call = printHi,
        name = "Hi",
        close = false
    },
    pot8 = {
        call = printGoodBye,
        name = "GoodBye",
        close = false
    }
}

Editing a preset from Lua

Firmware 5.0 and later. A preset - the caller's own, or any slot's reached through presets.get() or presets.load() - is a document a script can read whole, build, change, save and reload. Everything is built on one rule:

The Lua table shape is the preset file shape. Every create takes a table with the keys the .epr object has, and every toTable() hands the same shape back. A table goes through the same reader the file goes through, so the same defaults are folded in; an object comes back through the same writer, so what a script sees is what the file would say. Ports count from one in a table, as in the file. There is no second vocabulary.

Every module verb has a twin on the preset object, and the twins are how one preset builds another: controls.create(t) is preset:createControl(t) on the caller's own preset; target:createControl(t) does the same in target.

Each of the functions below is written as a method - target:save() - and each of them has the module form as well: preset.save(), preset.createControl(t), preset.setScript(text). The module form always means the preset the script belongs to.

lua

-- An installer: a device with its patch definitions, and a control for it,
-- in another slot.
local rules = {
    {
        type = "sysex",
        parameterNumber = 135,
        byte = 0
    }
}

local target = presets.load(11)

target:setName("DX7 II")

target:createDevice {
    id = 1,
    name = "DX7",
    port = 1,
    channel = 1,
    patch = {
        {
            request = {
                "F0", "43", "20", "00", "F7"
            },
            responses = {
                {
                    id = 1,
                    header = {
                        "F0", "43", "00", "00", "01", "1B"
                    },
                    rules = rules
                }
            }
        }
    }
}

target:createControl {
    pageId = 1,
    controlSetId = 1,
    type = "fader",
    name = "ALGORITHM",
    slot = 1,
    inputs = {
        {
            potId = 1,
            valueId = "value"
        }
    },
    values = {
        {
            id = "value",
            min = 1,
            max = 32,
            message = {
                deviceId = 1,
                type = "sysex",
                parameterNumber = 135,
                min = 0,
                max = 31,
                data = {
                    "F0",
                    "43",
                    "10",
                    "01",
                    "06",
                    { type = "value" },
                    "F7"
                }
            }
        }
    }
}

if target:save() then
    target:reload()
end

The rules:

Definitions cross; behaviour does not. Templates, rules, messages, events and function names are data and land in the target. A function, a paint callback or a pot callback is behaviour bound to one Lua state, and setting a callback on another preset's control is refused. setScript() is how behaviour travels: an editor names functions in templates and values and ships the script that defines them.
The application thread only. Every create and remove, and save(), reload(), setScript(), setName(), setProjectId(), presets.create() and presets.load(), raise when they are called from a thread other than the application thread: a formatter run by an incoming message, or a custom control's paint callback. Every preset callback - preset.onReady, control, MIDI, timer and schedule callbacks, commands and patch hooks - runs on the application thread. A few smaller setters - setVersion(), presets.pin(), the Page setters - do not check, and belong on the application thread all the same.
Saving is explicit. Edits live in memory until save(). A target on screen repaints the affected control at once; a background one has no components and needs nothing; a reload is only needed when the script changed, and a background target reloads without the screen moving.
Limits. 432 controls a preset, 32 devices, 255 names in the Lua function registry, response headers of at most 64 bytes, rendered templates of at most 511 bytes.

<preset>:setName(name)

Renames the preset in memory, and in the preset list when it is in a slot. setProjectId(projectId) and setVersion(2 or 3) set the other two root members; setVersion() refuses anything but 2 and 3.

Parameters

name

string, the new name (at most 20 characters).

<preset>:isLoaded()

presets.get() answers for every slot, parsed or not; this tells the two apart.

Returns

boolean, whether the slot's preset is in memory.

<preset>:getLuaFunctions()

What an editor checks against the script it ships with setScript().

Returns

table, an array of the function names the preset's templates and values refer to.

<preset>:toJson()

The preset as its file, streamed straight into the string.

boolean, true when the file was written.

<preset>:reload()

Reads the slot's files again. For the preset on screen it is queued, the way the commands module queues, and the screen is redrawn: a preset reloading itself loses the running script, so the call returns first. Any other slot is read again in place, at once, and the screen stays where it is - which is what an editor that has just saved a background target wants; the target keeps its pin. A preset running in the background cannot reload itself, and raises if it tries.

<preset>:getScript()

The script file as text. setScript(text) writes it - replacing whatever was there - and answers true when the file was written. The script runs when the preset is next loaded or reloaded.

boolean, true when an overlay was removed.

Example: a preset that edits itself

A user function that gives every device of the preset a volume fader on page 1, then saves. Nothing is reloaded: the controls are in memory and on the screen already, and the script has not changed.

lua

function buildVolumeFaders()
    local slot = 1

    for _, device in ipairs(preset.getDevices()) do
        -- One per device, and only the ones that are not there yet.
        local id = 900 + device:getId()

        if not preset.getControl(id) then
            preset.createControl {
                id = id,
                type = "fader",
                name = device:getName(),
                pageId = 1,
                controlSetId = 1,
                slot = slot,
                inputs = { { potId = slot, valueId = "value" } },
                values = { { id = "value", min = 0, max = 127,
                             message = { deviceId = device:getId(),
                                         type = "cc7",
                                         parameterNumber = 7,
                                         min = 0, max = 127 } } },
            }
        end

        slot = slot + 1
    end

    if preset.save() then
        info.setText("faders saved")
    else
        info.setText("save failed")
    end
end

-- The Preset Menu runs it, which is the application thread: preset editing
-- raises from a timer.
preset.userFunctions = {
    pot1 = { name = "FADERS", call = buildVolumeFaders, close = true }
}

The router table

A preset may carry a router.lua beside its script - a separate sandbox that sees every MIDI message before the preset does. The preset-side router table is how the script talks to it.


`router.set(name, value)`	Sets one of the parameters the router's `init()` declared. A number or a boolean; a boolean is passed on as 1 or 0. Raises when the preset has no router, or the router has no parameter of that name.
`router.get(name)`	That parameter's value as a number, or nil.
`router.params()`	Every parameter as a table of name to number; empty when there is no router.
`router.isActive()`	Whether a router is loaded for this preset.
`router.reload()`	Reads `router.lua` again and starts it over. The parameters go back to what `init()` declares. Answers true.

The router talks back by calling a global function in the preset script:

lua

function onRouterEvent(name, value)
    if name == "overflow" then
        info.setText("router dropped something")
    end
end

The name is at most 20 characters and the value is a number. Events are queued, and the queue holds 32 of them.

The router script itself - what it can do, what init() looks like, the budget it runs under - is documented in Router Lua.

Events

The Events module lets you control which notifications Electra One sends out and define callback functions to handle those events.

A subscription is one byte, shared by the Lua callbacks and the SysEx event notifications the controller sends out. It is global to the instrument, not to the preset: it is not reset when the preset changes, and the last script to call events.subscribe() decides what everybody gets.

Flag	Value	What it turns on
`NONE`	0	nothing
`PAGES`	1	`events.onPageChange()` and the page SysEx notification
`CONTROL_SETS`	2	the control set SysEx notification; no Lua callback
`USB_HOST_PORT`	4	`events.onUsbHostChange()`
`POTS`	8	`events.onPotTouchChange()`, `events.onPotTouch()` and the pot touch SysEx notification
`TOUCH`	16	reserved; drives no Lua callback
`BUTTONS`	32	reserved; drives no Lua callback
`WINDOWS`	64	reserved; drives no Lua callback

The callbacks go to the preset on the screen

events.onPageChange(), events.onPotTouchChange() and events.onUsbHostChange() are called in the script of the preset the controller is showing. A pinned preset running in the background does not hear them. pages.onChange() has the same rule, and needs no subscription at all.

Functions

events.subscribe(eventFlags)

A function to instruct the controller what event notifications should be emitted. Subscribed events result in calls to event callback functions and in sending out SysEx event notifications.

The call replaces the whole subscription rather than adding to it, so pass everything the preset wants in one call.

Parameters

eventFlags

number, the flags above added together (0 .. 127). Anything outside that raises.

events.setPort(port)

Sets MIDI port that will be used to send out event notifications. This is the controller's control port, so it is global as well.

Parameters

port

enum, a numeric representation of the MIDI port [PORT_1, PORT_2, PORT_CTRL].

events.onPageChange(newPageId, oldPageId)

A callback function that runs automatically when the user switches to a different page.

It runs only when PAGES has been subscribed to - events.subscribe(PAGES) - and only in the preset on the screen. pages.onChange(new, old) is the same notification without the subscription.

Parameters

newPageId

number, a numeric identifier of the Page being activated. 1 .. 12 on an mk2, 1 .. 16 on a Mini.

oldPageId

number, a numeric identifier of the Page being left.

events.onPotTouchChange(potId, controlId, touched)

A callback function that is called when user touches or releases the controller knobs.

Needs POTS in the subscription.

Parameters

potId

number, the knob being touched, counted from one.

controlId

number, the control the knob drives, or 0 when no control is assigned to it.

touched

boolean, when true the Pot has an active touch, otherwise it was released.

events.onPotTouch(potId, controlId, touched)

Deprecated. The older spelling of events.onPotTouchChange(), with the knob counted from zero. Both are called, one after the other, and every call writes a deprecation line to the log. Use onPotTouchChange.

Parameters

potId

number, the knob being touched, counted from ZERO.

controlId

number, the control the knob drives, or 0.

touched

boolean, true on touch, false on release.

events.onUsbHostChange(port, eventType)

A callback that runs when a USB device is plugged into, or unplugged from, the controller's USB host port. Needs USB_HOST_PORT in the subscription.

The notification is handed to the application thread rather than run on the USB thread, so it arrives a moment after the event - and it is dropped when the command queue is full. Do not count on it for anything that must not be missed.

What was plugged in is not passed to the callback. When a USB device switches the controller to a preset through the USB host assignments, that preset's script is started with a global table usbHostDevice describing it:

lua

-- usbHostDevice = { vid, pid, manufacturer, product, serial, port }
if usbHostDevice then
    print("started by " .. usbHostDevice.product)
end

It is set before the script's main chunk runs, only on that path, and it is never updated afterwards - so it says what started the preset, not what is plugged in now.

Parameters

port

number, which USB host device slot changed, counted from zero.

eventType

number, 1 when a device was plugged in, 2 when it was unplugged.

Example

lua

-- Watching the pages and the knobs

function preset.onReady()
    events.subscribe(PAGES | POTS)
    events.setPort(PORT_CTRL)
end

function events.onPageChange(newPageId, oldPageId)
    print("old: " .. oldPageId)
    print("new: " .. newPageId)
end

function events.onPotTouchChange(potId, controlId, touched)
    print("potId: " .. potId)
    print("controlId: " .. controlId)
    print("touched: " .. (touched and "yes" or "no"))
end

Info

The Info module lets you show custom text messages in the status bar at the bottom of the screen.

The text belongs to the preset slot on the screen, and it is at most 20 characters: anything longer is cut. It survives until something else writes there.

Functions

info.setText(text)

Displays the text in the bottom status bar.

This is how a script talks to the user. print() goes to the logger, which is off unless somebody is listening on the control port; the status bar is on the instrument.

Parameters

text

string, a text message to be displayed. At most 20 characters.

Example

lua

-- Display an info text

info.setText("Hello world")

info.getText()

Retrieves the text shown in the bottom status bar. An empty string when nothing has been set.

Returns

string, the text currently shown in the status bar at the bottom of the screen.

Example

lua

-- Retrieve an info text

print("Text shown: " .. info.getText())

Try it yourself

🚀

Info module demo

Commands

The commands module runs one of the instrument's own actions by name - the same actions a hardware button, a MIDI control mapping or a preset override can be given. Commands.inc is the one list behind all of them, so anything that can be put on a button can be run from a script.

This is what lets an external control surface reach the instrument's user interface without the firmware knowing anything about that surface: a pad on a plugged-in controller can open the snapshots window, step to the next page, or toggle the performance page, because the script in the preset turns the pad into a command name.

Parameters follow the configuration file's convention rather than the command queue's, because that is the convention the names come with: a preset, a page and a control set are counted from one.

Functions

commands.run(name [, parameter])

Schedules one of the instrument's actions. The command is queued and runs on the application thread, so it does not happen inside the call - a script that opens a window and then reads the screen reads the screen as it was. Raises when the name is not one the instrument knows, so check it with commands.exists() when the name came from somewhere else, and when the parameter is out of range for that command.

Parameters

name

string, the name of the command, as the configuration file spells it.

parameter

integer, an optional parameter. Commands that take none ignore it.

Returns

nothing.

commands.exists(name)

Parameters

name

string, a command name.

Returns

boolean, true when the instrument knows the name.

commands.getNames()

Returns

table, an array of every command name that can be run.

Example

lua

-- A row of pads on a plugged-in controller, driving the instrument itself.

local pads = { [1] = "openSnapshots",
               [2] = "openCaptures",
               [3] = "switchPagePrev",
               [4] = "switchPageNext",
               [5] = "togglePerformancePage" }

function midi.onNoteOn(midiInput, channel, noteNumber, velocity)
    local command = pads[noteNumber - 35]

    if command and commands.exists(command) then
        commands.run(command)
    end
end

lua

-- Commands that take a parameter count from one, the way the configuration
-- file does: this is page 3, not the fourth page.

commands.run("switchPage", 3)
commands.run("switchControlSet", 1)

-- The Preset Menu's user functions have commands of their own.
commands.run("runUserFunction1")

Four ways of making something happen later

A preset script never runs on its own. It runs when the controller calls it: when a knob is turned, when a MIDI message arrives, and - for everything on this page - when a time comes round.

	what it is	when the function runs	precision
`timer`	one periodic callback per preset	application thread	the period is kept in microseconds and never drifts; delivery is to the millisecond
`schedule`	any number of one-shot and repeating functions, each with its own clock	application thread	the same, and a function that finds the thread busy is run as soon as it is free
`transport`	callbacks and cues driven by MIDI clock, incoming or the controller's own	application thread, a few milliseconds after the clock byte	the beat is exact, the callback is not
`midi.at()`	a send held back until a named millisecond	the MIDI schedule thread, the highest priority there is	the message leaves on the millisecond it names, whatever the application thread is doing

The application thread is the one that also builds pages, reads the knobs and runs every other preset's script. So a callback on it is called within a millisecond or two when the controller is idle, and tens of milliseconds late while a page is being built or a window is opening.

That is the rule worth learning first: work out when something is due, then hand the message to midi.at(). A sequencer that waits until a note is due before sending it is already late by however long its own callback took. One that works a tick ahead and gives midi.at() the time is exact.

Which one to use

A steady tempo - an LFO, a step sequencer, a clock - is a timer. Anything with its own delay - a request sent 200 ms after the preset loads, a value sent once a knob has stopped moving - is schedule. Anything that has to follow the studio's tempo is transport.

Timer

The timer runs one function, timer.onTick(), over and over at a period the preset sets. It is what an LFO, a step sequencer or a display that refreshes itself is built on.

Every preset slot has its own timer, and it runs while that preset runs: on the screen, or pinned behind another preset. A preset that is left without being pinned has its timer suspended - it stops ticking, keeps its period, and starts again when you come back to the preset.

A new preset's timer is disabled, with a period of 500 ms - one tick per beat at 120 BPM - so timer.enable() on its own ticks twice a second. Set the period or the tempo before enabling it if you want anything else.

How exact it is

The schedule is a deadline on the millisecond clock, moved on by exactly one period from the previous deadline rather than from when the callback happened to run. The time the callback spends working is absorbed instead of being added to the next interval, so the tempo does not drift: a minute at 120 ticks a second is 7200 ticks. The period is kept in microseconds, so a tempo whose period is not a whole number of milliseconds - 200 BPM at 24 clocks to the beat is 12.5 ms - averages out exactly. Nothing finer than a millisecond can be delivered, because the application run loop turns at 1 kHz.

Two things can cost a tick, and they are counted separately:

a tick that falls a whole period or more behind is given up on, because calling the script once for every missed tick would be worse than the gap. timer.getSkippedTicks() counts them.
a tick that finds the preset's Lua state busy - the LCD thread is inside it for as long as a custom control's paint callback takes - is dropped rather than waited for. timer.getContendedTicks() counts them.

Neither is forgotten. The next call's ticks argument says how many periods it stands for, so a script that counts ticks keeps its place in time.

A callback that never returns

A timer.onTick() that has not returned after ten seconds is stopped, the timer is disabled, and a problem is shown in the bottom bar. Fix the function and call timer.enable() again. Holding the six main buttons together for two seconds stops every preset's timer, and clears every preset's schedule, the same way.

Functions

timer.enable()

Enables the timer and starts its schedule from now. timer.onTick() is then run at the current period - 500 ms unless the script has set another.

The period is not changed. Raises when the script has no preset slot to time.

timer.disable()

Disables the timer. The period is kept, so timer.enable() starts it again at the same rate.

timer.isEnabled()

Whether the timer is enabled. It says nothing about whether it is ticking: a preset that is not running has its timer suspended - see timer.isSuspended().

integer, the period in milliseconds, rounded to the nearest.

timer.setPeriodUs(period)

The period as it is actually kept. Use it for a rate that is not a whole number of milliseconds and is not a tempo either.

Parameters

period

number, microseconds (1 .. 3600000000).

timer.getPeriodUs()

The exact period, with no rounding.

Returns

integer, the period in microseconds.

timer.setBpm(bpm)

Sets the period as a tempo: one tick per beat, so the period is 60000000 / bpm microseconds.

One tick a beat is rarely what a sequencer wants. Multiply for finer steps - timer.setBpm(120 * 4) is a sixteenth note at 120 BPM - or use timer.setClockBpm() for a MIDI clock.

Parameters

bpm

number, the tempo in beats per minute. Greater than zero, and the period it works out to has to be inside the range setPeriod() takes.

timer.getBpm()

The exact inverse of timer.setBpm().

Returns

number, the tempo in BPM at one tick per beat; 0 when no period is set.

timer.setClockBpm(bpm)

Sets the period as a MIDI clock tempo: twenty-four ticks per beat, the rate a callback sending midi.sendClock() needs.

setPeriod() cannot express most of these tempos - 200 BPM is 12.5 ms - which is why this exists.

For a steady clock, prefer the controller's own clock generator - see The controller's own clock. It runs on a higher priority thread and keeps time while a script is working.

Parameters

bpm

number, the tempo in beats per minute, greater than zero.

timer.getClockBpm()

The inverse of timer.setClockBpm().

Returns

number, the tempo in BPM at twenty-four ticks per beat; 0 when no period is set.

timer.getSkippedTicks()

Ticks the schedule gave up on because it was a whole period or more behind. The count only grows, so a script interested in a rate remembers the previous value. Anything above zero means the callback does not fit its period, or something else is holding the application thread up.

Returns

integer, ticks given up on since the controller was switched on.

timer.getContendedTicks()

A different failure from a skipped tick: the callback never started because something else was inside this preset's Lua state - most often the LCD thread, running a custom control's paint callback.

Returns

integer, ticks dropped because the preset's Lua state was busy.

timer.getFailedTicks()

How many calls to timer.onTick() raised, since the period was last set. The error itself is written to the log at most once every two seconds, so this count is what says how bad it is.

Returns

integer, ticks whose callback raised an error.

timer.getLoad()

What share of the period the callback took, averaged over the last full second. 1 means the callback fills its period exactly and there is nothing left for the knobs, the screen or incoming MIDI. Above 1 is possible: ticks are being skipped by then.

A preset that does variable work can read this and do less.

Returns

number, 0 to 1 and above - the share of the period the callback is using.

timer.getMaxDurationUs()

The worst case, which is what decides whether a period is realistic. It is wall clock time, so it includes anything of higher priority that ran while the callback was in the middle.

Returns

integer, microseconds - the longest callback since the period was last set.

timer.onTick(ticks)

A user-defined function, run on the application thread at every timer period.

A script that ignores the argument behaves as it always did. One that counts ticks - a sequencer, an LFO with a phase - should add ticks rather than 1, or it loses time whenever the controller is busy.

Anything a script may do at all may be done here, with two exceptions: controls.create(), groups.create() and <control>:update() raise from a timer, and window.repaint() from a fast timer starves the application thread - repaint the control instead, with <control>:repaint().

Parameters

ticks

integer, how many periods this call stands for. 1 when the timer is keeping up; more after a tick that was skipped or dropped.

Example: an LFO

lua

-- A triangle LFO on CC 74 of device 1, fifty steps a second.
--
-- parameterMap.set() moves the control that owns the parameter and sends the
-- message, so the preset needs a control on CC 74 of device 1 for anything to
-- happen. The value has to be an integer: helpers.map() answers a float, and
-- a float raises here.

local phase = 0
local steps = 50

function preset.onReady ()
    timer.setPeriod(20)
    timer.enable()
end

function timer.onTick (ticks)
    phase = (phase + ticks) % steps

    local position = phase / steps
    local triangle = (position < 0.5) and (position * 2) or (2 - position * 2)

    parameterMap.set(1, PT_CC7, 74, math.floor(triangle * 127 + 0.5))
end

Example: a step sequencer

lua

-- Eight steps at 120 BPM, one tick per sixteenth note.
--
-- The notes are not sent when the tick runs: the tick works out the
-- millisecond each note is due and hands it to midi.at(), so the notes leave
-- on time even while the controller is busy drawing a page.

local steps = { 60, 63, 67, 70, 72, 70, 67, 63 }
local step = 0
local gate = 0.5           -- of a step
local lookAhead = 20       -- milliseconds of head start

function preset.onReady ()
    timer.setBpm(120 * 4)  -- one tick per sixteenth
    timer.enable()
end

function timer.onTick (ticks)
    local period = timer.getPeriod()
    local now = schedule.now()

    -- One pass per period this call stands for, so a tick lost while a window
    -- was opening does not cost the pattern its place.
    for i = 1, ticks do
        local note = steps[(step % #steps) + 1]

        -- Everything is worked out a little ahead of when it is due and
        -- handed to midi.at(), which sends it on the millisecond named.
        local at = now + lookAhead + (i - 1) * period

        midi.at(at)
        midi.sendNoteOn(PORT_1, 1, note, 100)

        midi.at(at + math.floor(period * gate))
        midi.sendNoteOff(PORT_1, 1, note, 0)

        step = step + 1
    end

    midi.at()              -- send at once again
end

Schedule

timer.onTick is one callback with one period, and everything else a preset wanted to happen later - a delayed request, a message sent after a knob stops moving, a second LFO - had to be multiplexed into it by hand. schedule queues functions to run once after a delay or repeatedly at an interval, each with its own clock. A preset may have thirty-two of them queued at once.

Scheduled functions run on the application thread, between passes of its run loop, so they may do anything a timer.onTick may. They run under the same guard: a function that has not returned after ten seconds is stopped, and everything that preset had scheduled is dropped with it. They run while the preset runs - on the screen, or pinned behind another preset - and wait while it is not. timer is unchanged; presets that use it are unaffected.

schedule.whenNotes() is here too: not a delay but a trigger, run when a combination of notes is held down on a device.

Functions

schedule.after(ms, fn [, ...])

Runs fn once, ms milliseconds from now. 0 runs it on the next pass of the run loop.

Raises when nothing more can be queued - a preset may have thirty-two things scheduled at once. A nil among the extra arguments can truncate the ones after it; pass false or a placeholder instead.

Parameters

integer, how many milliseconds from now to run it. A fraction raises; a negative number raises.

function, what to run.

...

optional, any further arguments are passed to fn when it runs.

Returns

integer, a handle for schedule.cancel().

schedule.every(ms, fn [, ...])

Runs fn every ms milliseconds until cancelled. The next run is counted from when the function ran, not from when it was due, so a function that fell behind does not fire a burst to catch up - and, unlike the timer, a repeating scheduled function does drift by however long it takes. Use timer for anything that has to keep tempo.

A repeating function that raises an error is dropped rather than left to raise again on every pass.

Parameters

integer, the interval in milliseconds. A fraction raises; a negative number raises; 0 is taken as 1.

function, what to run.

...

optional, any further arguments are passed to fn on every run.

Returns

integer, a handle for schedule.cancel().

schedule.cancel(handle)

Takes a scheduled function or a note trigger back. A handle that has already run, or was already cancelled, answers false and cancels nothing else - a handle is never reused while the entry it belongs to is alive.

A function may cancel itself from inside its own call.

Parameters

handle

integer, what after(), every() or whenNotes() returned.

Returns

boolean, true when something was queued under that handle.

schedule.now()

The clock after() and every() measure from - the same one controller.uptime() and midi.at() read.

Returns

integer, milliseconds, on the clock the delays count in.

schedule.stats()

How the schedule is doing:


`pending`	how many functions are queued now
`ran`	how many have run to the end since the preset was loaded
`errors`	how many raised
`worstOverrun`	the latest any of them ever ran, in milliseconds after it was due
`capacity`	how many may be queued at once - 32
`whenNotes`	how many `whenNotes()` triggers are set

Returns

data table, { pending, ran, errors, worstOverrun, capacity, whenNotes }.

schedule.whenNotes(notes, callback [, options])

Runs a function when a combination of notes is held down on a device - a chord, two drum pads hit together, a key hit hard enough. The notes are the device's held notes, as <device>:getActiveNotes() gives them.

It fires on the change to the notes that makes them match, and not again until a change has made them stop matching. A chord held down fires once, however many other keys come and go meanwhile, and fires again the next time it is played. A trigger set while its notes are already held fires on the next change that still leaves them matching.

The options, all optional:


`device`	a Device, or a device id (0 .. 62): only that device's notes. Left out, every device of the preset, each on its own
`exact`	`true`: these notes and no others. Left out, at least these notes - others may be held too
`anyOctave`	`true`: notes by name, so a C is any C. `{ 60, 64, 67 }` then matches C, E and G in any octave and any inversion
`anyKey`	`true`: the same shape on any root. `{ 60, 64, 67 }` then matches any major triad in root position; with `anyOctave` too, any major triad at all
`minVelocity`, `maxVelocity`	every note of the match has to have been pressed within this range (0 .. 127). Default 0 and 127; a minimum above the maximum raises
`within`	milliseconds (0 .. 60000): the notes of the match have to have been pressed at most this far apart - struck together, not one after another
`once`	`true`: the trigger is removed once it has fired
`onRelease`	`function(device, notes)`, run when a match ends - the change that makes the notes stop matching

The function is handed the device, its notes, and the match:


`notes`	the held notes that make the match, lowest first
`root`	the held note playing the first note of `notes` - the chord's root, when that is the note listed first
`transpose`	how many semitones the notes had to be moved to match: 0 unless `anyKey`, and 0 to 11 with `anyOctave`
`velocity`	the average velocity of the notes of the match
`spread`	milliseconds between the first and the last press of the notes of the match

A preset may have thirty-two triggers set at once; whenNotes() raises when there is no room for another. A trigger whose function raises an error is removed, as a repeating scheduled function is. schedule.cancel() takes one back.

Triggers run the way <device>:onNotesChanged() does: on the application thread, a few milliseconds after the note that makes the match reaches the input, and while the preset runs - on the screen, or pinned behind another. A preset that is not pinned stops matching when you leave it, and starts again, with the same triggers, when you come back.

Parameters

notes

integer or array of integers, the note numbers (0 .. 127) to wait for, one to sixteen of them. Fractions raise.

callback

function(device, notes, match), what to run when they are held.

options

data table, optional, how to match (see below).

Returns

integer, a handle for schedule.cancel(). Note trigger handles start at 65536.

Example

lua

-- Ask for a patch a moment after the preset is ready
function preset.onReady ()
    schedule.after(200, patch.requestAll)
end

-- An LFO of its own, without touching timer.onTick. parameterMap.set() takes
-- an integer, so the float helpers.map() answers is floored.
local phase = 0

lfo = schedule.every(20, function ()
    phase = (phase + 1) % 100
    parameterMap.set(1, PT_CC7, 74,
                     math.floor(helpers.map(phase, 0, 99, 0, 127)))
end)

-- Send a value only once the knob has stopped moving. As a control's value
-- function this is called with (valueObject, value).
local pending

function onCutoff (valueObject, value)
    if pending then
        schedule.cancel(pending)
    end

    pending = schedule.after(150, midi.sendControlChange, PORT_1, 1, 74, value)
end

Example: reacting to chords and hits

lua

local keys = devices.get(1)
local pads = devices.get(2)

-- C major, and nothing else, on the keyboard.
schedule.whenNotes({ 60, 64, 67 }, function (device, notes, match)
    print("C major, velocity " .. match.velocity)
end, { device = keys, exact = true })

-- Any minor triad, in any inversion and octave: tell the arpeggiator its root.
schedule.whenNotes({ 60, 63, 67 }, function (device, notes, match)
    midi.sendControlChange(PORT_1, 16, 20, match.root % 12)
end, { device = keys, anyKey = true, anyOctave = true, exact = true })

-- Kick and snare, hit hard and together, on the pads: a crash cymbal.
schedule.whenNotes({ 36, 38 }, function (device, notes, match)
    midi.sendNoteOn(PORT_1, 10, 49, match.velocity)
end, { device = pads, minVelocity = 100, within = 30 })

-- Mute while the lowest C is held down, and unmute when it is let go.
schedule.whenNotes(24, function ()
    parameterMap.set(1, PT_CC7, 7, 0)
end, { device = keys, onRelease = function ()
    parameterMap.set(1, PT_CC7, 7, 100)
end })

Transport

The transport module works like the timer but does not generate its own tick. It follows MIDI real time and clock messages - from an instrument or a DAW on one of the inputs, or from the controller's own clock generator - so that a script can stay in sync with whatever else is playing.

There are three separate things here, and only the first needs transport.enable():

the callbacks, transport.onClock() and the rest, one for each real time message. They have to be switched on with transport.enable().
reading the clock - getBpm(), getSongPosition(), getStatus(), getClock() - which works whether or not any preset asked, because the controller measures every input's tempo all the time for the status bar.
sending a clock of the controller's own, at a tempo the preset sets.

Functions

transport.enable()

Registers this preset for the transport callbacks. From then on transport.onClock(), onStart(), onStop(), onContinue(), onSongSelect() and onSongPosition() are run as the matching MIDI messages arrive.

Two rules follow from how they are registered, and a script that does not know them looks broken:

Each callback has to be defined before transport.enable() runs. Only the functions that exist at that moment are registered; one defined later - inside preset.onLoad(), in a timer - is never called. Define them at the top level of the script and enable the transport in preset.onReady().
One preset at a time holds each callback. The first preset to ask gets it, and another preset asking for the same one is ignored until the first stops running. Leaving a preset without pinning it hands its callbacks back.

A transport that was playing and whose clock has since stopped arriving - for the couple of seconds after which an input counts as no longer clocking - reads "stop" too: a sequencer that is switched off or unplugged sends no Stop on its way out. One started ahead of its first clock plays, however long that clock takes.

It answers for the same input as getBpm(). With nothing clocking, it answers for the input that most recently sent a Start, a Continue or a Stop - a sequencer sends Start before its first clock. nil until some input has sent one of them.

Returns

string, "play", "continue" or "stop", or nil.

transport.atSongPosition(position, callback)

Runs a function when the song reaches a position - the way a sequencer fires what is on a step. The position is in MIDI beats, the unit getSongPosition() and a Song Position Pointer count in: sixteen to a bar of 4/4.

The function runs on the clock that plays that beat. The first clock after a Start plays beat 0, the first after a Continue plays the beat the song was put at, and every sixth clock after that plays the next one. It is handed the position, and it runs every time the song gets there - after a Song Position Pointer sends the song back, or a Start begins it again. Only while the transport runs: a stopped song reaches nothing, however much clock keeps arriving. And only the clock getClock() answers for counts, so pin it with setClockSource() when more than one input is clocking.

There is one function per position: setting another replaces it, and nil removes it. A function that removes its own position runs once. None of this needs transport.enable().

Cues belong to the preset, and fire while it runs: while it is on the screen, and also while it is pinned and another preset is showing. A preset that is not pinned stops hearing them when you leave it, and has them again when you come back - unlike the transport callbacks, cues are kept in the preset's own state and are found again by themselves.

It runs on the controller's application thread, a few milliseconds after the clock that plays its beat reaches the input. To send something exactly on a later beat, work out when it falls from getBpm() and hand it to midi.at().

Parameters

position

integer, the song position in MIDI beats, 0 to 16383. Outside that range it raises.

callback

function(position), called with the position when the song gets there. nil removes the one on that position.

transport.getClock()

Everything about the input that "the clock" means:


`interface`	the MIDI interface the clock is arriving on; absent for the controller's own clock
`port`	the port on it; absent for the controller's own clock
`internal`	`true` when it is the controller's own clock - see The controller's own clock below; absent otherwise
`bpm`	the tempo, `0` until a whole beat has been measured
`isRunning`	a start or continue arrived and no stop since
`ticks`	clocks counted since that start
`songPosition`	where the song is, in MIDI beats, as `getSongPosition()` counts it; absent until the input has sent a start, continue or song position pointer
`status`	`"play"`, `"continue"` or `"stop"`, as `getStatus()` says it for this input; absent until the input has sent a start, continue or stop

isRunning is a separate question from whether the input is clocking: plenty of instruments send clock continuously with the sequencer stopped.

Returns

data table, the clock being followed, or nil when nothing is clocking.

transport.getClocks()

Every input carrying clock, in the shape getClock() uses. Empty when the desk is quiet. An input drops off the list a couple of seconds after it stops sending.

Returns

data table, an array with one table per input that is currently clocking.

transport.isClockRunning()

Whether the transport of the input being followed is running - a start or a continue with no stop since. False when nothing is clocking at all.

Returns

boolean, true when the clock being followed is running.

transport.setClockSource(interface[, port])

Pins which input getBpm() and getClock() answer for. The arguments are not checked: an interface or port that never clocks simply means nothing is ever pinned to.

Left unpinned, the controller chooses: the input that most recently had its transport started, because pressing play is the clearest statement of which clock is being played; failing that, the one that ticked most recently. A pinned input that has gone quiet is not a way to have no clock - the choice falls back rather than the answer disappearing.

Parameters

interface

enum, the MIDI interface to follow [MIDI_IO, USB_DEV, USB_HOST].

port

number, the port on it. Default 0 (PORT_1).

transport.clearClockSource()

Goes back to letting the controller choose.

transport.getClockSource()

What setClockSource() was given, if anything.

Returns

data table of { interface, port }, or nil when nothing is pinned.

Example

lua

-- Show the incoming tempo on a control, once a second. The preset needs a
-- control named by id 220; a name is text, so it is set on the control
-- rather than pushed through the parameter map.
function preset.onReady ()
    timer.setPeriod(1000)
    timer.enable()
end

function timer.onTick (ticks)
    local bpm = transport.getBpm()

    controls.get(220):setName(bpm and string.format("%.1f BPM", bpm) or "--")
end

-- Follow whichever instrument is playing, and say when it stops. onStop has
-- to exist before transport.enable() runs, so define it at the top level.
function transport.onStop (midiInput)
    print("stopped; last tempo was " .. tostring(transport.getBpm()))
end

transport.enable()

-- Light a pad while the song plays, whether it was started or continued.
function showTransport ()
    local status = transport.getStatus()

    parameterMap.set(1, PT_VIRTUAL, 2,
                     (status == "play" or status == "continue") and 127 or 0)
end

-- Bar and beat of the song, in 4/4: sixteen MIDI beats to a bar.
function showPosition ()
    local position = transport.getSongPosition()

    if position then
        local bar = position // 16 + 1
        local beat = (position % 16) // 4 + 1

        print(string.format("bar %d, beat %d", bar, beat))
    end
end

-- A crash cymbal on the first beat of every fourth bar from bar 5.
for bar = 5, 33, 4 do
    transport.atSongPosition((bar - 1) * 16, function (position)
        midi.sendNoteOn(PORT_1, 10, 49, 110)
    end)
end

The controller's own clock

The controller can also send a MIDI clock: twenty-four clocks to the quarter note, at a tempo a preset sets, to the outputs it names. There is one such clock for the whole controller, not one per preset, and it belongs to the preset that started it - see Whose clock it is.

It is generated by the controller's highest priority thread, not by Lua and not by the thread that builds pages, so it keeps time while the screen is busy or a script is working. Each clock lands on the millisecond it falls in, and the error does not add up: a minute at 120 BPM is exactly 2880 clocks. On a MIDI output a clock goes ahead of anything queued there, SysEx included, so a long dump does not hold it up.

Once enabled it clocks continuously, stopped or playing, as most hardware sequencers do, so a receiver can lock to the tempo before it is asked to play. Start, Continue and Stop go out immediately before a clock, so the clock after a Start is the first clock of the song.

Another clock wins

While a clock is arriving on any input the controller follows that one, and its own sends nothing: transport.isClockAvailable() says false. It carries on by itself a couple of seconds after the input goes quiet.

Whose clock it is

The clock belongs to the preset whose script last called transport.enableClock(), startClock(), continueClock() or setClockOutputs(). It lasts as long as that preset runs, and ends when the preset:

is removed from its slot,
is replaced - another preset uploaded into the slot, or a new script into the preset,
is reloaded,
is left for another preset slot, unless it is pinned. A pinned preset keeps running in the background, and keeps its clock,
is unpinned while it runs in the background.

Ending it sends a Stop if the song was playing, then no more clocks: the clock is disabled, sends to no outputs and is back at 120 BPM, as if nothing had ever set it. A reloaded script starts from the top, so one that enables the clock as it loads has it again straight away. Coming back to a preset that was left does not run its script again; to have the clock back then, enable it in preset.onEnter().

Loading, removing, reloading or leaving any other preset leaves the clock alone. If a second preset enables or starts the clock while another owns it, the clock becomes the second preset's - the last one to ask wins - and the first one ending no longer affects it. setTempo() and the calls that stop or disable it take nothing over.

While it is the clock being sent, it is the clock the controller follows: getBpm(), getClock(), getStatus() and getSongPosition() answer for it, the status bar shows its beat beside the outputs it is sent to, a capture recorded meanwhile is written at its tempo, and atSongPosition() cues fire on its beats. The transport callbacks - transport.onClock(), onStart(), onStop() and onContinue() - run for it too, with the enabled transport, and are handed { internal = true } instead of an interface and a port. midi.onClock(), midi.onStart() and the other midi.* callbacks are about what arrives on an input, and do not hear it.

transport.setTempo(bpm)

Sets the tempo of the controller's own clock. It applies from the next clock: nothing that has already been played moves. The controller starts at 120.

A tempo outside the range is not an error - it is clamped - so read it back with transport.getTempo() if the number came from somewhere uncertain.

Parameters

bpm

number, the tempo in BPM. Silently clamped to 20 .. 400. Fractions are kept to a thousandth.

transport.getTempo()

The tempo the controller's own clock is set to, whether or not it is running.

Returns

number, the tempo in BPM.

transport.setClockOutputs(outputs)

Where the controller's own clock is sent. Replaces whatever was set before, and makes the clock this preset's.

interface is required and is one of MIDI_IO, USB_DEV, USB_HOST or ALL_INTERFACES; port is PORT_1, PORT_2 or PORT_CTRL and defaults to PORT_1. An entry that is not a table, or that names an interface or port outside those, raises.

Parameters

outputs

data table, an array of { interface, port } tables. ALL_INTERFACES names every interface of that port. An empty array sends the clock nowhere.

transport.getClockOutputs()

Where the controller's own clock is being sent, one table per interface and port.

Returns

data table, an array of { interface, port } tables.

transport.enableClock()

Starts sending clocks, and makes the clock this preset's. The transport stays stopped until startClock().

transport.disableClock()

Stops sending clocks. getBpm() no longer answers for this clock. It does not change who owns the clock.

transport.isClockEnabled()

Whether the controller's own clock is switched on - which is not the same as being sent: see isClockAvailable().

Returns

boolean, true when enableClock() was called and disableClock() has not been since.

transport.isClockAvailable()

Whether the controller's own clock can be sent. It cannot while another clock is coming in.

Returns

boolean, false while a clock is arriving on an input.

transport.startClock()

Sends a Start before the next clock: the song begins at its top. Makes the clock this preset's.

transport.stopClock()

Sends a Stop before the next clock. The clocks carry on.

transport.continueClock()

Sends a Continue before the next clock: the song plays on from where it was. Makes the clock this preset's.

Example

lua

-- Clock a drum machine on MIDI 1 and a DAW on USB, at 128 BPM.
function preset.onReady ()
    transport.setClockOutputs({
        { interface = MIDI_IO, port = PORT_1 },
        { interface = USB_DEV, port = PORT_1 },
    })
    transport.setTempo(128)
    transport.enableClock()
end

-- A pad that starts and stops the song.
function onPlayPad (valueObject, value)
    if not transport.isClockAvailable() then
        info.setText("Following an external clock")
    elseif value > 0 then
        transport.startClock()
    else
        transport.stopClock()
    end
end

-- A knob for the tempo.
function onTempo (valueObject, value)
    transport.setTempo(60 + value)
end

transport.onSongPosition(midiInput, position)

A user-defined callback function to handle Song Position Pointer MIDI messages.

transport.getSongPosition() keeps the same number up to date between messages, so a script that only needs to know where the song is does not have to follow this.

Parameters

midiInput

data table, where the message came from (see below).

position

integer, MIDI beats from the start of the song (0 .. 16383).

Example

lua

-- Every transport callback has to be defined before transport.enable() runs,
-- so they are defined here, at the top level, and the transport is enabled in
-- preset.onReady().

faderValue = 0

function transport.onClock (midiInput)
    parameterMap.set(1, PT_CC7, 1, faderValue)
    faderValue = (faderValue + 1) % 128
end

function transport.onStart (midiInput)
    print("Start")
end

function transport.onStop (midiInput)
    print("Stop")
end

function transport.onContinue (midiInput)
    print("Continue")
end

function transport.onSongSelect (midiInput, songNumber)
    print("Song select " .. songNumber)
end

function transport.onSongPosition (midiInput, position)
    print("Song position " .. position)
end

function preset.onReady ()
    transport.enable()
    print("Transport enabled: " .. (transport.isEnabled() and "yes" or "no"))
end

MIDI input data table

For the fields it carries, see the midiInput data table.

lua

midiInput = {
  interface = USB_DEV,  -- a numeric MIDI interface identifier
  port = 0              -- a numeric port identifier
}

The controller's own clock arrives on no socket, so its callbacks are handed { internal = true } instead - with no interface and no port.

Data Pipe

Data pipes let presets share numbers with each other. A pipe is a named channel: one preset acquires it and sends a stream of numbers into it, and any other preset can subscribe to it and be called with each one.

This is useful when you want different presets to work together. An LFO preset can send out modulation values continuously, and another preset can receive that stream and use it to move its own controls - without either preset knowing anything about the other beyond the pipe's name.

Sixteen pipes exist for the whole controller, numbered 1 to 16, and sixteen subscriptions. A pipe belongs to the preset that acquired it and is handed back when that preset's script is closed - when the preset is removed, replaced, reloaded or overwritten - so a preset does not have to release its pipes to be tidy.

A pipe carries numbers only, one at a time: a subscriber's function is called with the value and nothing else. Values are dispatched on the data pipe thread and handed to the subscriber on the application thread, so a subscriber never delays the sender.

Pipes are named by bank and slot, counted from 1

pipe.subscribe() and pipe.unsubscribe() take an optional bank and slot to name another preset's pipe. Both count from 1, as banks and slots do in the snapshots and captures modules: bank 1 slot 1 is the first preset. A bank or slot the instrument does not have raises invalid bank or invalid slot. Firmware before October 2026 counted them from 0 and did not check them.

Functions

Returns

integer, how many of the sixteen channels are still free.

pipe.subscribe([bank, slot,] pipeName, callback)

Listens to a pipe. The callback is run on the application thread, once per value sent, and may do anything a timer callback may.

Subscribing again under the same name replaces the previous callback rather than adding a second one. Raises when all sixteen subscriptions are in use, and when the name is empty or too long.

A subscription may be made before the pipe exists: it starts delivering when the owner acquires it. A callback that raises is logged at most once every two seconds and stays subscribed. A subscription lasts as long as the script that made it, and goes on receiving while its preset is not the one on the screen.

Sixty-four values are held between the sender and the subscribers, and at most eight are handed over on one pass of the run loop. A subscriber that cannot keep up costs dropped values, and a line in the log.

Parameters

bank

integer, optional, the preset bank of the pipe owner, 1 .. 6 on an mk2, 1 .. 5 on a Mini. Left out, this preset's own pipe.

slot

integer, optional, the preset slot in that bank, 1 .. 12 on an mk2, 1 .. 8 on a Mini.

pipeName

string, the name the owner gave the pipe, 1 to 20 characters.

callback

function(value), called with each number sent to the pipe.

pipe.unsubscribe([bank, slot,] pipeName)

Stops listening. False when this script was not subscribed to that pipe.

Parameters

bank

integer, optional, the preset bank of the pipe owner, 1 .. 6 on an mk2, 1 .. 5 on a Mini.

slot

integer, optional, the preset slot in that bank, 1 .. 12 on an mk2, 1 .. 8 on a Mini.

pipeName

string, the name of the pipe.

Returns

boolean, true when a subscription was removed.

Example: an LFO preset and a preset that follows it

lua

-- The sender, in bank 1 slot 1.

local lfo
local phase = 0

function preset.onReady ()
    lfo = pipe.acquire("lfo")

    timer.setPeriod(20)
    timer.enable()
end

function timer.onTick (ticks)
    phase = (phase + ticks) % 100
    pipe.send(lfo, phase / 100)     -- 0.0 to 1.0
end

lua

-- The receiver, in any other preset. It moves CC 74 of its own device 1 with
-- whatever the LFO preset sends.

function preset.onReady ()
    pipe.subscribe(1, 1, "lfo", function (value)
        parameterMap.set(1, PT_CC7, 74, math.floor(value * 127 + 0.5))
    end)
end

Snapshots

The snapshots module gives a preset script the same control over stored snapshots that the snapshot window gives the user: it can recall them, save them, rename and recolour them, move them between slots, morph a pair of them, and name the banks they live in.

Snapshots belong to a project, and a script only ever sees the snapshots of the project its own preset belongs to. There is no way to reach another project's snapshots, and no projectId argument anywhere in the module.

Note

Banks and slots are numbered from 1, like pages and preset slots elsewhere in the Lua API — bank 1 is the first bank, slot 1 the first slot. The web editor and the SysEx protocol count them from 0, so a bank that reads as 0 in a SysEx call is bank 1 here.

How many there are differs between the models:

	banks	slots per bank
Electra One mk2	12	36
Electra One Mini	8	8

A bank or slot outside the range raises invalid bankNumber or invalid slot, so ask snapshots.getBankCount() and snapshots.getSlotCount() rather than writing the numbers into a script that has to run on both.

Reads happen now, writes happen soon

The two halves of this module behave differently, and a script that assumes otherwise will read stale data:

Reads — get, getSlots, isUsed, getBanks, getBankName, getBankNameOrNil, getCurrentBank, getBankCount, getSlotCount — answer immediately.
Writes — everything else — are put on the controller's command queue and run a moment later, on the thread that owns the SD card. They return nothing, and they cannot report failure.

So a read taken straight after a write still describes the old state:

lua

snapshots.update(1, 1, { name = "Verse" })
print(snapshots.get(1, 1).name)   -- still the old name

This is not a quirk to work around; it is what keeps a script from stalling the user interface while the card is written.

Note

Reads query the database on the application thread, which is where every preset callback runs, the MIDI callbacks included. A read is a card access and holds that thread for its duration, so a read inside a callback that fires often, such as midi.onControlChange() or transport.onClock(), slows the whole instrument. Read once and keep the result instead.

Functions

snapshots.get(bank, slot)

Reads one snapshot. See the snapshot data table for the fields it carries.

Parameters

bank

integer, a bank number (1 .. snapshots.getBankCount()).

slot

integer, a slot number (1 .. snapshots.getSlotCount()).

Returns

data table, a snapshot data table, or nil when the slot is empty.

snapshots.getSlots([bank])

Reads every snapshot stored in a bank. The result is keyed by slot number rather than packed into a list, so an empty slot is simply absent and #result is not meaningful — walk it with pairs().

Leave the argument out to read the current bank. Passing nil explicitly is not the same thing: it raises.

Parameters

bank

integer, an optional bank number. Left out, the current bank.

Returns

data table, snapshot data tables keyed by slot number.

snapshots.isUsed(bank, slot)

Tells whether a slot is taken, without reading the snapshot itself.

Parameters

bank

bank

integer, a bank number.

slot

integer, a slot number.

name

string, an optional name of up to 20 characters. Left out or nil, the controller generates one.

colour

integer, an optional colour — one of the predefined ones in Globals, or a 0xRRGGBB value. Left out or nil, the slot keeps the default colour.

snapshots.update(bank, slot, changes)

Renames or recolours a stored snapshot without touching the values it holds. A field the table does not mention keeps the value it had, so { colour = RED } recolours a snapshot and leaves its name alone. An empty table is not an error; it changes nothing.

Parameters

bank

integer, a bank number.

slot

integer, a slot number.

changes

bank

integer, a bank number.

snapshots.sendAllValues()

Sends the current value of every control to its device, without recalling anything. The same action the SNAPSHOT window's send all performs.

snapshots.onLoad(bank, slot)

A callback the script defines, not a function it calls. The controller calls it after a snapshot has been recalled, whichever way it was recalled - the SNAPSHOT window, the web editor, a program change on the CTRL port or snapshots.load() - once the recalled values are in the parameter map and have been sent. A value function only runs for a value the recall moved; this runs for every recall, which is what a script needs when it has to do something once per recall whatever the values turned out to be - send each synth its program again, say.

It is not called for a morph, nor when the SNAPSHOT window's compare puts the values it set aside back.

Parameters

bank

integer, the bank the recalled snapshot is in.

slot

integer, its slot.

Example: sending every program again after a recall

lua

function snapshots.onLoad(bank, slot)
    for zone = 1, #zones do
        sendProgram(zone)
    end
end

snapshots.morph(bank, slotA, slotB, balance [, randomize])

Blends two snapshots and sends the result. Both snapshots have to be in the same bank. They are read off the card the first time a pair is used and kept afterwards, so a stream of morph calls does not re-read them. If either slot is empty, nothing is loaded and the morph does nothing.

Only the parameters both snapshots hold a value for are moved. Morphing is a send, not a recall: nothing is written to the card, and the snapshots themselves are unchanged. It does write the live parameter map, though, with the origin INTERNAL, so every parameter it moves fires parameterMap.onChange. A morph driven from a knob makes a stream of those calls; keep that callback short, or leave it out. The morph slider in the snapshot window counts its balance 0 to 100, which is the range this takes as well.

Parameters

bank

integer, the bank both snapshots live in.

slotA

integer, the slot to morph from.

slotB

integer, the slot to morph to.

balance

integer, 0 for all of slotA, 100 for all of slotB. Values up to 127 are accepted but carry the blend past slotB; below 0 or above 127 raises.

randomize

boolean, optional. When true, the values take a random walk between the two snapshots instead of a straight interpolation. Defaults to false.

snapshots.setBankName(bank, name)

Names a snapshot bank. Snapshot banks and capture banks are named separately, so this does not affect captures.getBankName() for the same bank number.

Parameters

bank

integer, a bank number.

name

string, a name of up to 20 characters. An empty string puts the bank back to its default name.

snapshots.clearBankName(bank)

Puts one bank back to its default name.

Parameters

bank

integer, a bank number.

snapshots.clearBankNames()

Puts every snapshot bank of the project back to its default name.

Example: recalling a snapshot by name

lua

-- Finds a snapshot by name anywhere in a bank and recalls it.

function recallByName (bank, wanted)
    for slot, snapshot in pairs(snapshots.getSlots(bank)) do
        if snapshot.name == wanted then
            snapshots.load(bank, slot)
            return (true)
        end
    end

    return (false)
end

Example: labelling the banks a performance uses

lua

-- Run once, when the preset comes up. onReady is the right hook for this:
-- anything set in onLoad is undone before it becomes visible.

function preset.onReady ()
    snapshots.setBankName(1, "Intro")
    snapshots.setBankName(2, "Verse")
    snapshots.setBankName(3, "Chorus")
end

Example: morphing between two snapshots

lua

-- A fader that morphs slot 1 into slot 2, and a timer that sweeps the same
-- morph on its own.
--
-- Assign morphFader as the Function of a fader's value. The fader's own MIDI
-- message should be set to "none" so that it only drives the morph. A value
-- function is called with (valueObject, value), and the value is the fader's
-- display value - 0 to 127 for a fader left at its default range, which is
-- scaled here to the 0 to 100 a morph balance counts in.

local bank = 1
local slotA, slotB = 1, 2

function morphFader (valueObject, value)
    snapshots.morph(bank, slotA, slotB, math.floor(value * 100 / 127))
end

-- The same sweep, driven by the timer: four seconds there and back.

local balance = 0
local direction = 1

function startSweep ()
    timer.setPeriod(20)      -- fifty steps a second
    timer.enable()
end

function timer.onTick (ticks)
    balance = balance + direction * ticks

    if balance >= 100 then
        balance, direction = 100, -1
    elseif balance <= 0 then
        balance, direction = 0, 1
    end

    snapshots.morph(bank, slotA, slotB, balance)
end

Example: a housekeeping pass over a bank

lua

-- Colours the first half of a bank blue and the second half green, and
-- reports how many slots are in use.

function tidyBank (bank)
    local used = 0

    for slot, snapshot in pairs(snapshots.getSlots(bank)) do
        used = used + 1

        if slot <= snapshots.getSlotCount() / 2 then
            snapshots.update(bank, slot, { colour = BLUE })
        else
            snapshots.update(bank, slot, { colour = GREEN })
        end
    end

    print("snapshots in bank " .. snapshots.getBankName(bank) .. ": " .. used)
end

Captures

The captures module gives a preset script control over stored captures — the MIDI recordings the CAPTURES window holds. It can play and stop them, arm a slot for recording, change what a capture plays back through and how, move captures between slots, and name the banks they live in.

Everything the snapshots module says about numbering and timing holds here too, and is worth reading first: banks and slots count from 1, reads answer immediately, and writes are queued and take effect a moment later. Captures belong to the current project, and no other project's captures are reachable.

Captures share the snapshots' geometry — 12 banks of 36 slots on an mk2, 8 of 8 on a Mini — and a bank is also laid out in rows, which is what the row notes on the CTRL port and captures.playRow() address:

	banks	slots per bank	rows	slots per row
Electra One mk2	12	36	6	6
Electra One Mini	8	8	2	4

Up to eight captures play at once.

The calls that ask what is playing — captures.isPlaying(), getPlaying(), getPlayingSlots(), isArmed(), isRecording() — answer from memory rather than from the database, so they are safe to call from anywhere, a MIDI callback included. getPlaying() and getPlayingSlots() are not filtered by project: they answer for whatever the controller is playing.

What a playing capture tells the presets

Everything a capture plays goes out to its destination, and is then handed back to the presets as if that destination had answered with it. A preset's controls follow a capture the way they follow a synth: a control change moves its control, a SysEx message is matched against the devices' SysEx messages and patch responses, and a patch dump in a capture updates every control its rules name - running patch.onResponse() as a dump from the synth does. The MIDI callbacks are called too, with midiInput.playback set.

Playback is never taken for MIDI input. It is not forwarded by the router, not recorded into another capture, not counted as clock, transport or held notes, and does not reach the remote knobs, MIDI control, the CTRL port services or MIDI learn. It is handed over on the application thread, after it has gone down the wire, so parsing a dump or running a script never delays what a capture sends or what arrives on a socket.

A looping capture hands its messages over on every pass, so a patch dump in it sets the controls back to the dump each time round.

Functions

captures.get(bank, slot)

Reads one capture. See the capture data table for the fields it carries.

Parameters

bank

integer, a bank number (1 .. captures.getBankCount()).

slot

integer, a slot number (1 .. captures.getSlotCount()).

Returns

data table, a capture data table, or nil when the slot is empty.

captures.getSlots([bank])

Reads every capture stored in a bank, keyed by slot number. Empty slots are absent, so walk the result with pairs(). As with the snapshots, leave the argument out rather than passing nil, which raises.

Parameters

bank

integer, an optional bank number. Left out, the current bank.

Returns

data table, capture data tables keyed by slot number.

captures.isUsed(bank, slot)

Tells whether a slot is taken, without reading the capture itself.

Parameters

bank

Two things count as looping here: a capture whose loop is set, and one given a play range with captures.setPlayRange(). So playing a slot that already has a range and is already going stops it. A looping capture that is still waiting for its bar line restarts instead.

Parameters

bank

integer, an optional bank number. Left out, the current bank is used and the only argument is the slot.

slot

integer, a slot number.

captures.play(bank, slots [, record])

Plays a set of one bank's captures together. Every one of them begins on the same instant, restarted if it was already going; empty slots are skipped. With record true and a slot armed, the recording's clock starts on that instant too, so a take played over the set lines up with it exactly - and when it is stopped, it is ended on the nearest whole number of bars (at least one) and saved as a loop, so it stays in step with the set from then on. The bar is the launch quantum, in the tempo of the capture playing longest.

Launched on the next bar line of whatever keeps playing outside the set, like captures.play(bank, slot).

lua

-- the first three slots of bank 1, in step, and a new take alongside
captures.arm(1, 4, true)
captures.play(1, { 1, 2, 3 }, true)

Parameters

bank

integer, a bank number.

slots

table, an array of slot numbers.

record

boolean, optional: start the armed take on the same instant.

captures.playRow(bank, row [, record])

captures.play() for every slot of one row of the captures window - what the row notes on the CTRL port do (see the MIDI implementation).

Parameters

bank

integer, a bank number.

row

integer, a row of the captures window (1 .. captures.getRowCount()).

record

boolean, optional: start the armed take on the same instant.

captures.setLaunchQuantize(beats)

Sets the grid a capture started alongside others is launched on, in quarter notes of the capture that has been playing longest. 4 - one bar - unless changed. With 0 a capture starts the moment it is asked for, whatever else is playing. The first capture, with nothing else playing, always starts at once.

Parameters

beats

integer, quarter notes (0 .. 64). 0 launches at once.

captures.getLaunchQuantize()

Returns

integer, the launch grid in quarter notes; 0 for none.

captures.getRowCount()

Returns

integer, rows in one capture bank - 6 on an mk2, 2 on a Mini.

captures.getSlotsPerRow()

Returns

integer, slots in one row - 6 on an mk2, 4 on a Mini.

captures.stop([bank, slot])

Stops every capture, or with a bank and slot just that one, leaving the others going. Doing nothing when nothing is playing is not an error.

Parameters

bank

integer, optional: a bank number.

slot

integer, optional: a slot number.

captures.isPlaying([bank, slot])

Tells whether a capture is playing - any at all, or with a bank and slot that one. A capture waiting for its bar line counts as playing. Answers from memory, so it is safe to call from anywhere, including a MIDI callback.

It needs both arguments to ask about one capture. Called with a single argument it ignores it and answers for any capture at all.

Parameters

bank

integer, optional: a bank number.

slot

integer, optional: a slot number.

Returns

boolean, true while any capture is playing, or the one named.

captures.getPlayingSlots()

Every capture playing or waiting for its bar line. captures.getPlaying() answers the first of these two values at a time.

Returns

table, an array of { bank, slot } tables, the capture playing longest first.

captures.record()

What the RECORD button does: starts the armed take's clock now, and from then on the button stops it. The silence before the first message is part of the take. Nothing happens when no slot is armed or the take is already running.

captures.getPlaying()

Says which capture is playing. Worth asking when captures loop, because the answer outlives the tap that started it.

With several captures playing it answers for the one that has been playing longest; captures.getPlayingSlots() lists them all. Pairing it with captures.stop() to make a toggle stops everything: use captures.isPlaying(bank, slot) and captures.stop(bank, slot) for one capture.

Returns

integer, integer — the bank and slot being played, or nil when nothing is playing.

captures.transposeTo(note)

Plays captures at the given note instead of their own root note. What is kept is the note, not the shift it works out to, so it carries to the next capture triggered and is measured against that capture's root note. Asking for a capture's own root note is asking for no transposition at all.

Parameters

note

integer, a note number (0 .. 127).

captures.setPlayRange(bank, slot [, from [, to]])

Sets where a capture plays from, and the stretch of it that loops.

Playing begins at from rather than at the top. The tempo set before it is taken on the way, while the notes and controllers before it are not sent, so a note that begins before from is not heard.

With to past from the capture comes round from to to from, whether or not the capture itself is set to loop. It comes round on the instant to falls due, and a note still sounding there is released. When to is left out, or equals from, there is no range: the capture plays from from to its end and, if it loops, comes round to the top.

captures.setPlayRange(bank, slot) with no beats plays the slot whole again.

The range belongs to the slot, not to the script. It takes effect at once on a capture that is playing: a to moved behind the playhead comes round straight away, and anything else when the playhead gets there. It then applies every time the slot is played, by a script, a pad or a row note, until it is set again. It is kept until the controller is switched off and is never saved with the capture. Unlike most writes it is applied immediately rather than queued, so it is in force for a captures.play() that follows it or comes before it in the same callback.

lua

-- Beats five to eight of bank 1 slot 1, round and round
captures.setPlayRange(1, 1, 4, 8)
captures.play(1, 1)

A slot with a range counts as looping, so the play() above stops the capture if it was already playing. Set the range on its own to change the loop of a capture that is going.

Parameters

bank

integer, a bank number.

boolean, optional: wait for captures.record() or for a set played with record, rather than for the first message.

captures.disarm()

Disarms the armed slot. A recording already under way is finished and saved.

captures.isArmed()

Tells whether a slot is waiting to record.

Returns

boolean, true when a slot is armed for recording.

captures.getArmed()

Says which slot is armed.

Returns

integer, integer — the armed bank and slot, or nil when nothing is armed.

captures.isRecording()

Tells whether a recording is actually running, which is not the same as being armed: an armed slot records nothing until MIDI arrives.

Returns

boolean, true while messages are being recorded.

captures.update(bank, slot, changes)

Changes a stored capture without touching the recording itself. A field the table does not mention keeps the value it had, so { loop = true } sets a capture looping and leaves its name, port and root note alone.

captures.update(properties) — one table, no bank and slot — is a different call: it changes the capture open for writing.

Parameters

bank

integer, a bank number.

slot

integer, a slot number.

changes

bank

integer, a bank number.

captures.setBankName(bank, name)

Names a capture bank. Capture banks and snapshot banks are named separately.

Parameters

bank

integer, a bank number.

name

string, a name of up to 20 characters. An empty string puts the bank back to its default name.

captures.clearBankName(bank)

Puts one bank back to its default name.

Parameters

bank

integer, a bank number.

captures.clearBankNames()

Puts every capture bank of the project back to its default name.

Example: a pad that plays and stops

lua

-- Assign this as the Function of a pad's value. Tapping the pad starts the
-- capture; tapping it again while that same capture plays stops it.

function playPad (valueObject, value)
    local slot = 1
    local bank = captures.getCurrentBank()

    -- isPlaying(bank, slot) and stop(bank, slot), not getPlaying() and
    -- stop(): with several captures going, getPlaying() answers for the one
    -- playing longest and stop() with no arguments stops all of them.
    if captures.isPlaying(bank, slot) then
        captures.stop(bank, slot)
    else
        captures.play(bank, slot)
    end
end

Example: making a whole bank loop

lua

-- Sets every capture in a bank looping and in sync with incoming clock.

function loopBank (bank)
    for slot in pairs(captures.getSlots(bank)) do
        captures.update(bank, slot, { loop = true, syncToClock = true })
    end
end

Example: recording a take

lua

-- Finds the first empty slot of the current bank, arms it, and records into
-- it until the same pad is tapped again.
--
-- captures.arm() does not record: the take starts when MIDI arrives at the
-- armed slot. captures.disarm() is what ends a recording and writes it - not
-- captures.stop(), which is about playback.

local armed = nil

function firstFreeSlot (bank)
    for slot = 1, captures.getSlotCount() do
        if not captures.isUsed(bank, slot) then
            return (slot)
        end
    end

    return (nil)
end

-- Assign this as the Function of a pad's value.
function recordPad (valueObject, value)
    if captures.isArmed() then
        captures.disarm()          -- ends and saves anything recorded
        info.setText("Take saved")
        armed = nil
        return
    end

    local bank = captures.getCurrentBank()
    local slot = firstFreeSlot(bank)

    if not slot then
        info.setText("No free capture slot")
        return
    end

    armed = slot
    captures.arm(bank, slot)
    info.setText("Armed slot " .. slot)
end

-- A tidier take: arm the slot, then start its clock on an instant of your
-- choosing rather than on the first note.
function recordInTime (bank, slot)
    captures.arm(bank, slot, true)   -- wait for record()
    captures.record()                -- the take's clock starts now
end

Editing a capture

A capture is no longer only something the instrument recorded. A script can open a slot, write events into it, read them back, change them and close it again - which is what turns a preset into a sequencer or an editor.

One slot is open at a time, and while it is open every midi.send* addressed to the CAPTURE interface is written into its track instead of going out of a socket:

lua

captures.open(1, 3, { name = "Verse", tempo = 120, length = 16 })

captures.seek(0)                                   -- quarter notes from the head
midi.sendNoteOn(CAPTURE, PORT_1, 1, 60, 100)
captures.seek(0.5)
midi.sendNoteOff(CAPTURE, PORT_1, 1, 60, 0)

captures.addNote(10, 36, 120, 0.25, 1)             -- or a note in one call

captures.close()                                   -- written to the card
captures.play(1, 3)

CAPTURE is deliberately not part of ALL_INTERFACES: sending to every interface never writes to a file. A send to a real socket works exactly as it always did while a capture is open, so a script can write a note and play it, which is how a step entered on a screen is heard as it goes in.

Editing what is playing. The open slot plays what is being edited, saved or not. captures.play() on it takes the track as it is in the editor, and every change made while it plays is heard at once, without restarting it:

a note added ahead of the playhead is played when the playhead gets there
a note removed while it is sounding stops, and one removed ahead of the playhead is not played
a note lengthened or shortened while it sounds ends where it now ends
a tempo change is taken up from the playhead
a track shortened to end before the playhead comes round at once

Nothing already played is played again, and a note added so that it would already have started is not started half way through. Several changes made in one callback are handed to the player together. Saving is only needed to keep the track on the card.

All sixteen MIDI channels live in the one capture, as they do in any MIDI file. There are no tracks to think about - a note carries the channel it was written on.

Positions are quarter notes from the head of the track, fractional, so 0.25 is a sixteenth note. captures.seekTicks() and captures.getTicksPerQuarter() are there for exact work, and captures.seekSongPosition() counts in the MIDI beats - sixteenths - transport.getSongPosition() and transport.atSongPosition() use, so a cue and an event can be lined up without any arithmetic.

The write position does not move by itself: two sends after one seek() land on the same instant, which is how a chord is written.

open(), save() and close() touch the card and answer at once rather than being queued like the rest of this module - a script cannot write its first event until the open has happened, and a failed save has to be reportable. They are not for a timer or a MIDI callback: a card write takes long enough to be felt.

Everything else here needs a capture to be open. captures.open(), captures.cancel() and captures.isOpen() may be called at any time; every other function in this section raises no capture is open for writing when nothing is - captures.get() with no arguments and captures.update() with one table included.

The open slot is shared by the whole controller

There is one editor, not one per preset: another script, or a lua exec typed by hand, can take it away. A preset that keeps a capture open across its life has to survive losing it - check captures.isOpen(), or open the slot again, at the top of every handler that edits. A script's open slot is also released when its preset is removed, replaced or reloaded.

A track holds at most 16384 events, which is as much as a MIDI file this firmware can load. captures.addNote() and captures.addEvent() answer nil and a message when it is full.

captures.open(bank, slot [, properties])

Opens a slot for writing and reading. A slot with a capture in it is read off the card, so a recorded take can be edited. Any slot already open is closed without being saved - a script that means to keep its work says so first. Refused, with nil and a message, while that slot is armed for recording or when the file cannot be read.

An empty slot starts an empty track with the defaults a new capture has: 120 BPM, 4/4, 960 ticks to the quarter note, a generated name, loop = true, syncToClock = false, rootNote = 60, and a destination of USB_DEV on PORT_1. Pass a property table to change any of them as it opens.

Parameters

bank

integer, a bank number (1 .. captures.getBankCount()).

slot

integer, a slot number (1 .. captures.getSlotCount()).

properties

data table, optional: the table captures.update(properties) takes, applied once the slot is open.

Returns

boolean, true when the slot was opened; nil and a message when it could not be.

captures.save()

Writes the track to the card and claims the slot, leaving it open - so a script can play what it has built and carry on editing. A new file is written and the row made to point at it before the old file is taken away, so a save that fails leaves the capture as it was.

Returns

boolean, true when the capture was written.

captures.close()

captures.save(), then release the slot. The slot is released either way, so a false means the work is gone - check it, or save first and close after.

Returns

boolean, true when the capture was written.

captures.cancel()

Releases the slot, throwing away everything written since the last save.

captures.isOpen()

Two values, or nothing at all - the same shape captures.getPlaying() answers in.

Returns

the bank and the slot of the capture open for writing, or nil.

captures.get()

Called with no arguments, describes the capture open for writing rather than a stored row - which the stored row cannot, the edit not being on the card yet. Raises when nothing is open.

It carries the fields of a capture plus tempo (BPM), timeSignature (a { numerator, denominator } pair), length (quarter notes), events (how many events the track holds - the file's own meta events counted in, so it is larger than captures.getEventCount()) and modified (true when there is unsaved work).

ticks

integer, file ticks from the head of the track.

captures.getPosition()

channel

integer, a MIDI channel (1 .. 16).

note

integer, a note number (0 .. 127).

velocity

integer, 0 .. 127 - but see below: use 1 .. 127.

length

number, the note's length in quarter notes. Greater than zero.

number, optional: where it starts, in quarter notes. Defaults to the write position, which it does not move.

Returns

integer, integer — the ids of the note on and the note off; nil and a message when the capture is full.

captures.addEvent(message [, at])

The other half of captures.getEvents(): a table that came out of one capture goes into another unchanged, its port included. An interface field is ignored - the destination belongs to the capture, and port is measured against it.

The table needs a type; everything else follows from it. A channel voice message takes its channel (1 .. 16, default 1) and either the named fields of its type (noteNumber, velocity, controllerNumber, value, ...) or the raw data1 and data2, which win where both are present. A system real time message - CLOCK, START - needs nothing else. A SysEx message (type = SYSEX) needs data: the body as a string, without the leading F0 and trailing F7, at most 481 bytes.

Raises when the table has no type, when a SysEx event has no data, and when the SysEx body is too long.

Parameters

message

data table, a midiMessage of the shape midi.onMessage() and captures.getEvents() hand over. Its type field is required.

number, optional: where it goes, in quarter notes. Defaults to the write position.

Returns

integer, the new event's id; nil and a message when the capture is full.

captures.getEvents([filter])

Every event the filter accepts, in time order. The tables carry the fields midi.onMessage() hands over - so what comes out goes straight into midi.sendMessage(), out of a socket or into another capture - plus the fields an event in a track has:


`id`	the event's id, which `getEvent()`, `setEvent()` and `removeEvent()` take
`at`	where it is, in quarter notes from the head of the track
`tick`	the same position on the track's own grid
`type`	the message type, without its channel - `NOTE_ON`, `CONTROL_CHANGE`, `CLOCK`, `SYSEX`
`channel`	1 to 16, for a channel voice message
`port`	the port it plays out of
`interface`	the interface that port is on - the capture's own destination
`data1`, `data2`	the raw data bytes, always present for a channel voice message

plus the named fields of its type, as midi.onMessage() gives them: noteNumber and velocity, controllerNumber and value, programNumber, pressure, position, songNumber. A pitch bend's value is the whole fourteen bit number. A SysEx event carries data - the body as a string, without the F0 and the F7.

The array is built in the Lua heap, so a script reading a long capture a bar at a time - { from = 0, to = 4 } - asks for far less than one reading the lot; captures.getEventCount() answers how many there are without building any of them. Meta events - the tempo, the time signature, whatever wrote the file left in it - are not shown: they are kept across a load and a save, and the ones worth changing are in the property table.

One shape does not round-trip: a SysEx event's body arrives as data, which captures.addEvent() takes but midi.sendMessage() does not - send it with midi.sendSysex(interface, port, event.data) instead.

Parameters

filter

data table, optional. See the filter table below.

Returns

data table, an array of midiMessage tables in time order.

captures.getEvent(id)

Parameters

integer, an event id.

Returns

data table, a midiMessage table, or nil.

captures.getEventCount([filter])

Parameters

filter

data table, optional.

Returns

integer, how many events the filter accepts.

captures.getNotes([filter])

The note ons the filter accepts, each paired with the note off that ends it: id, offId, at, tick, length, channel, note and velocity. This is what a piano roll draws and what a step in a sequencer is.

A note that is never released has no length and no offId: it is in the track, and a script is entitled to know that rather than be handed a length that was guessed at. The same note struck twice before being released is ended by the first note off, the way a synth stacks them.

integer, the id of a note on.

Returns

boolean, true when the note was removed.

captures.removeEvent(id)

Parameters

integer, an event id.

Returns

boolean, true when the event was removed.

captures.removeEvents([filter])

captures.removeEvents({ channel = 3 }) takes one channel out of a sixteen channel pattern; with no filter it empties the track but keeps how it is notated.

Parameters

filter

data table, optional. With none, every event.

Returns

integer, how many events were removed.

captures.clear()

Everything: the events, and the tempo, the time signature and the length with them - the track goes back to what captures.open() gives an empty slot, at 120 BPM in 4/4 with no length.

So clear first, then set the properties. A script that opens a slot with { tempo = 100, length = 4 } and clears it afterwards has neither. Use captures.removeEvents() to empty a track and keep how it is notated.

The filter table

One shape serves getEvents(), getNotes(), getEventCount() and removeEvents(), so a selection a script can describe can be read, counted and removed. An absent field matches everything.

field	meaning
`channel`	a MIDI channel (1 .. 16), or an array of them
`from`, `to`	quarter notes, half open: `to` is not included, so two bars asked for one after the other neither overlap nor leave a tick out
`note`	a note number, or a `{ low, high }` pair
`type`	a message type - `NOTE_ON`, `CONTROL_CHANGE` - or an array of at most eight of them
`port`	the port the event plays out of, resolved against the open capture's interface

Two things about channel and note are worth knowing. Asking for either takes the system messages out with them - clock, SysEx and song position carry no channel, so a filter that names one cannot accept them. And note does not by itself exclude anything that is not a note: it narrows note on, note off and poly pressure, and lets a control change on the same channel through. Add type when only notes are wanted.

Example: writing a bar, and reading it back

lua

-- Writes four notes on the beat of bank 1 slot 1, then plays the bar out of
-- a socket.
--
-- clear() comes before the properties, not after: it takes the tempo, the
-- time signature and the length with the events.

captures.open(1, 1)
captures.clear()
captures.update({ name = "Scale", tempo = 120, length = 4, loop = true,
                  interface = USB_DEV, port = PORT_1 })

for beat = 0, 3 do
    captures.addNote(1, 60 + beat, 100, 0.25, beat)
end

if not captures.save() then
    info.setText("The capture could not be written")
end

for _, note in ipairs(captures.getNotes({ channel = 1 })) do
    print(note.note .. " at " .. note.at .. " for " .. note.length)
end

for _, event in ipairs(captures.getEvents({ from = 0, to = 1 })) do
    midi.sendMessage(USB_DEV, PORT_1, event)
end

captures.close()
captures.play(1, 1)

Example: a step sequencer's pattern

lua

-- Sixteen steps of a sixteenth note each, in bank 1 slot 1, kept as a
-- capture rather than played by a timer: the firmware's own player is far
-- steadier than anything a script can do.
--
-- The pattern is edited in place while it plays. Everything below assumes a
-- slot is open, which is why every handler calls ensureOpen() first: the
-- editor is one resource for the whole controller, and anything else - a
-- lua exec, another preset - can take it.

local bank, slot = 1, 1
local channel = 1
local stepLength = 0.25            -- a sixteenth note
local steps = 16

function ensureOpen ()
    local openBank, openSlot = captures.isOpen()

    if openBank == bank and openSlot == slot then
        return (true)
    end

    return (captures.open(bank, slot) == true)
end

function preset.onReady ()
    if not ensureOpen() then
        info.setText("Capture 1:1 is busy")
        return
    end

    captures.clear()
    captures.update({ name = "Pattern", tempo = 120,
                      length = steps * stepLength, loop = true,
                      interface = USB_DEV, port = PORT_1 })
    captures.save()
end

-- Is there a note on this step?
function noteAt (step)
    local from = step * stepLength
    local found = captures.getNotes({ channel = channel,
                                      from = from, to = from + stepLength })

    return (found[1])
end

-- Toggle a step, and keep it playing: the change is heard on the pass the
-- playhead reaches it, with no restart.
function toggleStep (step, note)
    if not ensureOpen() then
        return
    end

    local existing = noteAt(step)

    if existing then
        captures.removeNote(existing.id)
    else
        captures.addNote(channel, note, 100, stepLength * 0.9,
                         step * stepLength)
    end

    captures.save()                -- keeps it on the card; playing is unaffected
end

-- A fifth up, every note of the pattern. setNote() moves the note off with
-- the note on; setEvent() on the note on alone would strand it.
function transpose (semitones)
    if not ensureOpen() then
        return
    end

    for _, note in ipairs(captures.getNotes({ channel = channel })) do
        captures.setNote(note.id, { note = note.note + semitones })
    end

    captures.save()
end

-- Assign this as the Function of a pad's value.
function playPad (valueObject, value)
    if captures.isPlaying(bank, slot) then
        captures.stop(bank, slot)
    else
        captures.play(bank, slot)
    end
end

Example: playing captures from a keyboard

lua

-- Plays one capture per incoming note, transposed to the note played.
-- The note-to-slot mapping starts at C3.
--
-- midi.onNoteOn is handed (midiInput, channel, noteNumber, velocity) - four
-- arguments, not a message table - and it has to be defined at the top level
-- of the script to be registered at all.

function midi.onNoteOn (midiInput, channel, noteNumber, velocity)
    local slot = noteNumber - 48 + 1

    if slot >= 1 and slot <= captures.getSlotCount() then
        captures.transposeTo(noteNumber)
        captures.play(slot)
    end
end

Snapshot and capture data structures

snapshot

The snapshot data table describes one stored snapshot, as snapshots.get() and snapshots.getSlots() return it.

bank - integer, the bank the snapshot is in (1 .. snapshots.getBankCount()).
slot - integer, the slot it occupies (1 .. snapshots.getSlotCount()).
name - string, the name shown on the pad.
colour - integer, the pad colour (see Globals).

Example

lua

snapshot = {
    bank = 1,
    slot = 4,
    name = "Verse",
    colour = BLUE
}

capture

The capture data table describes one stored capture, as captures.get() and captures.getSlots() return it. Every field except bank and slot can be changed with captures.update(); the last five are the playback settings.

bank - integer, the bank the capture is in (1 .. captures.getBankCount()).
slot - integer, the slot it occupies (1 .. captures.getSlotCount()).
name - string, the name shown on the pad.
colour - integer, the pad colour (see Globals).
interface - integer, the MIDI interface it plays back through (see Globals).
port - integer, the port it plays back through (see Globals).
syncToClock - boolean, true when playback follows incoming MIDI clock instead of the file's own tempo.
loop - boolean, true when playback starts again from the top at the end.
rootNote - integer, the note the capture is taken to have been played at. Transposition is measured from here. 60 (middle C) unless it was changed.

Example

lua

capture = {
    bank = 1,
    slot = 2,
    name = "Bassline",
    colour = PURPLE,
    interface = MIDI_IO,
    port = PORT_1,
    syncToClock = true,
    loop = true,
    rootNote = 36
}

captures.get() called with no arguments describes the capture open for writing instead, and carries five more fields:

tempo - number, the tempo the track is notated at, in BPM.
timeSignature - data table, a { numerator, denominator } pair.
length - number, how long the track is, in quarter notes. This is where its end of track marker sits, which is not necessarily where its last event is.
events - integer, how many events the track holds, the file's own meta events counted in.
modified - boolean, true when there is work that has not been saved.

lua

openCapture = {
    bank = 1,
    slot = 1,
    name = "Pattern",
    colour = PURPLE,
    interface = USB_DEV,
    port = PORT_1,
    syncToClock = false,
    loop = true,
    rootNote = 60,
    tempo = 120.0,
    timeSignature = { 4, 4 },
    length = 4.0,
    events = 34,
    modified = true
}

bank

The bank data table describes one snapshot or capture bank, as snapshots.getBanks() and captures.getBanks() return them. Every bank is listed, whether or not the user has named it.

bank - integer, the bank number, counting from 1.
name - string, the name to show. "Bank n" for a bank the user has not named.
named - boolean, true when the user chose this name, false when it is the default.

Example

lua

bank = {
    bank = 2,
    name = "Chorus",
    named = true
}

Drawing in a custom control

A control of type custom has no appearance of its own. It is a rectangle on the page that the script draws, using the graphics module, and it is the only place the module may be used.

The script hands the control a function with control:setPaintCallback(), and the firmware calls that function with the control as its only argument every time the control is repainted. The same page also documents the callbacks that answer the control's gestures - setTouchCallback(), setPotCallback(), setPotTouchCallback() and setSwitchCallback().

What a paint callback can rely on:

Coordinates are the control's own. 0, 0 is the top left corner of the control, wherever it sits on the page, and control:getBounds() gives its width and height. Nothing is drawn outside the control: the drawing is clipped to its rectangle.
The area is already cleared to black when the callback starts. There is no need to fill it first, and graphics.setBackgroundColor() only has to be told about a different background when the text is being printed over something the script filled in itself.
Coordinates must be whole numbers. Every drawing function except graphics.drawArc() reads its numbers with the integer rule, so 10.5 raises an error rather than rounding. A computed position needs math.floor() - or Lua's // - before it is passed in. Negative coordinates are not clipped either; they wrap to a very large number and draw somewhere unexpected.
It runs on the display thread, not the application thread the rest of the script runs on, and while it runs nothing else on the screen is drawn. Keep it short: compute in a timer or a callback, and let the paint function only draw what was computed.
It shares the preset's Lua lock with everything else in the script. If the lock cannot be taken within 20 ms - because a timer tick, a MIDI callback or a helpers.delay() is holding it - the frame is given up and the control keeps the picture it already had. A script that freezes its own screen is almost always holding the lock too long somewhere else.

A custom control is not repainted because a value changed: nothing knows what the script drew. Ask for a repaint with control:repaint() when what it draws has changed.

Example

A custom control drawing a level meter: a bar that fills from the left, a tick at the loudest level seen, and the value printed over it. The level arrives by MIDI, and the control is repainted only when it changes.

lua

local level = 0          -- 0 .. 127, what the meter shows
local peak = 0           -- the highest level seen since the last reset
local meter = nil        -- the custom control

function preset.onReady()
    meter = controls.get(20)

    meter:setPaintCallback(function (control)
        local bounds = control:getBounds()
        local width = bounds[WIDTH]
        local height = bounds[HEIGHT]
        local colour = control:getColor()

        -- the track the bar runs in
        graphics.setColor(graphics.dim(colour, 0.25))
        graphics.fillRect(0, height - 18, width, 16)

        -- the bar itself, green at the bottom and red at the top
        local filled = (level * width) // 127
        graphics.setColor(graphics.blend(GREEN, RED, level / 127))
        graphics.fillRect(0, height - 18, filled, 16)

        -- the peak tick
        local tick = (peak * width) // 127
        graphics.setColor(WHITE)
        graphics.fillRect(math.min(tick, width - 2), height - 18, 2, 16)

        -- the name, and the value right aligned next to it
        local text = tostring(level)
        graphics.setColor(colour)
        graphics.print(0, 2, control:getName(), width, LEFT, BOLD, SMALL)
        graphics.print(width - graphics.getTextWidth(text, BOLD, SMALL), 2,
                       text, graphics.getTextWidth(text, BOLD, SMALL),
                       LEFT, BOLD, SMALL)
    end)

    -- a click anywhere on the control clears the peak
    meter:setTouchCallback(function (control, event)
        if event.type == CLICK then
            peak = 0
            control:repaint()
        end
    end)
end

function midi.onControlChange(midiInput, channel, controllerNumber, value)
    if meter and (controllerNumber == 7) then
        level = value
        if value > peak then
            peak = value
        end
        meter:repaint()
    end
end

Graphics

The Graphics module provides drawing functions for use within component paint callbacks. Drawing is restricted to the area defined by each component's boundary box.

Every function that draws raises an error when it is called from anywhere but a paint callback - graphics.drawRect: only allowed from a control's paint callback. The display belongs to the thread that paints it, and a script writing to it from a timer or a MIDI handler would corrupt the transfer that thread was in the middle of.

integer, X position of the starting point of the line.

integer, Y position of the starting point of the line.

integer, X position of the ending point of the line.

integer, Y position of the ending point of the line.

graphics.drawRect(x, y, width, height)

Draws the outline of a rectangle starting at the (x, y) coordinates, using the specified width and height.

Parameters

integer, X position of the left-top corner of the rectangle.

integer, Y position of the left-top corner of the rectangle.

width

integer, width of the rectangle.

height

integer, height of the rectangle.

graphics.fillRect(x, y, width, height)

integer, X-coordinate of the first vertex.

integer, Y-coordinate of the first vertex.

integer, X-coordinate of the second vertex.

integer, Y-coordinate of the second vertex.

integer, X-coordinate of the third vertex.

integer, Y-coordinate of the third vertex.

graphics.fillTriangle(x1, y1, x2, y2, x3, y3)

Draws a filled triangle by connecting the three coordinates points (x1, y1), (x2, y2), and (x3, y3) and filling the interior area.

It is the only filled shape with arbitrary corners the display offers, so a polygon is drawn as a fan of these.

Parameters

integer, X-coordinate of the first vertex.

integer, Y-coordinate of the first vertex.

integer, X-coordinate of the second vertex.

integer, Y-coordinate of the second vertex.

integer, X-coordinate of the third vertex.

integer, Y-coordinate of the third vertex.

graphics.drawCircle(x, y, radius)

Draws the outline of a circle centered at (x, y) coordinates with the specified radius.

Parameters

integer, X-coordinate of the center of the circle.

integer, Y-coordinate of the center of the circle.

radius

integer, radius of the circle.

graphics.fillCircle(x, y, radius)

Draws a filled circle centered at (x, y) coordinates with the specified radius.

Parameters

integer, X-coordinate of the center of the circle.

integer, Y-coordinate of the center of the circle.

radius

integer, radius of the circle.

graphics.drawEllipse(x, y, radiusX, radiusY)

Draws the outline of an ellipse centered at (x, y) coordinates with the specified horizontal and vertical radius.

Parameters

integer, X-coordinate of the center of the ellipse.

integer, Y-coordinate of the center of the ellipse.

radiusX

integer, horizontal radius of the ellipse.

radiusY

integer, vertical radius of the ellipse.

graphics.fillEllipse(x, y, radiusX, radiusY)

Draws a filled ellipse centered at (x, y) coordinates with the specified horizontal and vertical radius.

Parameters

integer, X-coordinate of the center of the ellipse.

integer, Y-coordinate of the center of the ellipse.

radiusX

integer, horizontal radius of the ellipse.

radiusY

integer, vertical radius of the ellipse.

graphics.fillCurve(x, y, radius, segment)

Draws a filled circular segment (curve) centered at (x, y) coordinates with the specified radius and segment. Four of them make a rounded corner that fillRoundRect cannot, because each can be a different colour.

The segment is passed straight to the display, which is not checked, so a number that is not one of the four constants draws nothing useful rather than raising.

Parameters

integer, X-coordinate of the center of the curve.

integer, Y-coordinate of the center of the curve.

radius

integer, radius of the curve.

segment

enum, segment of the circle to be drawn [TOP_LEFT, TOP_RIGHT, BOTTOM_LEFT, BOTTOM_RIGHT].

graphics.setBackgroundColor(color)

Tells the text renderer what it is drawing onto. Text is anti-aliased, and the partly covered pixels at the edge of a glyph are mixed with the background on the fly, so printing over a color this does not match gives the text a fringe in the wrong one. It defaults to black, which is what a control is cleared to, so this is only needed when you have filled the area with something else.

Parameters

color

integer, the colour as a 24-bit RGB value.

graphics.print(x, y, text, width, alignment [, fontface, size, spacing])

Prints text starting at the (x, y) position, using the specified width and alignment. The text is drawn anti-aliased in the color set by graphics.setColor.

The three trailing arguments are optional. They are checked rather than guessed at, so naming a size or a face that does not exist raises an error at the call rather than drawing something arbitrary. The alignment is the one argument that is not checked.

The four sizes are SMALL (12 px), MEDIUM (17 px), LARGE (23 px) and HUGE (47 px), each in a REGULAR and a BOLD weight. The size is the height of one line, so it is also what to step y by when printing more than one.

width and alignment position the string; they do not clip it. A string longer than the box runs past its edge.

MONOSPACED advances every character by the width of the widest one in the face, so a value that changes does not shuffle the characters around it. It is noticeably wider than PROPORTIONAL, because it has to leave room for a W.

Parameters

integer, X-coordinate where the text box starts.

integer, Y-coordinate of the top of the line.

text

string, the text to be printed.

width

integer, the width of the box where the text is printed.

alignment

enum, text alignment inside the box [LEFT, CENTER, RIGHT]. Not checked: any other number is taken as LEFT.

fontface

enum, optional, the weight to draw in [REGULAR, BOLD]. Defaults to REGULAR.

size

enum, optional, the text size [SMALL, MEDIUM, LARGE, HUGE]. Defaults to MEDIUM.

spacing

enum, optional, how far each character advances [PROPORTIONAL, MONOSPACED]. Defaults to PROPORTIONAL.

graphics.getTextWidth(text [, fontface, size, spacing])

Measures a string in the face graphics.print() would draw it in, so two strings can be laid side by side, a badge sized to its label, or a string truncated with an ellipsis to fit a box.

Parameters

text

string, the text to measure.

fontface

enum, optional, the weight [REGULAR, BOLD]. Defaults to REGULAR.

size

enum, optional, the text size [SMALL, MEDIUM, LARGE, HUGE]. Defaults to MEDIUM.

spacing

enum, optional, [PROPORTIONAL, MONOSPACED]. Defaults to PROPORTIONAL.

Returns

A darker shade of a colour. It is the controller's own arithmetic - the same that tints a group from its overlay - so a script asking for a dimmer shade gets the shade the panel would have drawn.

It only darkens. A factor above 1 does not brighten: a channel that goes past 255 wraps and the colour comes back wrong. To brighten, blend towards WHITE with graphics.blend().

Parameters

color

integer, a 24-bit RGB colour.

factor

number, what to multiply each channel by. 0.5 is half as bright; 1 is unchanged. A negative factor raises.

Returns

integer, the darkened colour.

graphics.blend(from, to, position)

Mixes two colours, each channel on its own.

Parameters

from

integer, a 24-bit RGB colour.

position

number, 0 .. 1, how far from the first colour to the second. Clamped, so a value outside the range gives one of the two ends.

Returns

integer, the colour that far between the two.

These five may be called from anywhere

Unlike the drawing functions, getTextWidth, getTextHeight, rgb, dim and blend compute a number and draw nothing, so they are allowed outside a paint callback. A preset can work its palette and its layout out once, when it loads, rather than per frame.

Window

The Window module gives you control over the graphic component repainting process.

The suspend is a single switch for the whole controller, not one per preset: a window.stop() in one preset stops the repainting of everything, and it stays stopped until something resumes it. Firmware transitions - a popup opening, a page sliding in, the preset list - call resume() themselves, so a stop() that is never matched with a resume() ends the moment the user touches something, which is worse than either state. Always pair them.

Functions

window.repaint()

Repaints the window that is on the screen, with every component in it. To repaint one control rather than the whole screen, use control:repaint().

window.stop()

Stops automatic repainting of components. This helps when updating many controls at once. By using window.stop() before and window.resume() after your updates, you can speed up the process and display all changes together.

The repaint requests the updates make are not lost while it is stopped: they queue up, and are drawn when repainting resumes.

window.resume()

Resumes the process of automatic repainting of components. Everything that asked to be repainted while it was stopped is drawn in the next pass, which is what makes a batch of changes appear together.

It does not force a repaint of anything that did not ask for one. A script that has changed something the firmware does not know about - what a custom control draws, say - follows it with window.repaint() or control:repaint().

Example

lua

-- Twenty controls moved and recoloured, drawn in one pass rather than twenty

window.stop()

for id = 1, 20 do
    local control = controls.get(id)
    control:setSlot(id)
    control:setColor(id <= 10 and BLUE or ORANGE)
end

window.resume()

Controller

The controller module answers questions about the instrument the script is running on: which model it is, which firmware it has, how long it has been running, how much memory the script is using, and what is plugged into the USB host port. It also holds the two compatibility checks a preset uses when it needs a feature that older firmware does not have.

model

number, the model the preset needs: MODEL_MK2, MODEL_MINI, or MODEL_ANY for either of them.

minimumVersion

string, the lowest firmware version that will do, written as three numbers separated by dots, for example '5.0.0'.

Returns

boolean, true when this controller meets the requirement.

controller.isRequired(model, minimumVersion)

The same check as controller.require(), without the log line. Use it to choose between two ways of doing something rather than to refuse to run.

Argument types are still checked: a wrong type raises.

Parameters

model

number, the model the preset needs: MODEL_MK2, MODEL_MINI, or MODEL_ANY for either of them.

minimumVersion

string, the lowest firmware version that will do, written as three numbers separated by dots.

Returns

boolean, true if the requirements are met.

Example

lua

-- Stop the script when the instrument cannot run it
assert(
    controller.require(MODEL_ANY, "5.0.0"),
    "firmware 5.0.0 or newer is required"
)

-- Or choose a behaviour instead of refusing to run
if controller.isRequired(MODEL_MK2, "5.0.0") then
    print("twelve knobs")
else
    print("eight knobs")
end

-- What this instrument is
print("model: " .. controller.getModel())               --> model: mk2
print("numeric model: " .. controller.getNumModel())    --> numeric model: 2
print("firmware: " .. controller.getFirmwareVersion())  --> firmware: v5.0.0c
print("numeric firmware: " .. controller.getFirmwareNumVersion())
                                                        --> numeric firmware: 500000000
print("uptime: " .. controller.uptime() .. " ms")
print("lua heap: " .. controller.memory().luaKb .. " kB")

-- Timing a piece of work
local started = controller.micros()
local total = 0
for i = 1, 1000 do total = total + i end
logger.write("the loop took %d us", controller.micros() - started)

lua

-- Find a controller on the USB host port, and the port its control cable
-- landed on. A device often has one cable for its keyboard and another for
-- everything else, and they are routed independently.

function findSurface(productName, cableName)
    for _, device in ipairs(controller.getUsbHostDevices()) do
        if string.find(device.product:upper(), productName:upper(), 1, true) then
            for _, cable in ipairs(device.cables) do
                if string.find(cable.name:upper(), cableName:upper(), 1, true) then
                    return device, cable.port
                end
            end
        end
    end
end

local device, port = findSurface("Launchpad", "MIDI")

if port then
    print(device.product .. " is on port " .. port)
else
    print("no Launchpad attached")
end

Try it yourself

🚀

Controller module demo

Helpers

The helpers module consists of helper functions to make handling of certain common situations easier: placing controls on the page grid, moving a number from one range to another, and reading or writing a MIDI value in signed notation.

Functions

helpers.delay(millis)

Waits for the given number of milliseconds before the script continues.

Parameters

millis

integer, how long to wait, 1 .. 5000 milliseconds. A value outside that range, or one with a fraction, raises an error.

delay() blocks this preset completely

The wait holds the preset's Lua lock for its whole length. Nothing else of this preset's script runs meanwhile: no timer tick, no MIDI callback, no scheduled function, and no paint callback - a custom control whose paint cannot take the lock within 20 ms keeps the frame it already had, so the screen freezes where it stands.

Other presets, MIDI routing and MIDI output are not affected: they do not take this lock. But a one second helpers.delay() is one second of this preset doing nothing at all. To do something later, use schedule.after() or midi.at(), which let the script return.

helpers.slotToBounds(slot)

Converts a preset slot to a boundary box data table. A slot outside the model's range raises an error.

Parameters

slot

integer, the page slot, counted from one. How many a page has depends on the model - 36 on an Electra One mk2, 12 on a Mini.

Returns

array, an array consisting of x, y, width, height boundary box attributes.

helpers.boundsToSlot({x, y, width, height})

Converts a bounding box to the slot it occupies. Only x and y are read: the question is where the control sits, and its size is whatever the control happens to be.

Bounds that match no slot answer nil rather than a plausible wrong slot. A control placed at bounds of its own is legal in the preset format and is on no slot; a preset that puts something in the wrong place because a helper guessed is very hard to debug.

Parameters

bounds

array, the x, y, width and height of a control, as slotToBounds() returns them or <control>:getBounds() reads them.

Returns

number, the page slot the bounds sit on (1 .. the model's slot count), or nil when they sit on none.

Example

lua

-- Move control to given slot
local control = controls.get(1)
control:setBounds(helpers.slotToBounds(6))

-- And back again
print(helpers.boundsToSlot(control:getBounds()))    --> 6

helpers.clamp(value, low, high)

Holds a value inside a range. Handed the range the wrong way round it still answers inside it, rather than answering the first bound for everything.

Parameters

value

number, the value to hold inside the range.

low

number, one end of the range.

high

number, the other end of the range.

Returns

number, the value, or whichever end of the range it went past.

helpers.map(value, inLow, inHigh, outLow, outHigh)

Moves a value from one range to another along a straight line. The result is clamped rather than extrapolated - a knob past its end is still at its end - and the output range may run downwards. An empty input range raises an error rather than answering a plausible wrong number.

The result carries its fraction: helpers.map(50, 0, 99, 0, 127) is 64.1414..., not 64. Anything that wants a MIDI value wants an integer, so round it - math.floor(x + 0.5) or x // 1 - before passing it to parameterMap.set() or a midi.send* function, which raise on a number with a fraction.

Parameters

value

number, the value to convert.

inLow

number, the low end of the input range.

inHigh

number, the high end of the input range.

outLow

number, the low end of the output range.

outHigh

number, the high end of the output range.

Returns

number, the value moved from the input range to the output range.

helpers.scale(value, inLow, inHigh, outLow, outHigh [, curve])

helpers.map() with a curve. With the curve left out, or set to 1, the two agree exactly, and the note about fractions above applies to both.

Parameters

value

number, the value to convert.

inLow

number, the low end of the input range.

inHigh

number, the high end of the input range.

outLow

number, the low end of the output range.

outHigh

number, the high end of the output range.

curve

number, optional, an exponent applied to the position before it is spread over the output range. Above 1 the low end gets more of the travel, below 1 the high end does. Defaults to 1, a straight line.

Returns

number, the value moved from the input range to the output range along the curve.

Example

lua

-- A knob's 0 .. 127 as a cutoff in Hz, with the low end spread out
local hz = helpers.scale(midiValue, 0, 127, 20, 20000, 3)

-- Never past the ends, whatever a script computes
local velocity = helpers.clamp(velocity * 1.5, 1, 127)

-- A mapped value on its way back to MIDI has to be whole
local midiValue = math.floor(helpers.map(hz, 20, 20000, 0, 127) + 0.5)
midi.sendControlChange(PORT_1, 1, 74, midiValue)

helpers.midiToSigned(midiValue [, bitWidth [, signMode]])

Reads a MIDI value in signed notation. It is the translation a control uses to put a signed value on the display, so the number is the one the Electra would show. A control then also holds the number inside its own min and max; this function has no control and does not.

With signBit, the MIDI value that sets the sign bit and nothing else (64 in seven bits) reads as 0, as it does on the display.

A MIDI value that does not fit the bit width raises an error, as does a bit width outside 1 .. 14 or any other sign mode. noSign is not a notation - a control without a sign maps its MIDI range onto its display range - and signBit2 and binOffset are relative modes.

Parameters

midiValue

integer, the MIDI value as it travels on the wire (0 .. 2^bitWidth - 1).

bitWidth

integer, optional, how many bits the value has (1 .. 14). Defaults to 7.

signMode

string, optional, twosComplement or signBit, spelled as in the preset and as <message>:getSignMode() returns it. Defaults to twosComplement.

Returns

integer, the signed number the Electra shows for that MIDI value.

helpers.signedToMidi(value [, bitWidth [, signMode]])

Writes a signed number as a MIDI value, the way a control sends a signed value. It is the inverse of helpers.midiToSigned().

A number the encoding cannot hold is clamped to the nearest one it can, as the Electra clamps it: seven bits hold -64 .. 63 in twosComplement and -63 .. 63 in signBit.

Parameters

value

integer, the signed number to encode.

bitWidth

integer, optional, how many bits the value has (1 .. 14). Defaults to 7.

signMode

string, optional, twosComplement or signBit. Defaults to twosComplement.

Returns

integer, the MIDI value the Electra sends for that number.

Example

lua

-- Seven bits, two's complement
helpers.midiToSigned(127)                -- -1
helpers.signedToMidi(-64)                -- 64

-- A 14-bit NRPN with a sign bit
helpers.signedToMidi(-100, 14, "signBit") -- 8292

-- Whatever a signed control's message says. Only twosComplement and signBit
-- are notations, so ask before converting.
local message = control:getValue("value"):getMessage()
local mode = message:getSignMode()

if (mode == "twosComplement") or (mode == "signBit") then
    local shown = helpers.midiToSigned(midiValue, message:getBitWidth(), mode)
    print("displayed as " .. shown)
end

JSON

JSON text to and from Lua values, on the same converters persist() and recall() have always used, plus the two things a table cannot say on its own: a null, and whether an empty table is an array or an object.

The persistence a preset already has - persist(table) writes the table to the preset's own data file and recall(table) fills a table from it - gains a string form of the same file, so a script that keeps its configuration as text can work on it with this module.

How a Lua table becomes JSON:

A table whose keys are exactly 1 .. n is an array. Any other table is an object, and its keys that are not strings are dropped, with a line in the log. An empty table is an array, unless it is marked with json.object().
Arrays go out in index order. The length is the largest integer key, so a marked array with holes writes the holes as null.
Strings stay strings, even numeric-looking ones: "43" goes out as "43".
Integers go out without a decimal point, other numbers with one.
A function, a userdata other than json.null, and nil all become null.

Functions

json.encode(value [, options])

Writes a Lua value as JSON, by the rules above.

The document it builds starts at 4 kB and doubles until the value fits. A value that needs more than 512 kB raises an error rather than writing a truncated document.

Parameters

value

any, a table or a scalar.

options

table, optional. pretty = true for indented output.

Returns

string, the JSON text.

json.decode(text [, capacity])

An object or an array becomes a table, a null becomes json.null, and the rest become what they are: a string, a boolean, an integer, or a number with a fraction.

An empty array comes back marked as one, so it goes out as one again. An empty object does not carry a mark, so json.decode("{}") re-encodes as [] unless it is marked with json.object() first.

Raises when the text will not parse, and when it needs more than the capacity given. A capacity outside 0 .. 524288 raises too.

Parameters

text

string, JSON.

capacity

integer, optional, 0 .. 524288. How many bytes of document to allow. Left out or 0, it is worked out from the text and grown as needed.

Returns

any, the value the text holds.

json.null

The value a JSON null decodes to, and encodes from: a table member set to json.null is written as null, where a nil would drop the key.

boolean, true when the value is a table that would be encoded as an object.

persistJson(text)

Writes the text to the preset's data file - the same file persist() writes, so the last write wins. The text has to parse, or nothing is written and the call raises.

A global function, not part of the json module.

Parameters

text

string, JSON.

Returns

boolean, true when the file was written.

recallJson()

The same file recall() reads, as text. A global function, like persistJson().

Returns

string, the data file's text, or nil when the preset has never persisted anything.

Example

lua

-- A JSON round trip, with the two things a table cannot say on its own

local settings = {
    name = "Bass",
    channel = 3,
    cutoff = 64,
    tags = { "mono", "lead" },
    macros = json.object({}),      -- empty, and an object
    comment = json.null            -- written as null, not dropped
}

local text = json.encode(settings)
print(text)
--> {"channel":3,"tags":["mono","lead"],"macros":{},"comment":null,
-->  "cutoff":64,"name":"Bass"}
-- The members of an object come out in whatever order the Lua table hands
-- them over; an array's elements keep their index order. Pass
-- { pretty = true } for indented output.

local decoded = json.decode(text)

print(decoded.name)                      --> Bass
print(decoded.channel + 1)               --> 4
print(#decoded.tags)                     --> 2
print(json.isObject(decoded.macros))     --> false, an empty object loses its mark
print(decoded.comment == json.null)      --> true

-- The same data as the preset's own file
persistJson(text)
print(recallJson() == text)              --> true

Logger

Logging is a key element for understanding what is happening inside the controller. The Electra One Lua API provides the print() function and the logger module, which send text messages that can be viewed in the Electra One web application. Log messages created by a script are always prefixed with lua: text.

In fact, these log messages are SysEx messages sent to the CTRL port. They include both a timestamp and the text of the message. For more details about console logs, please review Electra One’s MIDI implementation.

Because logging uses standard SysEx messaging, users can create their own log viewers or integrate Electra logs into their own applications.

The logger output can be enabled or disabled. By default, the logger is disabled for performance reasons, and the controller's own log messages are not sent. Messages written by a Lua script are the exception: they are sent whether the logger is enabled or not. For more information on how to manage the logger, see the section on enabling and disabling logging.

A log message holds 193 characters of text; anything longer is cut off. Every character outside printable ASCII - a tab, a newline, an accented letter - is replaced with # before the message is sent.

Functions

print(text)

A function to print text to the Electra One web application Console log view.

Parameters

text

any, a value to be displayed. Anything that is not a string is converted the way tostring() converts it.

logger.write(format, ...)

Writes one formatted message to the log, however many values go into it. The format works the way string.format() does and gives the same text:

%d and %i - an integer; %u, %o, %x and %X - an integer as unsigned, octal or hexadecimal; %c - the character with that code.
%f, %e, %g and %a (and their upper case forms) - a number.
%s - any value, converted the way tostring() converts it, so nil, booleans and objects with a __tostring metamethod are written too.
%% - a percent sign.

A conversion can carry flags (-, +, space, #, 0), a width and a precision of up to two digits each, as in %-8s or %6.2f. A value that does not suit its conversion, a missing value, or a conversion that is not listed raises an error, and nothing is written. Values beyond the ones the format uses are ignored.

The message is written at the Lua log level, the level print() uses, with the same lua: prefix.

Parameters

format

string, the text of the message, with a conversion such as %d or %s for each value that follows.

...

any, optional, the values the conversions in the format take, in order.

Example

lua

-- Printing to the console log
print("This message will be shown in the ElectraOne console")

for i = 1, 10 do
    print("message #" .. i)
end

-- Several values on one line
logger.write("cutoff %d, resonance %.2f, filter %s", 64, 0.35, "on")
--> lua: cutoff 64, resonance 0.35, filter on

-- A literal percent sign is written twice
logger.write("loaded %d%%", 80)
--> lua: loaded 80%

The Example will produce following output in the Electra One web application Console

Hello world output

Try it yourself

🚀

Logger demo

System

A preset can keep a Lua table on the SD card and read it back the next time it is loaded - the place for a script's own settings, a remembered mode, a bank of user data the preset JSON has no field for.

The file is data.json in the preset's own slot directory (/ctrlv2/slots/bNN/pNN/data.json). One file per slot, written by the preset that calls these functions, so a preset pinned in the background keeps its own data whatever is on the screen. persistJson() and recallJson() above are the same file as text.

The file is written when the script asks and not otherwise: nothing is saved automatically when a preset is left or the controller is switched off.

Functions

persist(table)

Saves a Lua table to the preset's data file, so the data survives the controller being switched off or restarted. The whole file is replaced.

It returns nothing. A missing argument, or one that is not a table, is written to the log and nothing else happens - there is no error to catch.

Parameters

table

table, the data to save. It is written by the JSON rules above, so its keys should be strings or 1 .. n.

recall(table)

Reads the preset's data file back into the table passed in.

Every key of the table is cleared first, so a table of defaults handed to recall() comes back holding only what was saved, not the defaults for the keys the file does not have. To keep defaults, recall into a table of your own and copy across what you find.

It returns nothing. A missing file, a file that will not parse, and a wrong argument are all written to the log and leave the table empty.

Parameters

table

table, the table to fill with the saved data.

yield()

Deprecated. Since firmware 5.0.0 yield() does nothing and returns straight away. Earlier firmware suspended the calling function for a moment to let other tasks run.

It is still there so that scripts calling it keep working, but it should be removed from them. The first time a script calls it after the preset is loaded, the controller writes a message to the log saying where it was called from, for example lua: ctrlv2/slots/b00/p05/main.lua:12: yield() is deprecated and does nothing. Later calls are silent until the preset is loaded again.

yield() is deprecated

Do not use yield() in new scripts. A long loop no longer hands time to other tasks when it calls it; split the work up with timer, schedule or midi.at instead.

Example

lua

-- Remembering a script's own settings across a power cycle

local defaults = { mode = "live", transpose = 0, lastPatch = 1 }
local settings = {}

function preset.onReady()
    local saved = {}
    recall(saved)                        -- clears `saved`, then fills it

    for key, value in pairs(defaults) do -- defaults for what was not saved
        settings[key] = value
    end
    for key, value in pairs(saved) do
        settings[key] = value
    end

    info.setText(settings.mode .. ", patch " .. settings.lastPatch)
end

-- Called from a control, whenever the script has something new to remember
function rememberPatch(valueObject, patchNumber)
    settings.lastPatch = patchNumber
    persist(settings)
end

Registered, but there is no way to make a Message on its own. Read one from a value with value:getMessage() instead.

Returns

nothing; it always raises.

ControlValue(index)

Registered, but there is no way to make a ControlValue on its own. Read one from a control with control:getValue() instead.

Returns

nothing; it always raises.

Globals

The global variables are used to identify common constants that can be used instead of numbers.

Every one of them is a Lua integer. They can be compared with == against the numbers a callback is handed, used as table keys, and printed without a trailing .0.

Hardware ports

Identifiers of the MIDI ports.

PORT_1
PORT_2
PORT_CTRL

Interfaces

Types of MIDI interfaces.

MIDI_IO
USB_DEV
USB_HOST
ALL_INTERFACES
CAPTURE

CAPTURE is not a socket: it is the capture a script has open for writing, and a midi.send* addressed to it is written into that capture's track instead of going out. It is deliberately not part of ALL_INTERFACES, so sending to every interface never writes to a file.

Change origins

Identifiers of the sources of the MIDI value change. Origin is passed as a parameter of the ParameterMap onChange callback.

INTERNAL
MIDI
LUA

Three more origins reach parameterMap.onChange and have no constant of their own: 4 a file being loaded, 5 a remote knob, 6 a second screen. 3, a modulation, never reaches Lua. A script that only wants INTERNAL, MIDI or LUA should test for them rather than test for "not one of the others".

Parameter types

Types of Electra MIDI parameters. These types are higher abstraction of the standard MIDI message types.

PT_VIRTUAL
PT_CC7
PT_CC14
PT_NRPN
PT_RPN
PT_NOTE
PT_PROGRAM
PT_SYSEX
PT_START
PT_STOP
PT_TUNE
PT_ATPOLY
PT_ATCHANNEL
PT_PITCHBEND
PT_SPP
PT_RELCC
PT_NONE

Type 17, the macro, is accepted everywhere these are and has no constant.

Control sets

Identifiers of the control sets. The control sets are groups of controls assigned to the pots.

CONTROL_SET_1
CONTROL_SET_2
CONTROL_SET_3

Pots

Identifiers of the hardware pots. The pots are the rotary knobs to change the control values.

POT_1
POT_2
POT_3
POT_4
POT_5
POT_6
POT_7
POT_8
POT_9
POT_10
POT_11
POT_12

All twelve exist on every model, because the constants are the same everywhere. An Electra One mk2 has twelve knobs; a Mini has eight, and POT_9 to POT_12 address its four pads.

Hardware buttons

Identifiers of the hardware buttons, 1 to 6.

BUTTON_1
BUTTON_2
BUTTON_3
BUTTON_4
BUTTON_5
BUTTON_6

No Lua callback is handed a button identifier, so these are of use only to a script that keeps its own numbering and wants a name for it.

Touch points

Identifiers of the touch points the LCD tracks, 1 to 5.

TOUCH_POINT_1
TOUCH_POINT_2
TOUCH_POINT_3
TOUCH_POINT_4
TOUCH_POINT_5

The id field of a touch callback's event is one of these.

Colors

Identifiers of standard Electra colors.

WHITE
RED
ORANGE
BLUE
GREEN
PURPLE

They are 24-bit RGB numbers - WHITE is 0xFFFFFF, RED is 0xF45C51 - so they can be handed to graphics.setColor() and to graphics.dim() and graphics.blend().

Variants

VT_DEFAULT
VT_HIGHLIGHTED
VT_THIN
VT_VALUEONLY
VT_DIAL
VT_CHECKBOX
VT_BUTTONLIKE
VT_BASELINE

Bounding box

Identifiers of individual attributes of the bounding box (bounds).

X
Y
WIDTH
HEIGHT

Unset MIDI value

MIDI_VALUE_DO_NOT_SEND

The value a message holds when it has nothing to send - a pad that sends something when it is pressed and nothing when it is let go writes this in its off value. It is 16537, which is not a MIDI value of any width, so it can never be mistaken for one.

It is accepted by the setters that build a message and refused by everything that sends: parameterMap.set() and the midi.send* functions take 0 to 16383. <message>:isValueSet() and <value>:isSet() ask the same question without the number.

MIDI message types

Identifiers of standard MIDI messages.

CONTROL_CHANGE
NOTE_ON
NOTE_OFF
PROGRAM_CHANGE
POLY_PRESSURE
CHANNEL_PRESSURE
PITCH_BEND
CLOCK
START
STOP
CONTINUE
ACTIVE_SENSING
RESET
SONG_SELECT
SONG_POSITION
TUNE_REQUEST
TIME_CODE_QUARTER_FRAME
SYSEX

Each is the status byte of that message with the channel cleared: NOTE_ON is 144, CONTROL_CHANGE is 176, SYSEX is 240.

Controller events

Flags indentifying individual types of events.

NONE
PAGES
CONTROL_SETS
USB_HOST_PORT
POTS
TOUCH
BUTTONS
WINDOWS

They are bit flags, meant to be added together and passed to events.subscribe(). TOUCH, BUTTONS and WINDOWS are accepted but run no Lua callback in this firmware.

Touch events

Identifiers of touch events used in the Touch callbacks.

DOWN
MOVE
UP
CLICK
DOUBLECLICK

Control event sources

Identifiers of the gesture a control event callback came from, passed as its source argument.

EVENT_SOURCE_SWITCH
EVENT_SOURCE_TOUCH

Control event types

Identifiers of the edge that ran a control event callback, passed as its event argument. A switch reports press and release, a touch reports begin and end.

EVENT_TYPE_PRESS
EVENT_TYPE_RELEASE
EVENT_TYPE_BEGIN
EVENT_TYPE_END

Curve segments

Identifiers of the curve segments used in the graphics module.

TOP_LEFT
TOP_RIGHT
BOTTOM_LEFT
BOTTOM_RIGHT

Controller models

Identifiers of the Electra One hardware models.

MODEL_ANY - any model
MODEL_MK2 - Electra One mk2
MODEL_MINI - Electra One mini

MODEL_MINI_MK1 is an accepted alias for MODEL_MINI, and MODEL_MK1 is historical: it matches no model this firmware runs on, so controller.require(MODEL_MK1, ...) always fails.

Horizontal alignment

Text alignment modes

LEFT
CENTER
RIGHT

Text faces

Weights graphics.print can draw in

REGULAR
BOLD

Text sizes

Sizes graphics.print can draw in, given as the height of one line

SMALL - 12 px
MEDIUM - 17 px
LARGE - 23 px
HUGE - 47 px

Text spacing

How far each character advances

PROPORTIONAL - each character takes its own width
MONOSPACED - every character takes the width of the widest one

The JSON null

json.null - a field of the json module rather than a global. See JSON above.

Preset Lua extension ​

A brief overview ​

The Lua environment ​

Uploading the scripts ​

Uploading the scripts with the Preset Editor ​

Uploading the scripts with a SysEx call ​

Executing a Lua command with a SysEx call ​

An example of the lua-command-text ​

The structure of the script ​

The setup ​

The standard functions ​

The standard callbacks ​

The user functions ​

Preset initialization ​

Threads and timing ​

Errors and limits ​

Keeping data between sessions ​

Preset Lua Extension API Reference ​

Interfaces and ports ​

The interface argument is optional ​

Running status ​

Example ​

MIDI callbacks ​

When callbacks run ​

The callback queue ​

Returns

Firing order ​

Functions ​

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Receiving only the SysEx you want ​

Parameters

Returns

Example ​

Example 1 ​

Example 2 ​

MIDI functions ​

Functions ​

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Parameters

Example ​

Example ​

Preset Lua extension

A brief overview

The Lua environment

Uploading the scripts

Uploading the scripts with the Preset Editor

Uploading the scripts with a SysEx call

Executing a Lua command with a SysEx call

An example of the lua-command-text

The structure of the script

The setup

The standard functions

The standard callbacks

The user functions

Preset initialization

Threads and timing

Errors and limits

Keeping data between sessions

Preset Lua Extension API Reference

Interfaces and ports

The interface argument is optional

Running status

Example

MIDI callbacks

When callbacks run

The callback queue

Firing order

Functions

Receiving only the SysEx you want

Example

Example 1

Example 2

MIDI functions

Functions

Example

Example

Sending at a precise time

Example

Bytes

Functions

Example

SysexBlock

Blocks a callback gave you

Blocks you build

Functions

Working a run of bytes at a time

Examples

DMX

Functions
